Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE INTAKE AIR TEMPERATURE SENSOR

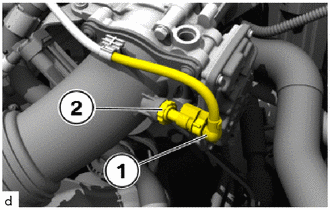

    1. Unlock plug connection (1) and disconnect.
      GTY994500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 17 mm deep socket wrench, Unscrew the intake air temperature sensor (2).
    3. Remove the intake air temperature sensor (2).
