GTS+ Ecu Flash Reprogramming With Security Signature (T-SB-0107-20 REV2)

GTS+ ECU FLASH REPROGRAMMING WITH SECURITY SIGNATURE

TECHNICAL SERVICE BULLETIN

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2025	4Runner HV, Crown Signia, Prius PHV, RAV4 PHV
2022 - 2025	86, Corolla Cross, Tundra HV
2024 - 2025	Grand Highlander, Grand Highlander HV, Highlander, Highlander HV, Land Cruiser, Tacoma, Tacoma HV
2021 - 2025	Mirai, Sienna HV, Tundra, Venza HV
2023 - 2024	Prius Prime
2021 - 2024	RAV4 Prime
2023 - 2025	bZ4X, Corolla, Corolla Cross HV, Corolla HV, Crown, GR Corolla, Prius, Sequoia HV

SUPERSESSION NOTICE

The information contained in this bulletin supersedes Service Bulletin No. T-SB-0107-20.

• Applicability has been updated to include 2025 model year 4Runner Hybrid, 86, bZ4X, Corolla, Corolla Cross, Corolla Cross Hybrid, Corolla Hybrid, Crown, Crown Signia, GR Corolla, Grand Highlander, Grand Highlander Hybrid, Highlander, Highlander Hybrid, Land Cruiser, Mirai, Prius, Prius PHV, RAV4 PHV, Sequoia Hybrid, Sienna Hybrid, Tacoma, Tacoma Hybrid, Tundra, Tundra Hybrid, and Venza Hybrid vehicles.
• The Parts Information section has been removed.
• Required Tools & Equipment and Operation Procedure sections have been updated.

Service Bulletin No. T-SB-0107-20 is obsolete and any printed versions should be discarded.

INTRODUCTION

Flash reprogramming allows the Electronic Control Unit (ECU) software to be updated without replacing the ECU. Flash calibration updates for specific vehicle models/ECUs are released as field-fix procedures described in individual Service Bulletins. This bulletin details the Global Techstream+ (GTS+) ECU flash reprogramming procedures and outlines use of the Technical Information System (TIS) and the Calibration Update Wizard+ (CUW+). To ensure the correct ECU software is installed, ECUs will require a Security Signature before the ECU will initialize the flash reprogramming sequence. This bulletin also details the process for acquiring a Security Signature from TIS during the GTS+ ECU flash reprogramming process.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

REQUIRED TOOLS & EQUIPMENT

SPECIAL SERVICE TOOLS (SST)	PART NUMBER	QTY
DSS-5000 Battery Diagnostic Tool(1)	DSS-5000P T	1
DCA-8000 Battery Diagnostic Tool(1)	DCA-8000P T	1
(1) Essential SST.

REQUIRED EQUIPMENT	SUPPLIER	PART NUMBER	QTY
Techstream ADVi(1)	ADE	TSADVUNIT	1
Techstream 2.0		TS2UNIT
Techstream Lite		TSLITEPDLR01
Techstream Lite (Green Cable)		TSLP2DLR01
(1) Essential SST.

GTS+ PREPARATION

PROCESS OVERVIEW

1. Verify the vehicle's applicability for recalibration and locate the desired calibration file by performing the GTS+ Health Check function.
   NOTE:

   • GTS+ will automatically search TIS for the appropriate Service Bulletin using the current calibration ID from the vehicle if the PC is connected to the network (see the figures below).
   • Calibration file links can be found embedded in the corresponding Service Bulletin.
2. Connect the DCA-8000 battery diagnostic tool using "Power Supply Mode" ONLY.

   The DCA-8000 battery diagnostic tool includes a power supply mode to help maintain battery voltage at 13.5V during ECU reprogramming.

   NOTE:

   • ECU damage may occur if the correct battery charger mode setting is NOT used.
   • Refer to Vehicle Reprogramming Tips for other approved chargers, located at TIS - Diagnostics - Reprogramming - Reference Documents.
   • The battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
   • For details on how to use the battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
3. Locate the appropriate calibration ID and reprogram the vehicle ECU with GTS+. GTS+ uses the CUW+ application to open calibration files and facilitate the ECU flash reprogramming process.
4. Attach the Authorized Modifications Label.

   Modifications to ECU calibrations MUST be recorded and properly displayed on the vehicle using the Authorized Modifications Label.

OPERATION PROCEDURE

1. Verify the vehicle's applicability for recalibration and locate the desired calibration file.
   1. Connect GTS+ and establish a vehicle connection.

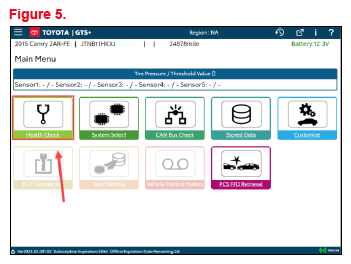

   2. Click the Health Check button on the Main Menu.

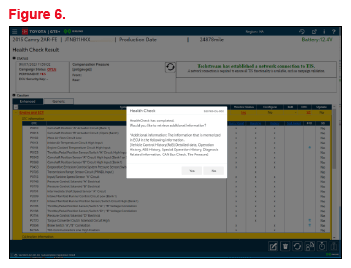

   3. A Health Check completed window opens. To continue, click either Yes or No.
      1. Click Yes to include additional information in the Health Check.
      2. Click No if additional information is NOT desired.

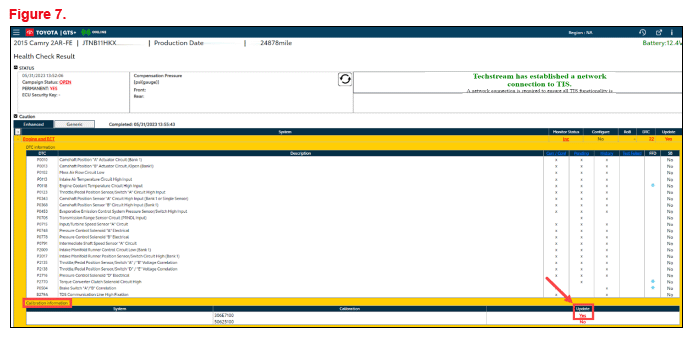

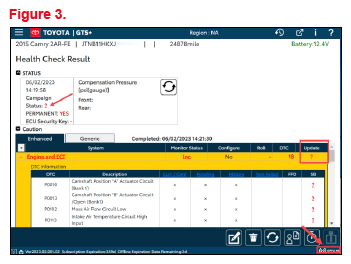

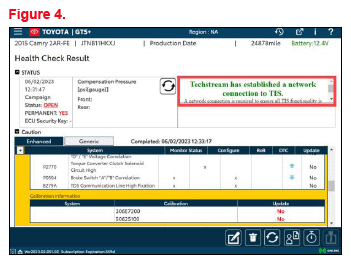

   4. Available calibration updates are indicated by a Yes in the Calibration Update column. Click the Yes link in the calibration information section to access the appropriate Service Bulletin on TIS.
      NOTE:

      • Note ANY DTCs stored in systems that will be flash reprogrammed.
      • Clicking the Yes link will automatically launch TIS and perform a calibration search.

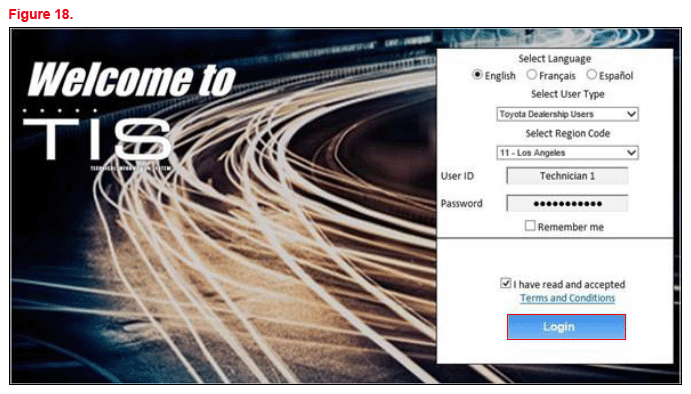

   5. Login to TIS.

      HINT

      If already logged in, skip this step.

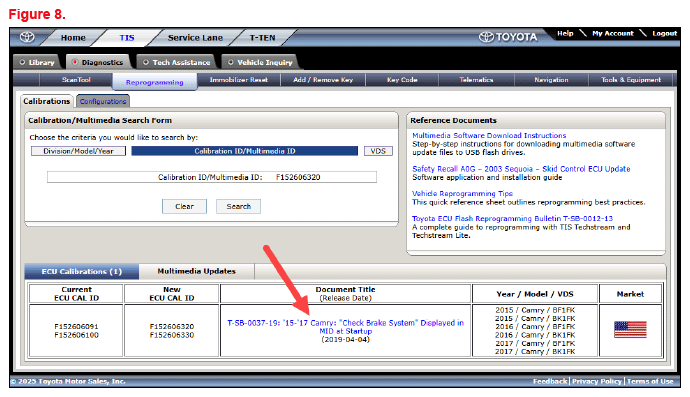

   6. To review the Service Bulletin and access the calibration file, click the Service Bulletin link in the Document Title column of the Calibration Search Result portlet.
      NOTE: ONLY Toyota certified technicians and other authorized users may access calibration files.
2. Connect the DCA-8000 battery diagnostic tool.
   NOTE: Refer to Vehicle Reprogramming Tips  for other approved chargers, located at TIS - Diagnostics - Reprogramming - Reference Documents.
   1. Connect the DCA-8000 battery diagnostic tool to the vehicle and turn it ON.
   2. Select Power Supply Mode.
      NOTE:

      • ECU damage may occur if the correct battery charger and mode setting are NOT used.
      • The battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
      • For details on how to use the battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
3. Click the appropriate calibration ID and reprogram the vehicle's ECU with GTS+.

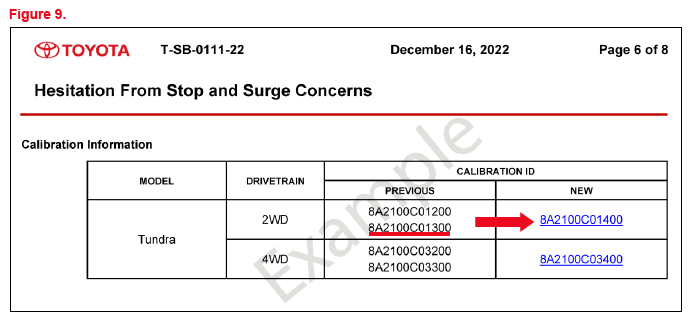

   1. AFTER reviewing the procedures outlined in the selected Service Bulletin, click the appropriate calibration ID link by matching the vehicle's current calibration ID to the Previous Calibration ID in the Calibration Identification Chart.
      NOTE:

      • Calibration files are embedded as live links in the Service Bulletin.
      • Some vehicles require special preparation. Review the selected Service Bulletin carefully.

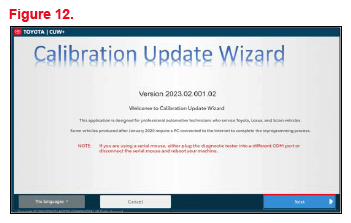

   2. Click Open to load the calibration file information. If prompted to choose GTS or GTS+, select GTS+.
      NOTE:

      • GTS+ downloads calibration files as needed to ensure the latest calibration file is used.
      • Do NOT save calibrations locally on the hard drive or other media for future use.
      NOTE: Errors during the flash reprogramming process can permanently damage the vehicle ECU. Minimize the risk by following the steps below.

      • Battery voltage MUST NOT FALL BELOW 12V during reprogramming. Confirm battery voltage is higher than 12V but be sure voltage DOES NOT RISE ABOVE 16.0V during reprogramming.
      • Turn OFF ALL vehicle accessories (audio system, A/C, interior lights, DRL, etc.).
      • Do NOT add to or significantly change the vehicle's electrical load while reprogramming.
      • Confirm the hood is open and ensure under-hood temperature does NOT exceed 158°F (70°C).
      • Confirm cable connections between the vehicle and Techstream are secure.
      • Do NOT disconnect or turn off Techstream or vehicle ignition during reprogramming.
      • Set the parking brake.
      • Complete ALL flash calibration updates provided for each ECU.
      • If the battery's State-Of-Charge (SOC) or capacity is in question, test with SST No. DSS-5000P T  (Battery Diagnostic Tool), and follow the DSS-5000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics  .
      • The DCA-8000 battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.


      For details on how to use the DCA-8000 battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
   3. Click Next to start the calibration update process.

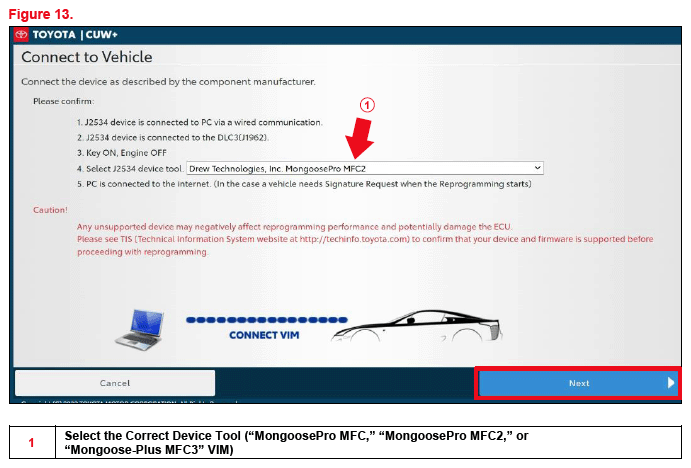

   4. Confirm the following:
      • The PC is connected to VIM.
      • The VIM is connected to DLC3 connector.
      • The Ignition is ON and the engine is OFF or READY-OFF (hybrid vehicles). Then, click Next.

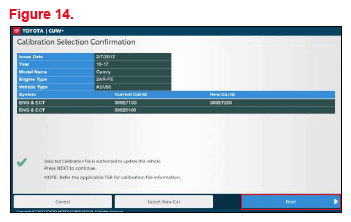

   5. Verify the correct current and NEW calibration information, then click Next.
      NOTE:

      • The total number of calibration IDs in the calibration file corresponds to the number of reprogrammable processors in the ECU.
      • The figure on the right shows an example of the update procedure for a two-processor ECU.

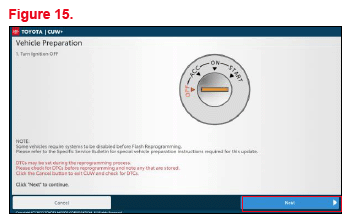

   6. Turn the ignition OFF, click Next, and wait at least 10 seconds before proceeding.

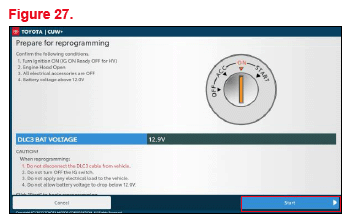

   7. Turn the Ignition ON (IG ON Ready-OFF for hybrid vehicles).

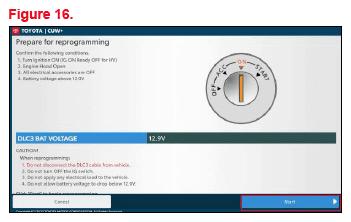

   8. Confirm the following:
      • The PC is connected to VIM.
      • The hood is open.
      • ALL accessories are OFF.
      • Battery voltage is above 12V.
      NOTE: Verify the vehicle is connected to a battery charger before continuing. If battery voltage falls below 12V, ECU damage may occur.

      Then, click Start.

      NOTE: If the key cycle is NOT done properly, reprogramming will fail, and an error message will appear prompting you to restart.
   9. Based on the version of GTS+ being used, please follow the appropriate steps listed below:
      • GTS+ software version 2024.03 or newer, go to sub step P.
      • GTS+ software version 2024.02 or older, continue to sub step J.

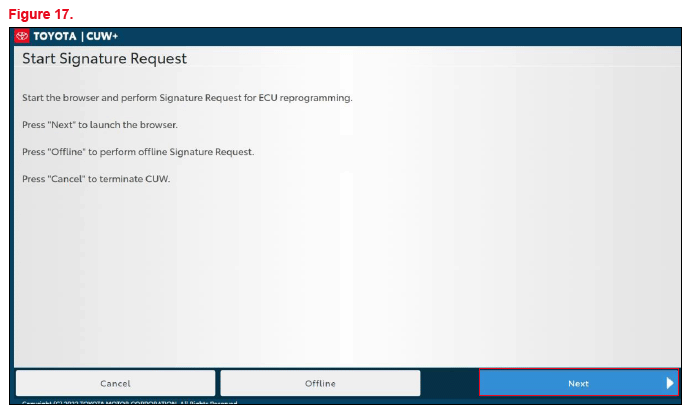

   10. This vehicle is equipped with additional security measures requiring a Signature from TIS. Select Next to open TIS and retrieve the Signature.
   11. Input TIS login credentials and select Login.
   12. Input TIS login credentials for secondary authentication and select Login.
   13. Select Send.
   14. Click Copy to Clipboard to copy the signature from TIS.

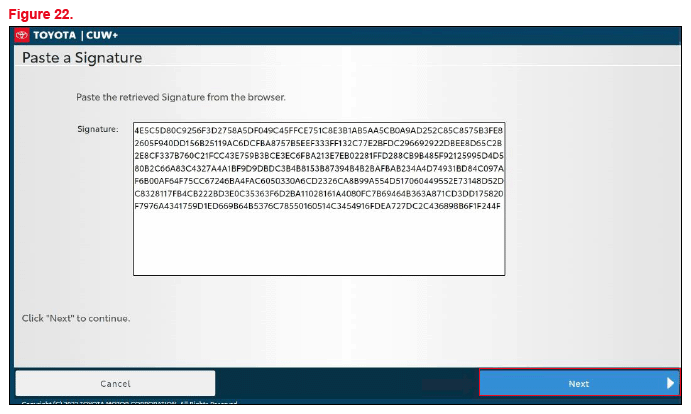

   15. Paste the Signature into CUW+ and select Next.
   16. Select OK to continue.
       NOTE: Sub steps P and Q are ONLY required for GTS+ software version 2024.03 and newer.
   17. Enter your password and select LOG IN to continue

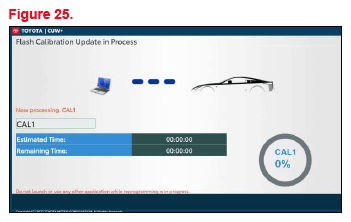

   18. Do NOT disturb the vehicle during flash reprogramming.
       NOTE:

       • ECU flash reprogramming may take 3 - 30 minutes per calibration file.
       • Reprogramming time will vary depending on model and ECU communication protocol. Vehicles using CAN communication protocol will reprogram much faster (2 - 7 minutes).
   19. Does the vehicle require only ONE calibration update?
       • YES  - Go to sub step T.
       • NO  - If the vehicle requires a SECOND calibration update, continue as follows:
         • For serial communication vehicles, continue to sub step T.
         • For CAN communication vehicles, go to sub step V.
   20. When Cal 1 completes the update process, turn the ignition OFF, click Next, and wait a MINIMUM of 10 seconds before proceeding.
   21. Turn the ignition to the ON position, then click Start.
       NOTE: If the key cycle is NOT done properly, reprogramming may fail, and an error message will appear prompting you to restart Cal 2.

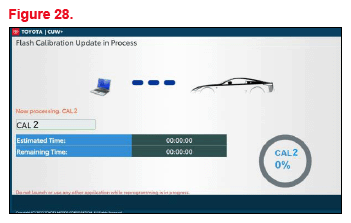

   22. Do NOT disturb the vehicle during flash reprogramming.
   23. Turn the ignition OFF, click Next, and wait a MINIMUM of 10 seconds before proceeding.
   24. Turn the ignition to the ON position, then click Next.
   25. Confirm calibrations were updated and click Finish.
       NOTE: On some models, DTCs may set as a result of reprogramming. If DTCs are present, clear codes and run the Health Check again. Troubleshoot ANY remaining current, pending, or history codes.
       Permanent codes will NOT be cleared using GTS+. Permanent codes do NOT illuminate the MIL and do NOT require troubleshooting. They will clear during normal driving once the Universal Trip Drive Pattern is performed.
