Removal [06/2024 - ]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to REPLACEMENT [06/2024 - ]

  2. REMOVE REAR RADIATOR SIDE AIR GUIDE PLATE LH

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 18

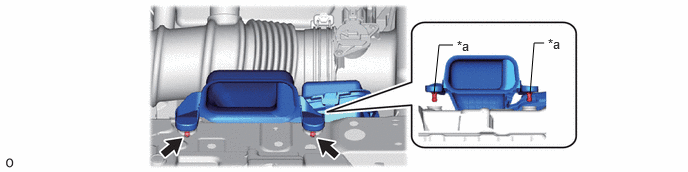

  4. REMOVE INLET AIR CLEANER ASSEMBLY
    1. GTY1153337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin - -

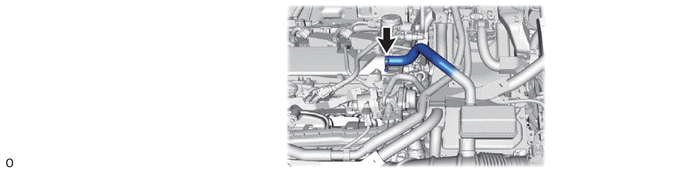

  5. DISCONNECT NO. 2 VENTILATION HOSE
    1. GTY1152038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

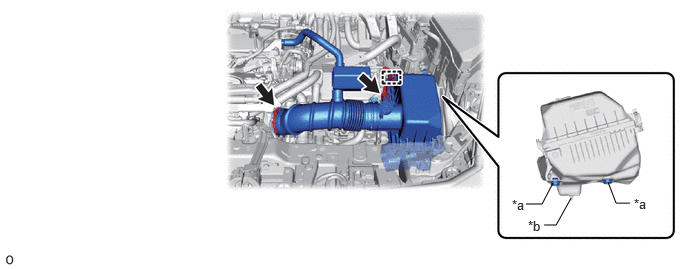

  6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. GTY1148742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Pin

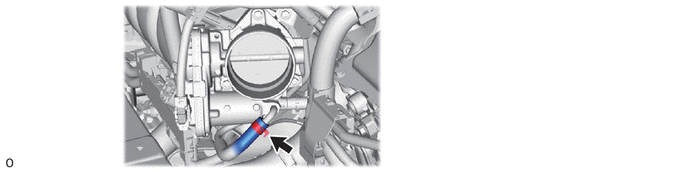

  7. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1140285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

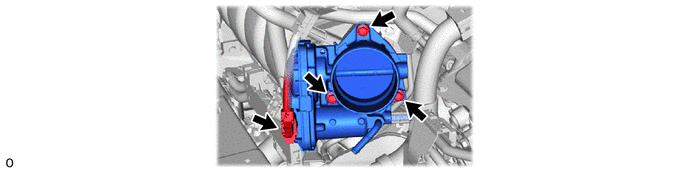

  8. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY1148777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

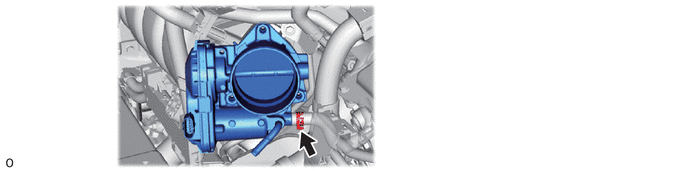

  9. DISCONNECT NO. 6 WATER BY-PASS HOSE
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1152044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

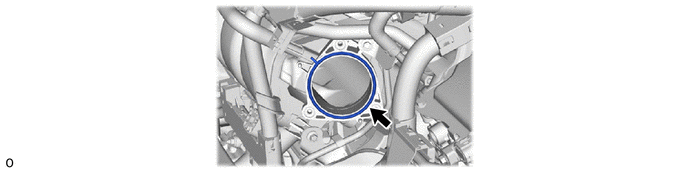

  10. REMOVE THROTTLE BODY GASKET
    1. GTY1147311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
