Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
Refer to INITIALIZATION [02/2024 - ] |
HINT:
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Front Camera System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [02/2024 - ] |
ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
| Power back door system | Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed. |
Refer to INITIALIZATION [02/2024 - ] |

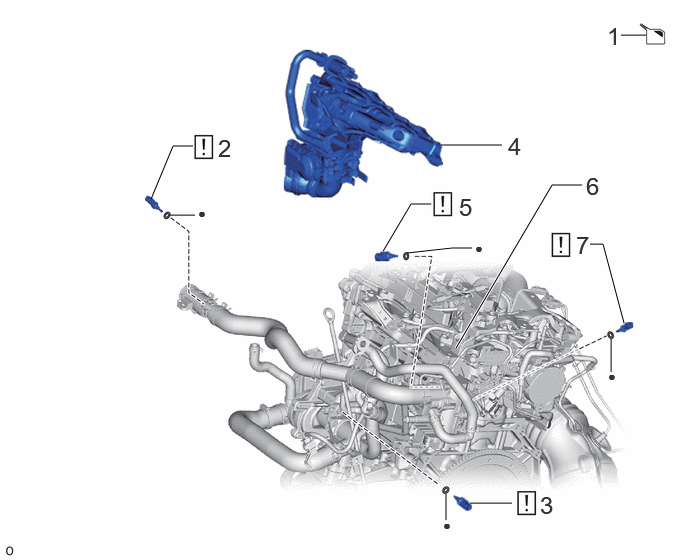

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DRAIN ENGINE COOLANT | - | - | See step 1 | - |
| 2 | ENGINE COOLANT TEMPERATURE SENSOR | 89422A | See step 2 | - | - |
| 3 | ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side) | 89422 | See step 3 | - | - |
| 4 | INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY | - | - | - | - |
| 5 | ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side) | 89422 | See step 5 | - | - |
| 6 | ENGINE WITH TRANSMISSION | - | - | - | - |
| 7 | ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side) | 89422A | See step 7 | - | - |
| • | Non-reusable part | - | - |
