Caution / Notice / Hint

COMPONENTS (REMOVAL)

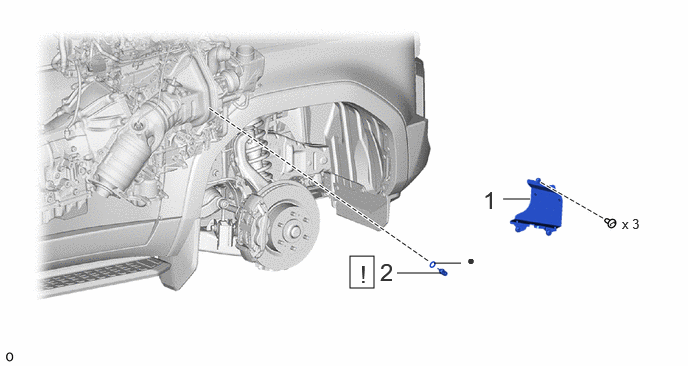

Fig 1: Engine Oil Temperature Sensor Removal Components
GTY1226228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 FRONT FENDER APRON TRIM PACKING A 53782 - - -
2 ENGINE OIL TEMPERATURE SENSOR 89429F See step  2 - -
• Non-reusable part - -
