Anti-Run-On Control Valve

This valve controls purging of carbon canisters and also prevents engine run-on when ignition is turned off. Valve will close when ignition is turned off which will create a slight vacuum in float chamber of carburetor to prevent run-on. When oil pressure drops to zero, or engine is turned off, valve will be deactivated.

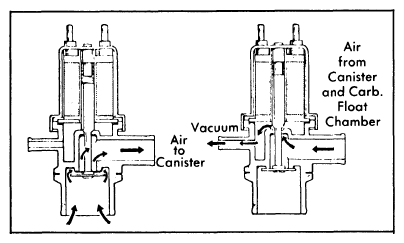

Fig 1: Anti Run On Control Valve
G09350862Courtesy of NOT AVAILABLE
