Engine Compartment & Fuse Block

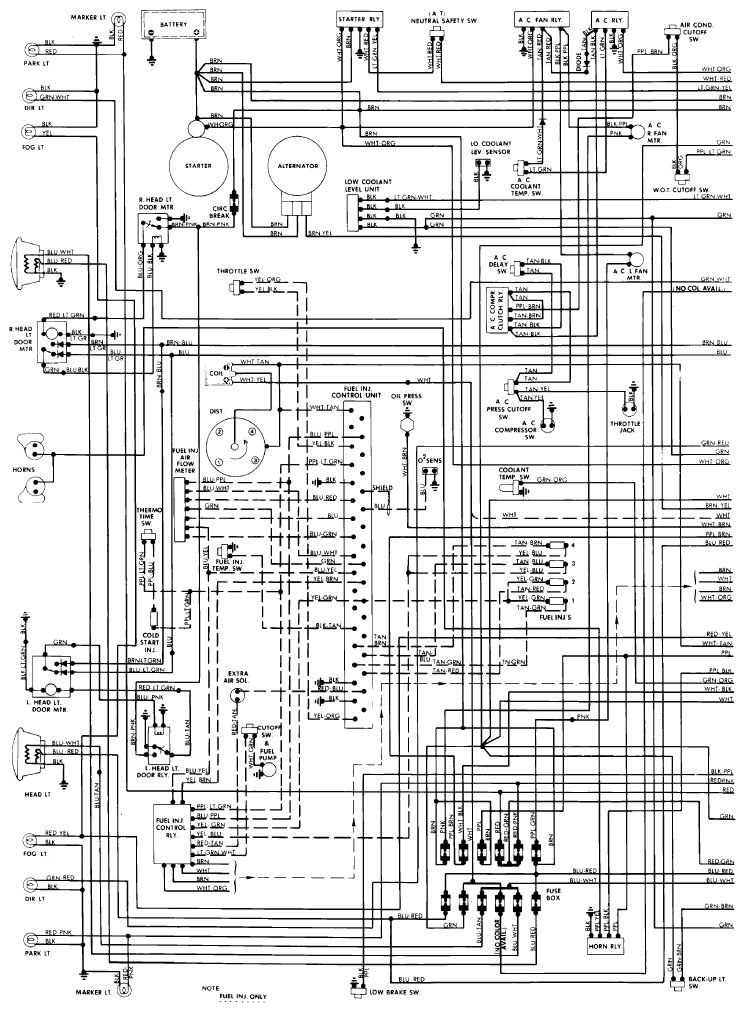

Fig 1: Wiring Diagram - TR7 (1 of 2)

G09304322

Courtesy of NOT AVAILABLE
