Fuel Pump

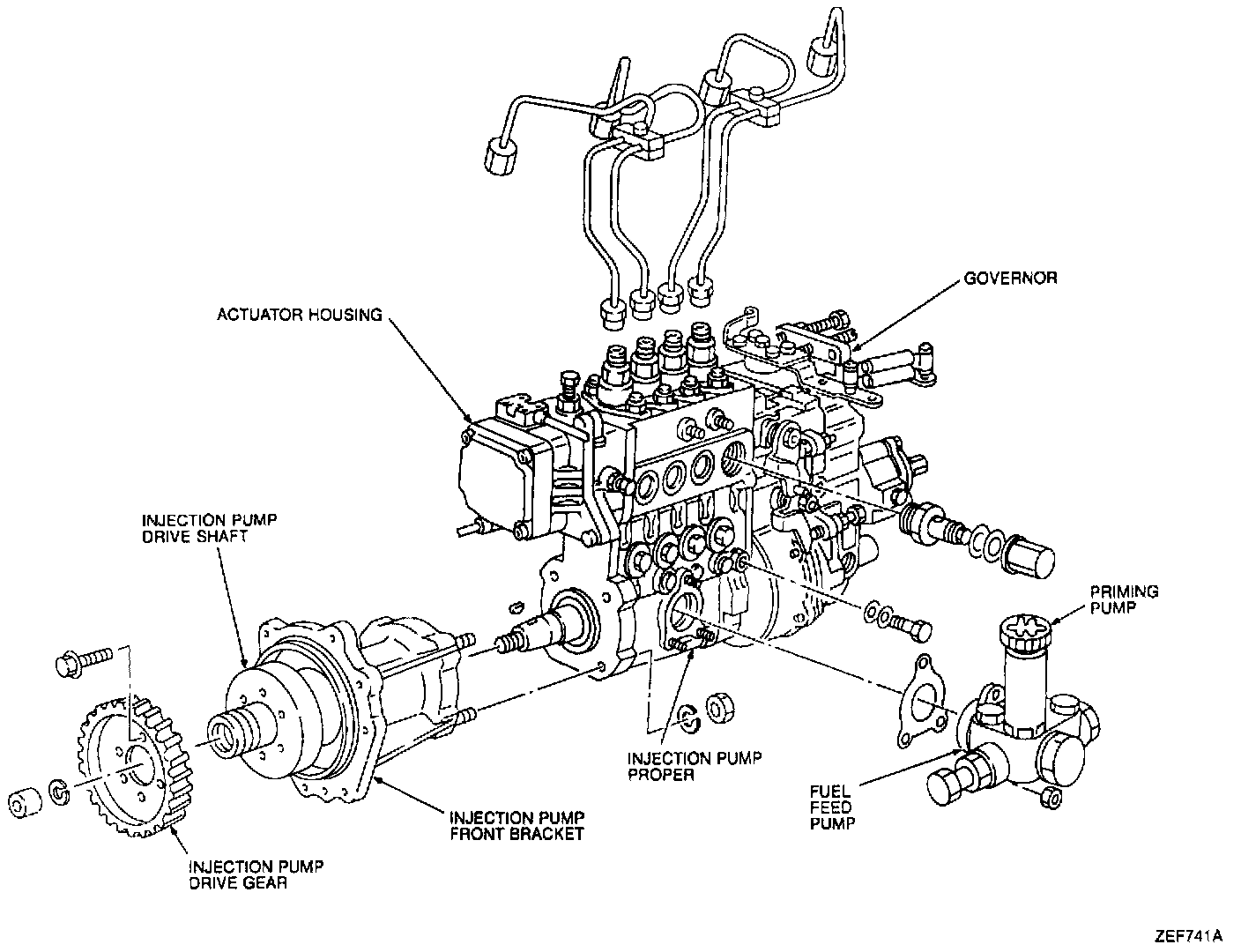

Injection Pump Assembly:

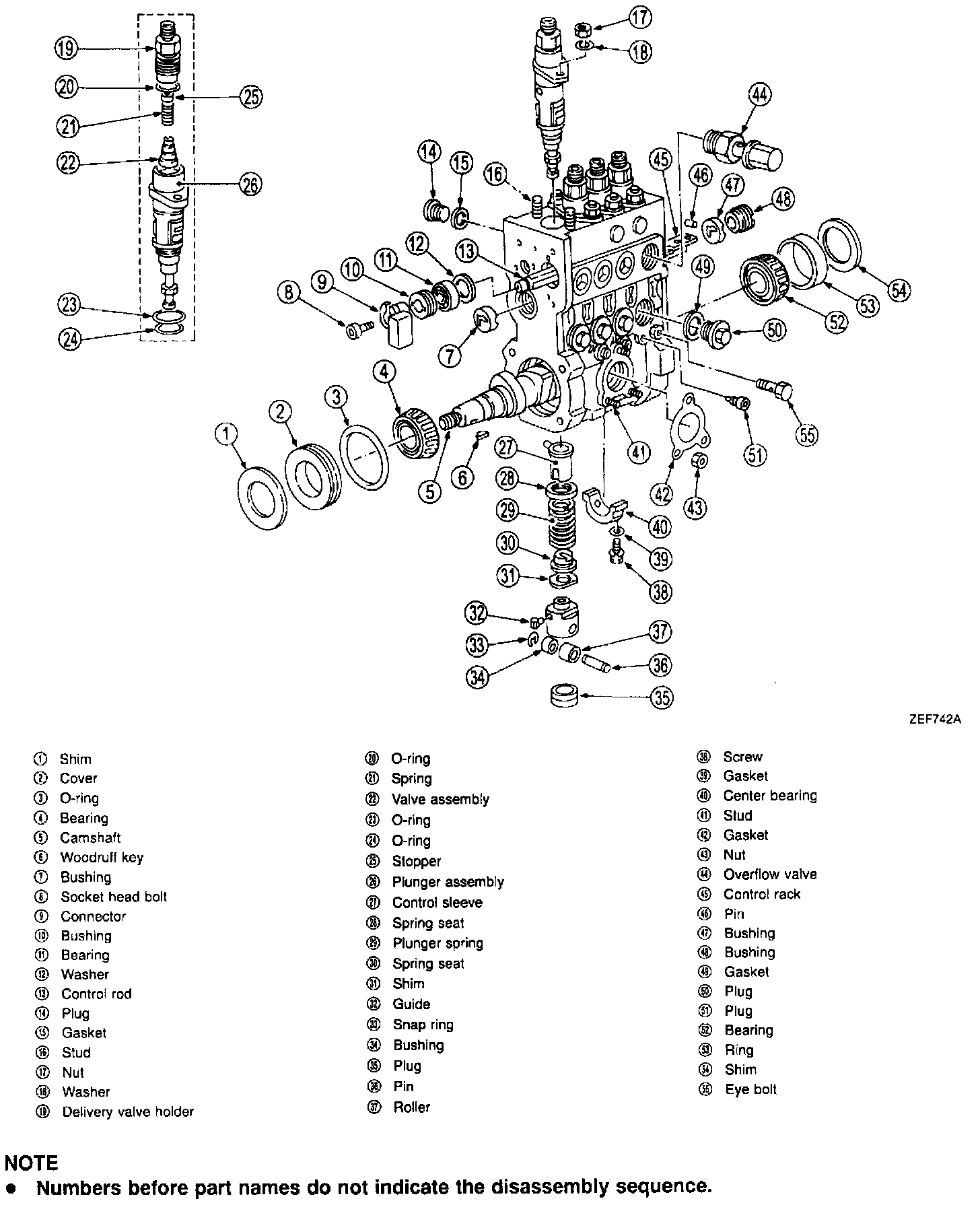

Injection Pump Proper:

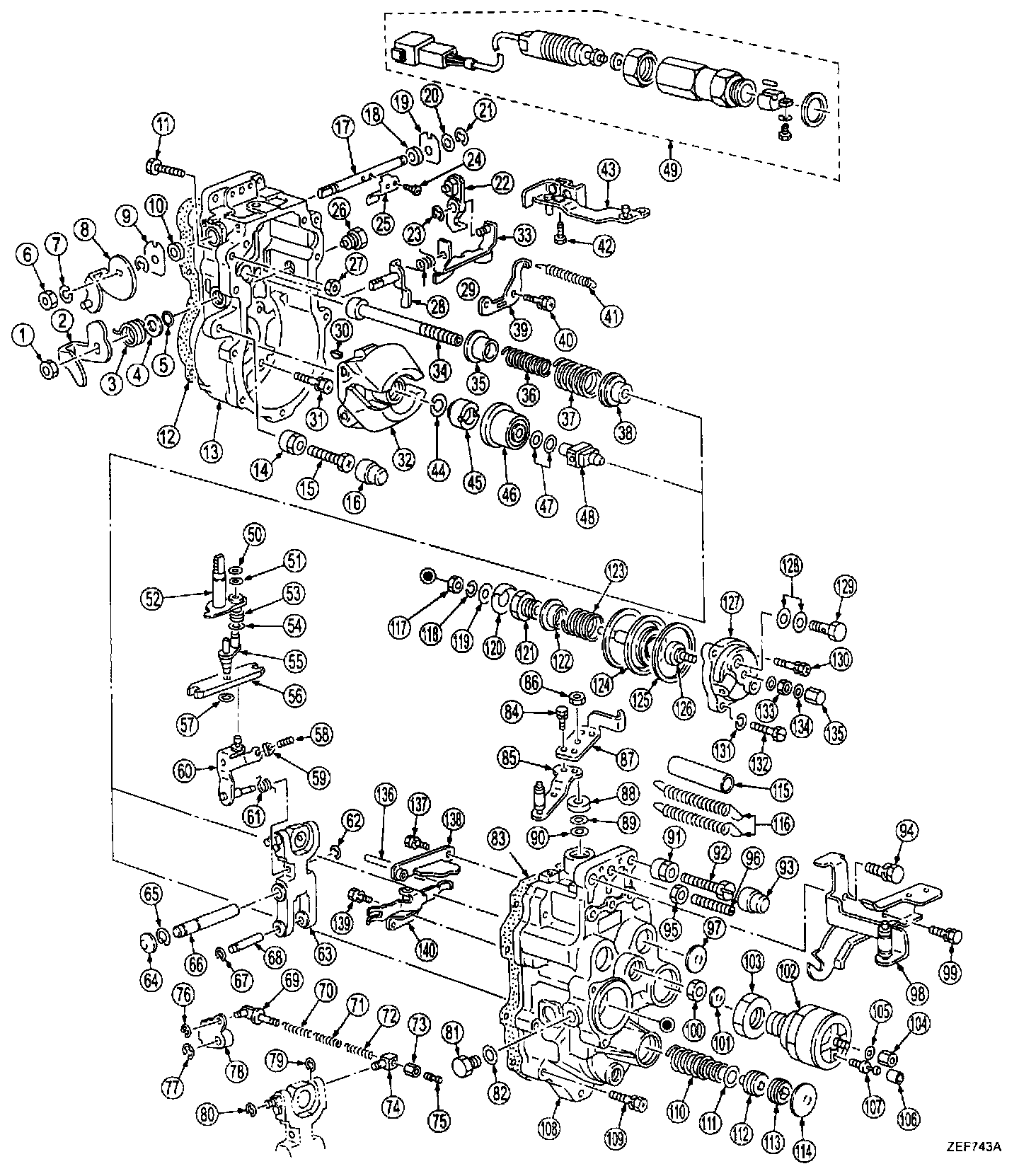

Governor (Part 1):

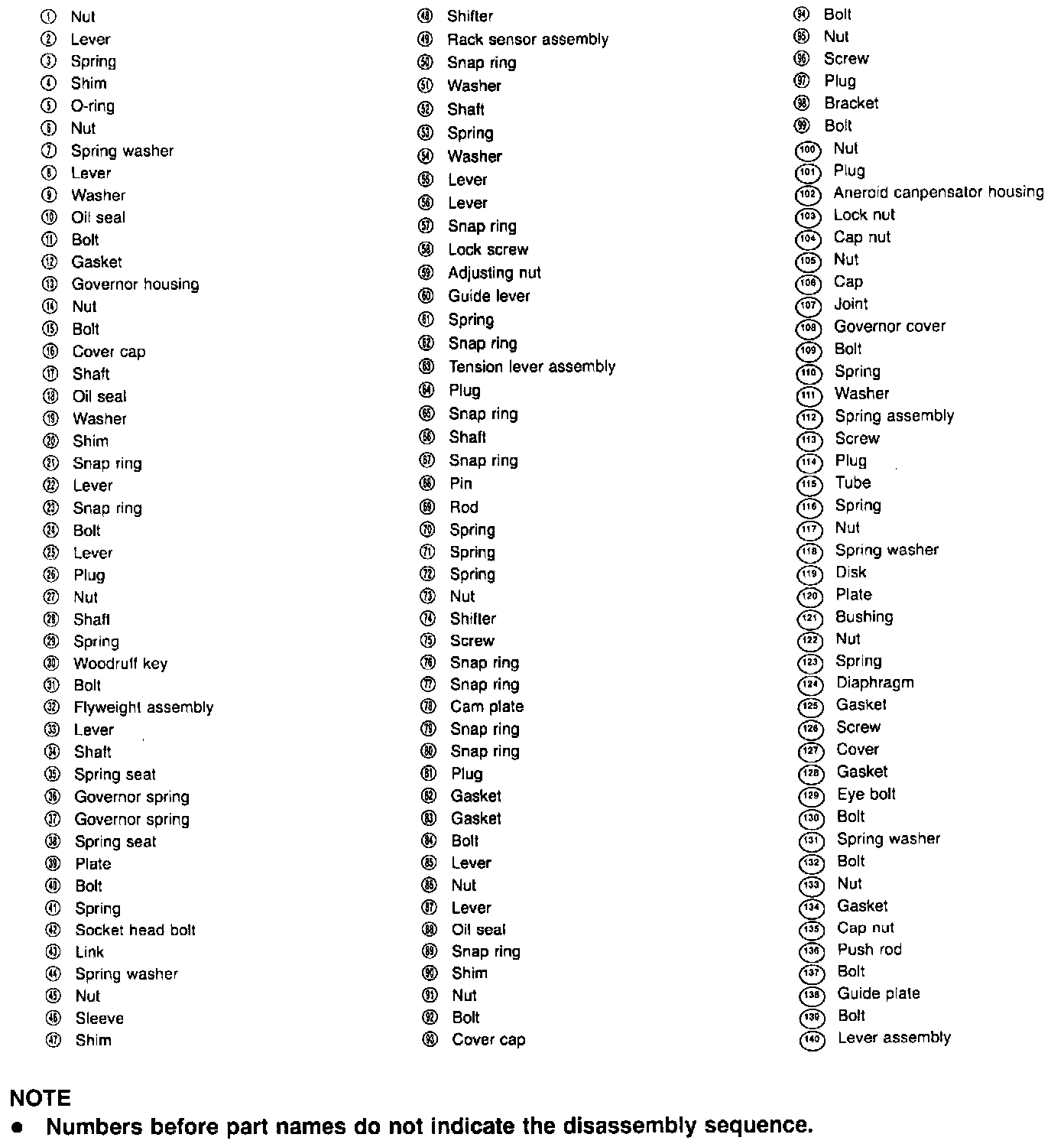

Governor (Part 2):

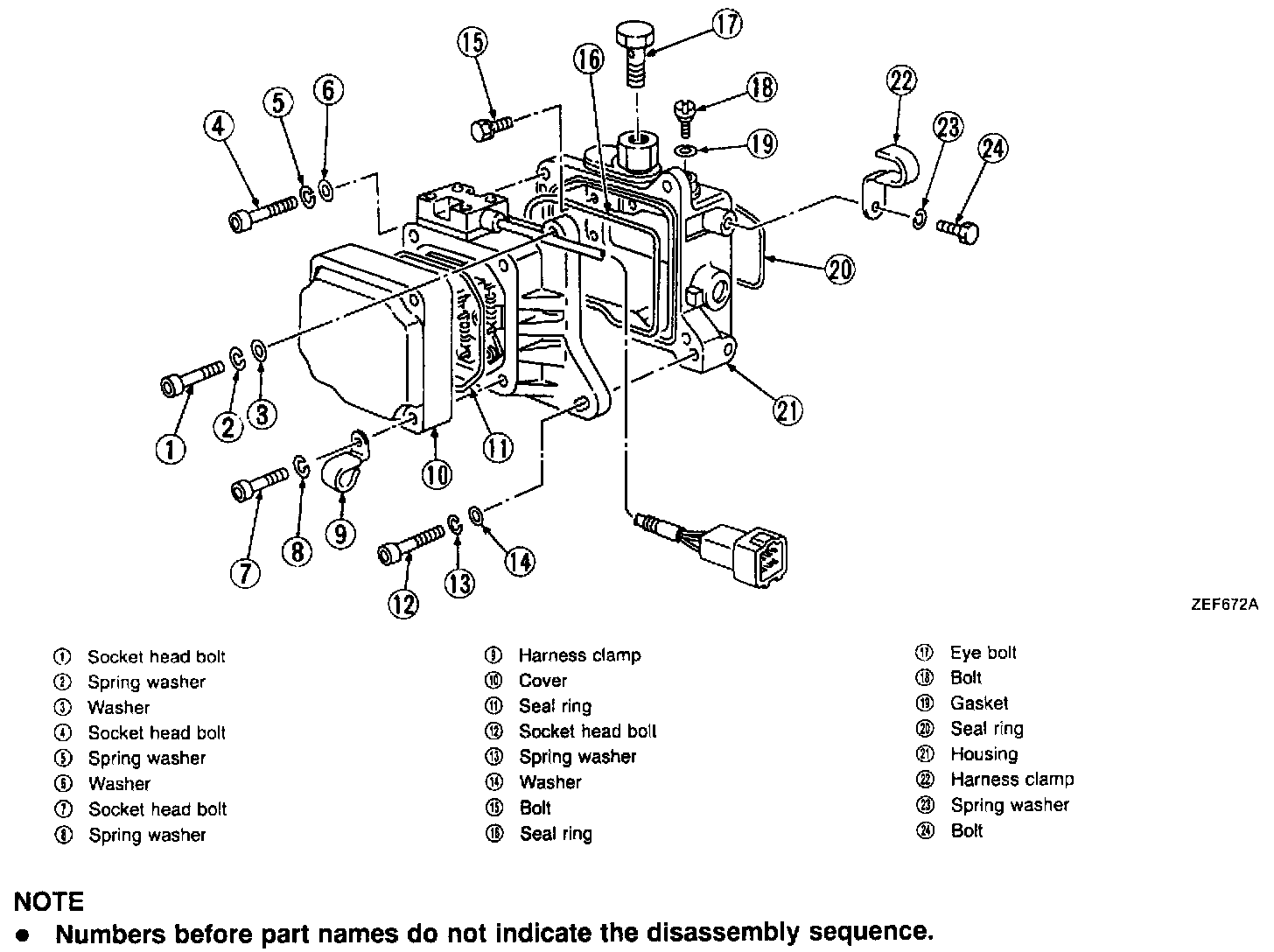

Actuator Housing:

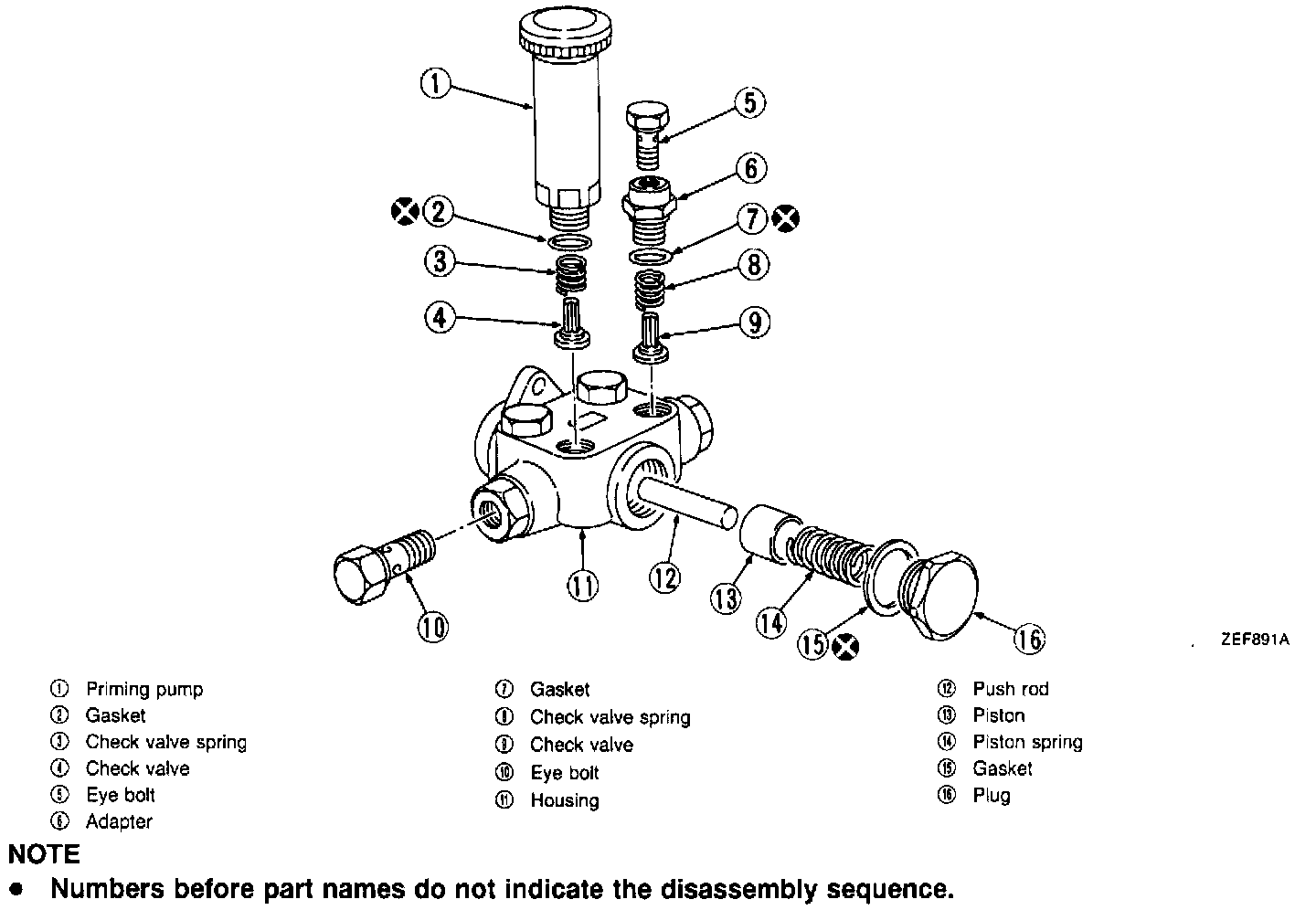

Feed Pump (Part 1):

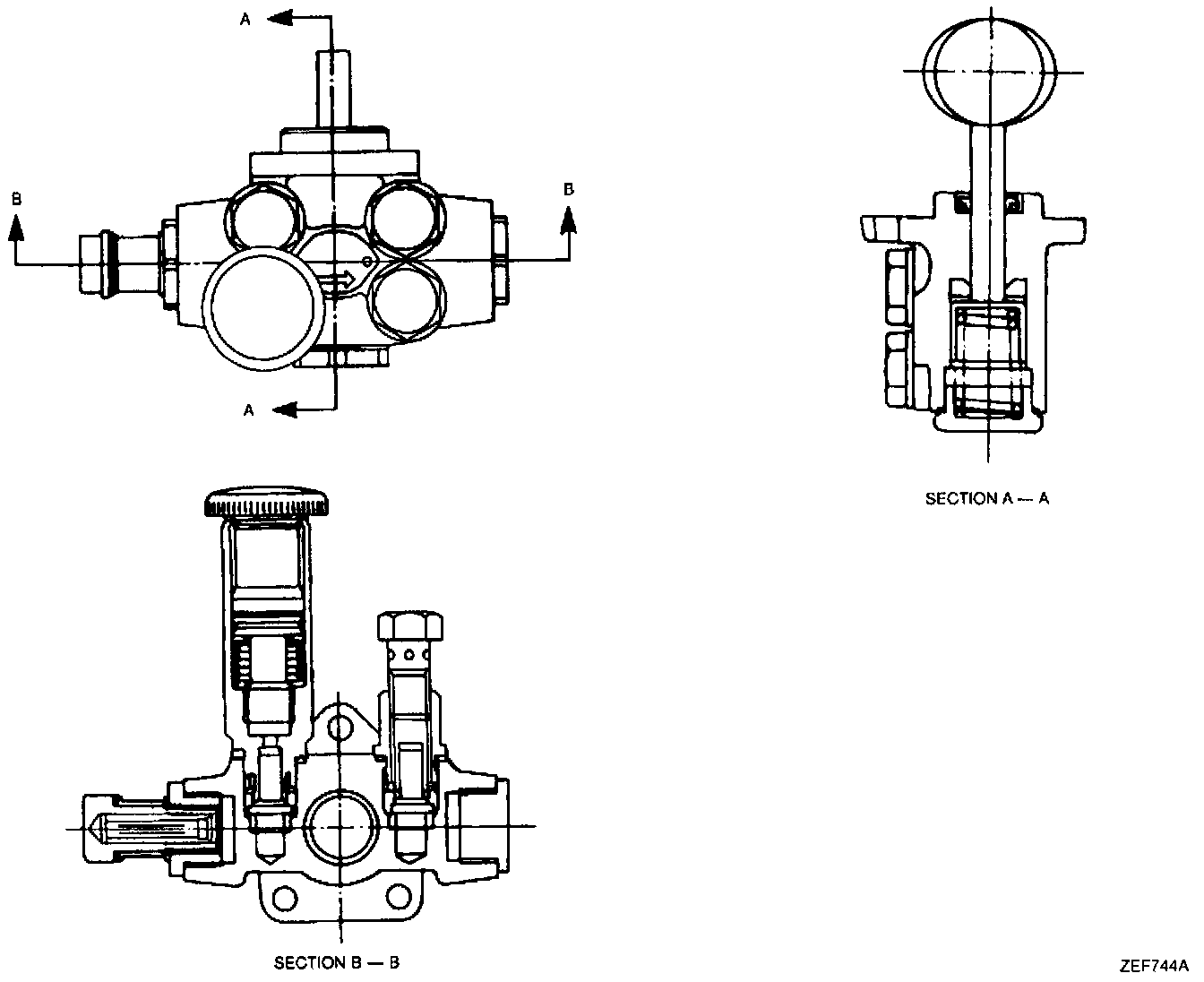

Feed Pump (Part 2):
