Frunk Emergency Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

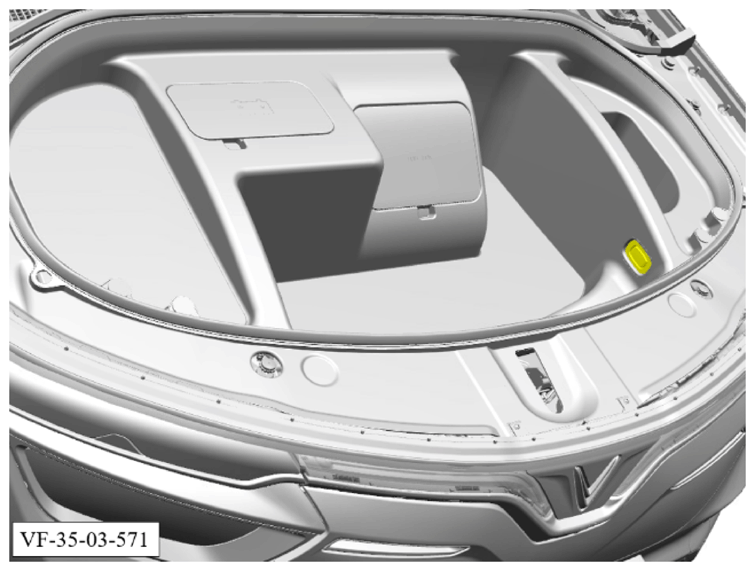

Fig 1: Frunk Emergency Switch Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Open the hood.

   Courtesy of VINFAST, LLC

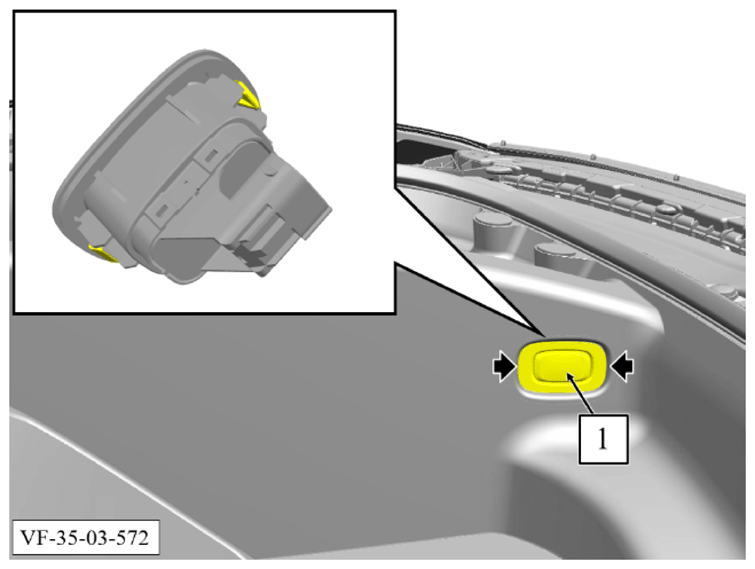

2. Use a suitable plastic wedge to unlock the frunk emergency switch (1) at the fixings (arrows). Carefully pull the frunk emergency switch (1) inwards until the electrical connector is accessible.

   Courtesy of VINFAST, LLC

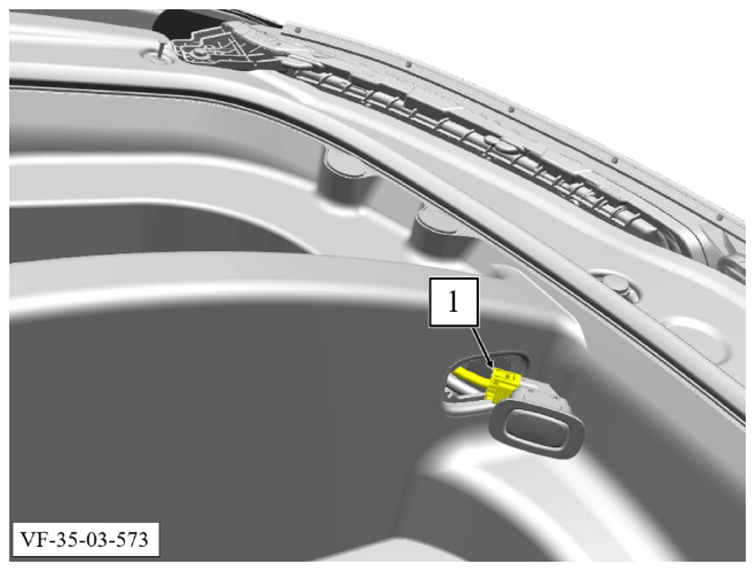

3. Unlock and disconnect electrical connector (1).
4. Remove frunk emergency switch.

Installation Procedure:

1. Installation is the reverse of removal procedure.
