Front Parking Assist Side APA Sensor Removal And Installation/Replacement

Mobile Repair Possible:  Van Only

Overview:

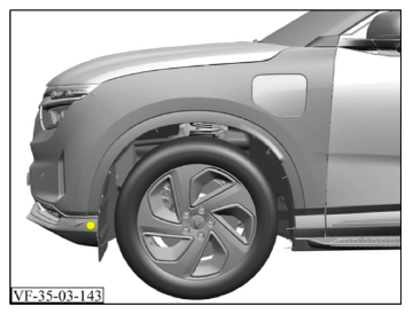

Fig 1: Front Parking Assist Side APA Sensor Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

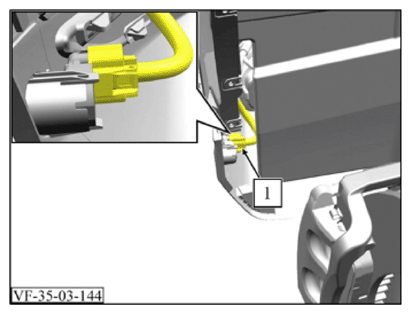

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

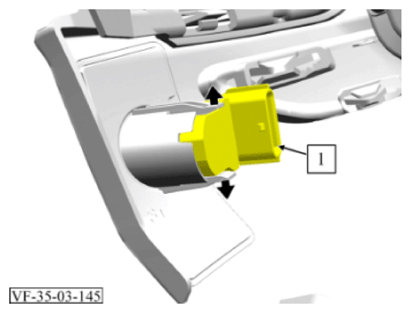

3. Carefully release latches with a screwdriver in the direction of the arrow and pull the sensor (1) out of the brackets.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
