Front Surround View Monitoring Camera Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove front Bumper Fascia. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

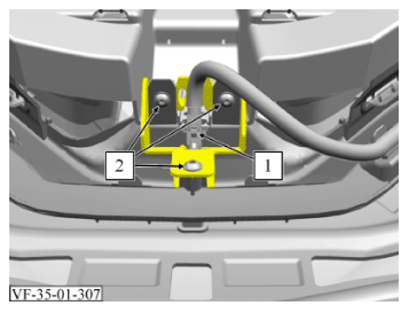

2. Unlock and disconnect electrical connector (1).
3. Remove 3 Screws (2).

   Torque: 2 Nm

4. Remove the camera with the bracket.

Replacement Procedure:

1. Calibrate the camera system. Refer to SURROUND VISION CAMERA SYSTEM CALIBRATION

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install front Bumper Fascia. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT
