Audio Amplifier Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

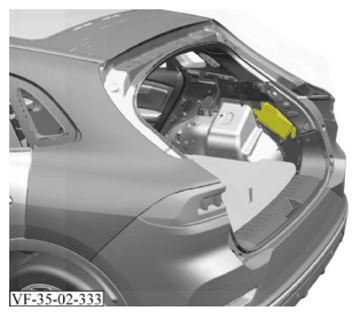

Fig 1: Audio Amplifier Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove C-pillar lower trim panel (right side). Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

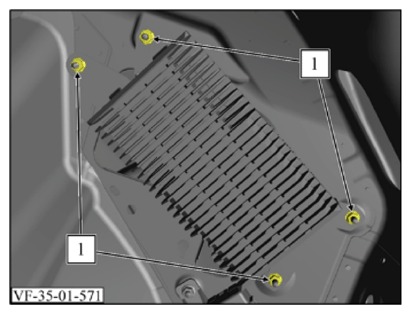

3. Remove 4 nuts (1).

   Torque: 5 Nm

   Courtesy of VINFAST, LLC

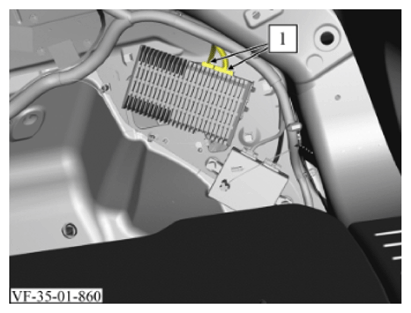

4. Unlock and disconnect 2 electrical connectors (1).

   Courtesy of VINFAST, LLC

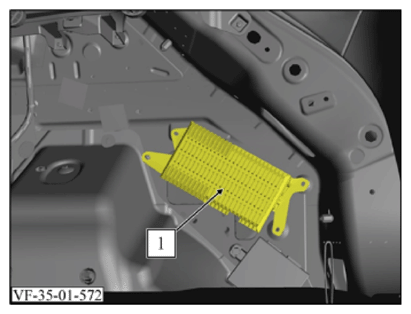

5. Remove audio amplifier (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install C-pillar lower trim panel (right side). Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
