Outside Mirror Description And Function

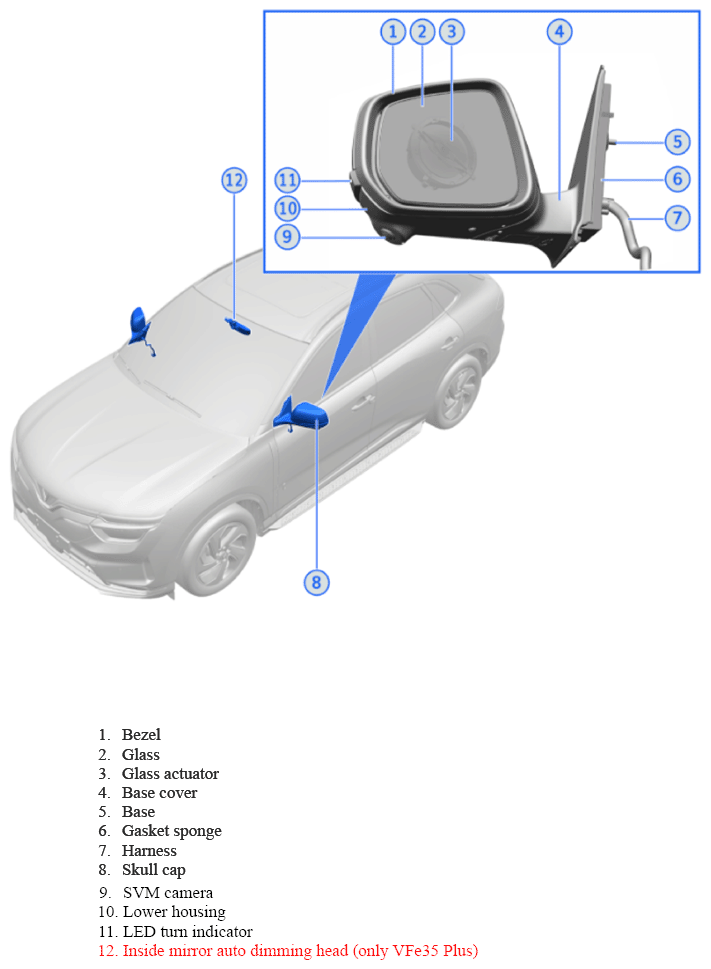

Outside Mirror Components:

• Skull cap left/right
• LED turn indicator left/right
• Bezel left/right
• SVM camera left/right
• Camera bracket left/right
• Harness left/right
• Lower housing left/right
• Base left/right
• Base cover left/right
• Gasket sponge left/right
• Glass left/right
• Glass actuator
• Power fold bracket left/right
• Power fold left/right
• Inside mirror auto dimming head (only VFe35 Plus)

Technical Description:

Side mirrors are used to help the driver to see areas behind and to the sides of the vehicle which are outside of the driver's peripheral vision ("blind spot").

The outside mirrors are operated by means of the touch display (HMI).

The mirror functions are controlled by the BCM.

The MFS communicates with the BCM via the LIN bus of the gateway (XGW).

The display signal for blind spot recognition is received from the ADAS control unit via the XGW.

The outside mirrors have the following functions:

• Blind spot recognition
• LED turn signals
• Side camera for 360-degree view
• Ambient temperature sensor (left-hand outside mirror only)
• Automatic dimming (only VFe35 Plus)
• Heated mirror glass (only VFe35 Plus)
• Automatic reverse tilt
• Memory function
• Rear cross traffic warning
• Electrically foldable

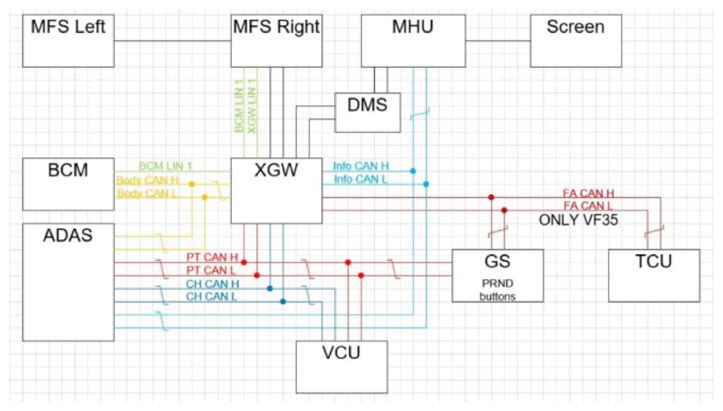

Example of Schematic Diagram:

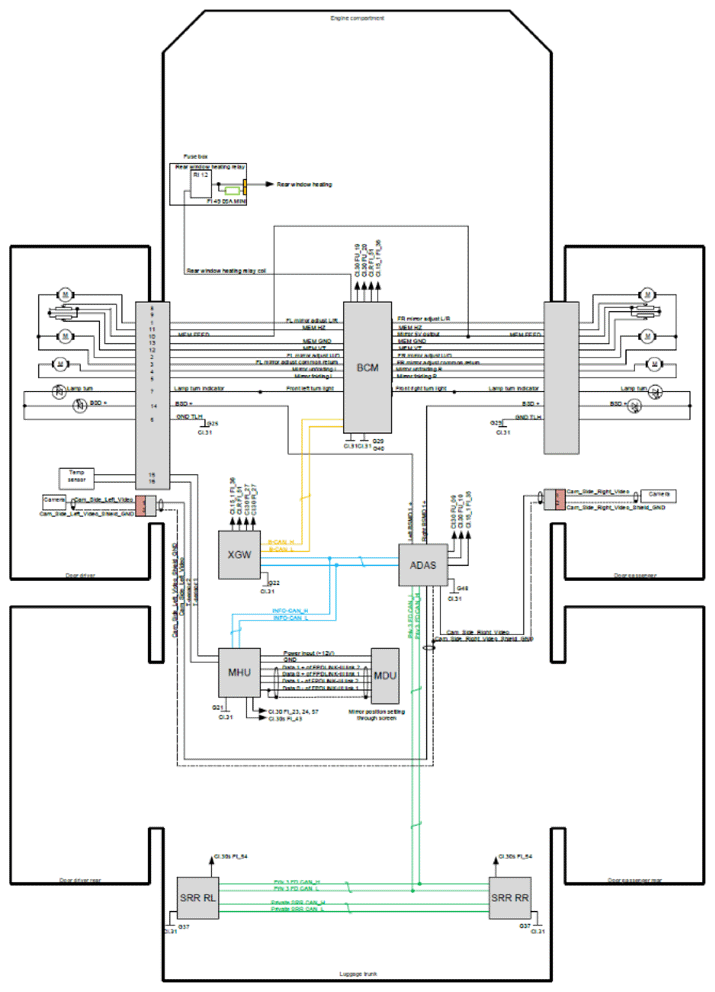

VFe35 Eco

Courtesy of VINFAST, LLC

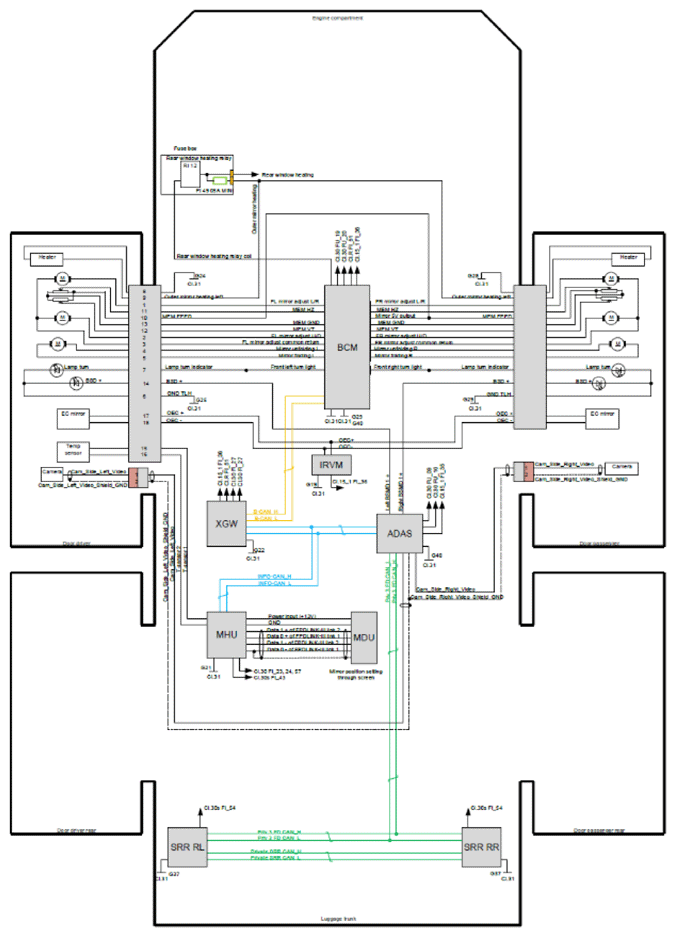

VFe35 Plus

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Operation:

Adjusting the Outside Mirrors

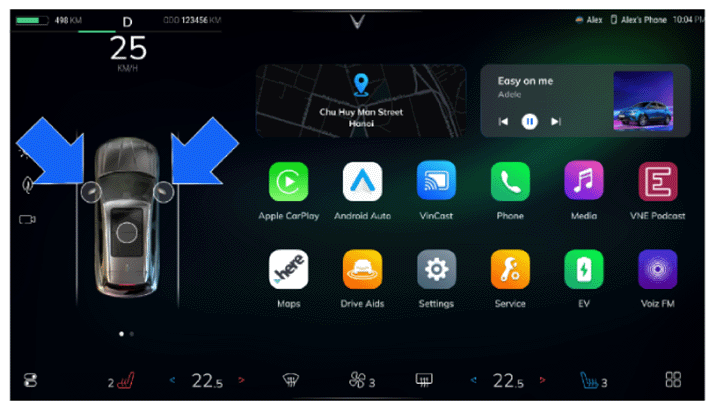

1. 1. Select the plan view of the vehicle in the touch display and, having selected the tracking view, press the tracking view to activate the button for the outside mirrors.
2. 2. Press one of the buttons for either the left - or right-hand outside mirror.

   Courtesy of VINFAST, LLC

   Courtesy of VINFAST, LLC

3. 3. Press "Unfold" if the outside mirrors are still folded in, otherwise no settings can be made for them.

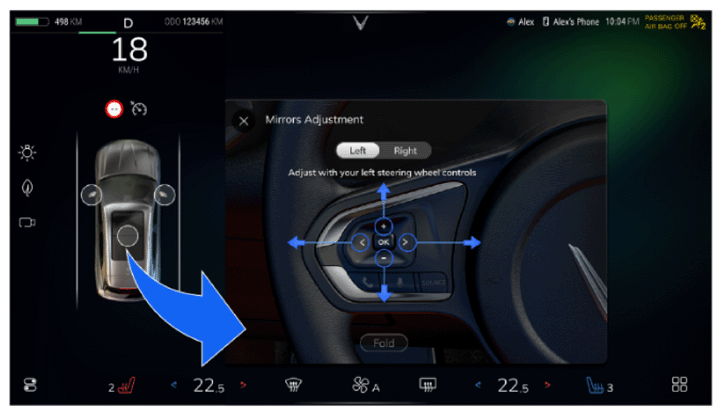

4. 4. Use the controls to the left of the steering wheel to adjust the outside mirror you have selected.
5. 5. Press the button for the mirror that still needs to be adjusted, or briefly press "OK" on the controls to the left of the steering wheel to switch the mirror needing to be adjusted.
6. 6. Use the controls to the left of the steering wheel to adjust the outside mirror you have selected.
7. 7. Press "X" or outside of the window to close the outside mirror settings, otherwise the window will automatically close after 6 seconds.

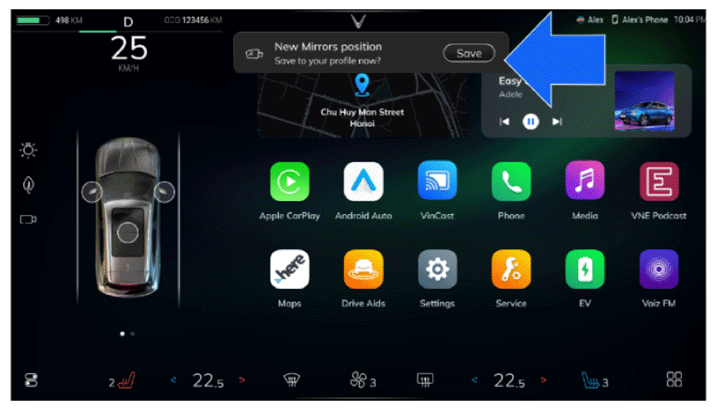

8. 8. Press "Save" to confirm your settings, otherwise they will be lost the next time you start the vehicle.

   Courtesy of VINFAST, LLC

   Automatic Folding/Lowering

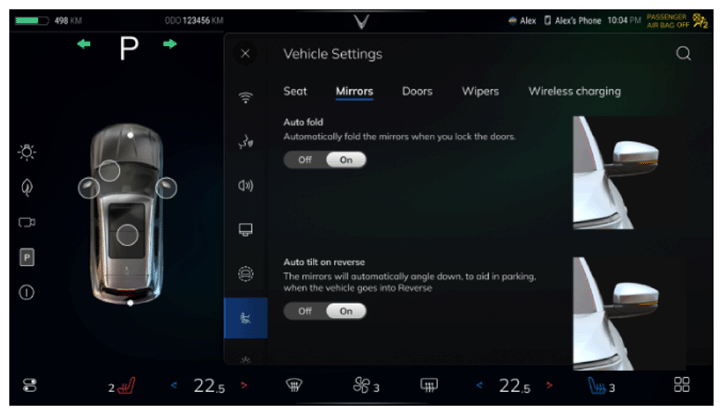

9. 1. Press the "Settings" icon and select the "Vehicle Settings" button.
10. 2. Press the "Mirrors" button.
11. 3. Select the settings you require.

    Courtesy of VINFAST, LLC

12. 4. Press "X" or outside of the window to close the outside mirror settings, otherwise the window will automatically close after 6 seconds.

    Heated Outside Mirror (only VFe35 Plus)

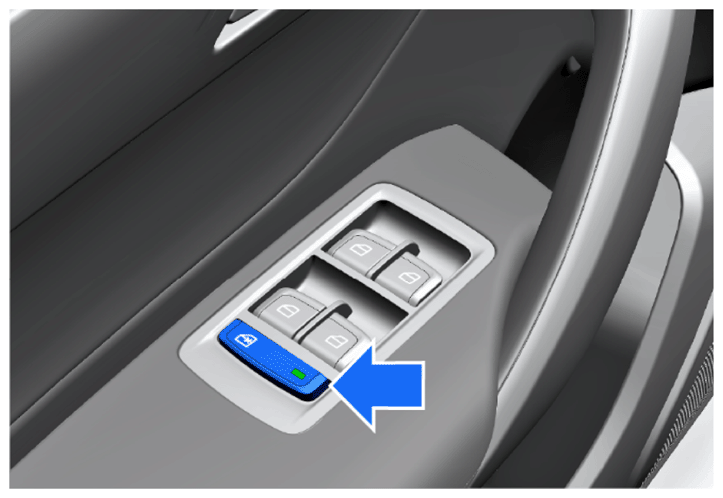

13. 1. Press the button on the door control unit to activate the heating of the left-hand outside mirror.

    Courtesy of VINFAST, LLC

    Automatic dimming (only VFe35 Plus)

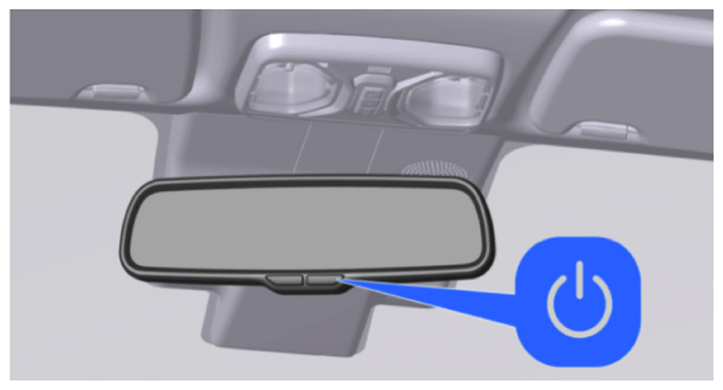

14. 1. Press the button on the inside rearview mirror to activate/deactivate the automatic dimming of the outside mirrors and the inside mirror.
