Front Dual USB Socket Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front floor console accessory trim. Refer to FRONT FLOOR CONSOLE ACCESSORY TRIM PLATE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

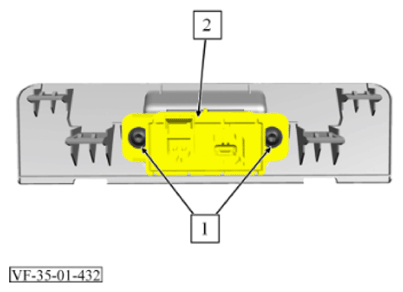

2. Remove 2 screws (1).

   Torque: 1.20 Nm

3. Remove USB socket (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install front floor console accessory trim. Refer to FRONT FLOOR CONSOLE ACCESSORY TRIM PLATE REMOVAL AND INSTALLATION/REPLACEMENT
