Front Left Side Door Handle Lock Cap Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Make sure the window is properly closed.
2. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
3. Remove front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

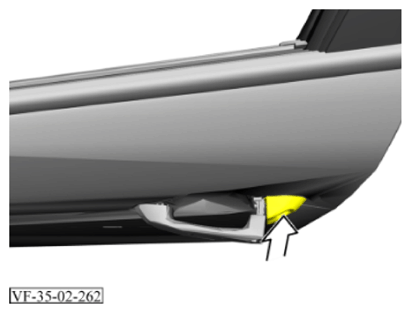

4. Remove the covering cap (1).

   Courtesy of VINFAST, LLC

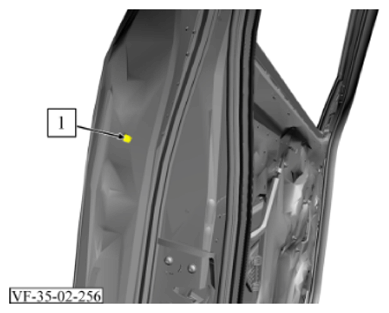

5. Loosen bolt (1), do not remove.

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

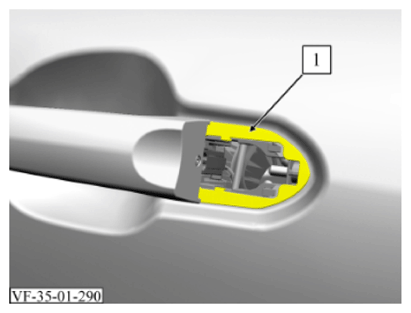

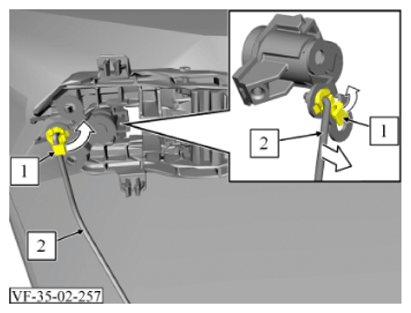

6. Twist clip (1) in arrow direction and detach connecting bar (2).

   Courtesy of VINFAST, LLC

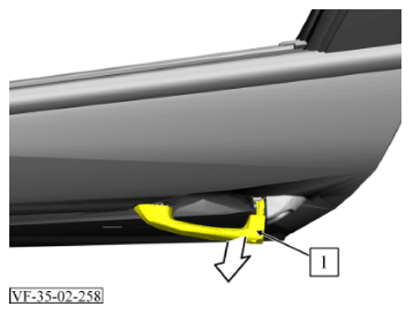

7. Pull out the door handle (1) as far as possible.

   Courtesy of VINFAST, LLC

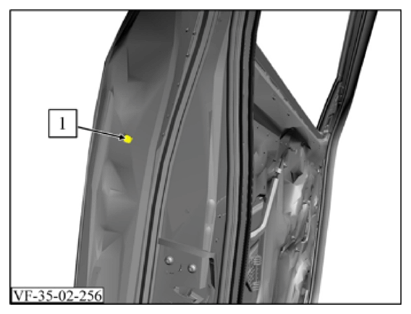

8. Remove front side door lock cylinder with the front left side door handle lock cap.

   Courtesy of VINFAST, LLC

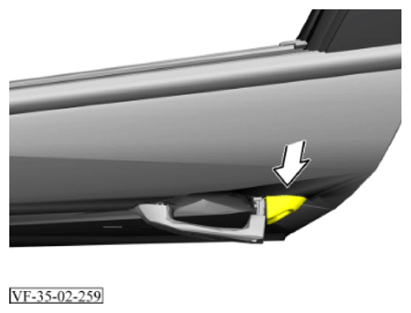

9. Take the front left side door handle lock cap (1) off of the front side door lock cylinder (2).

Installation Procedure:

Courtesy of VINFAST, LLC

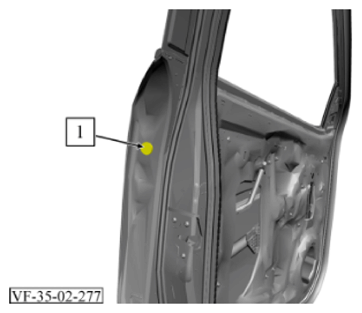

1. Ensure that the sealing (1) is positioned correctly.

   Courtesy of VINFAST, LLC

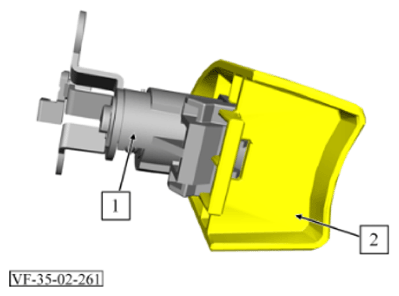

2. Assemble front side door lock cylinder (1) and front left side door handle lock cap (2).

   Courtesy of VINFAST, LLC

3. Pull out the door handle (1) as far as possible.

   Courtesy of VINFAST, LLC

4. Install front side door lock cylinder with the front left side door handle lock cap.

   Courtesy of VINFAST, LLC

5. Tighten bolt (1).

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

6. Install covering cap (1).

   Courtesy of VINFAST, LLC

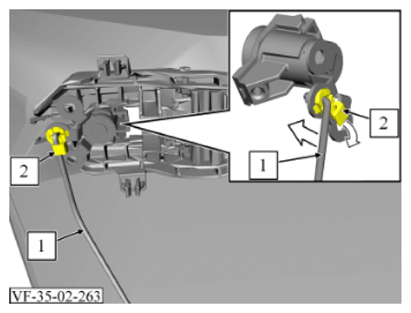

7. Attach connecting bar (1) and twist clip (2) in arrow direction, until it noticeably engages.
8. Install front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
9. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
