Front Side Door Latch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Raise the window to its highest position
2. Remove front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
3. Applies only to driver's door:

   Remove the Front Side Door Lock Cylinder. Refer to FRONT SIDE DOOR LOCK CYLINDER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

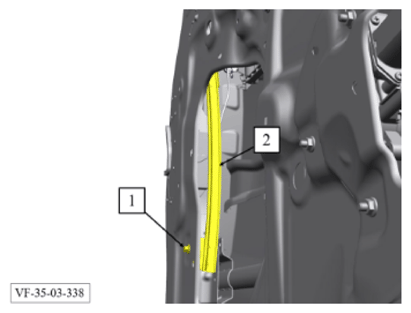

4. Remove the bolt (1). Only loosen the door glass rail (2), do not remove.

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

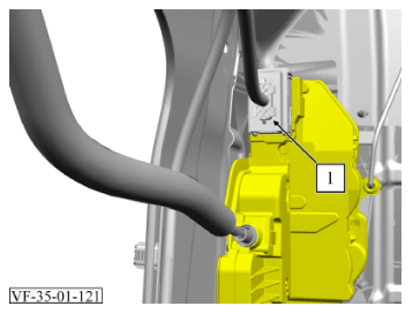

5. Unlock and disconnect the electrical connector (1).

   Courtesy of VINFAST, LLC

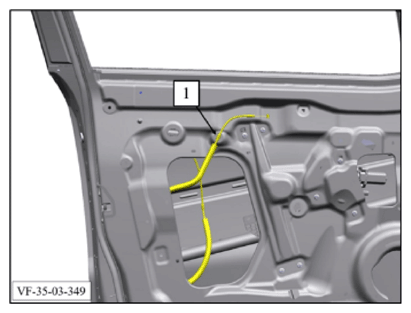

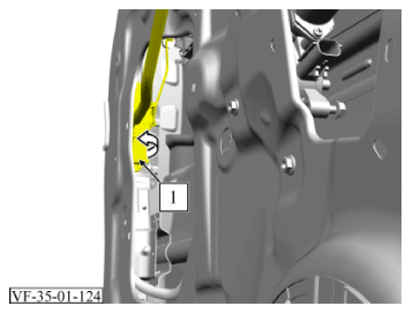

6. Detach front side door inside handle cable retainer (1) from the door.

   Courtesy of VINFAST, LLC

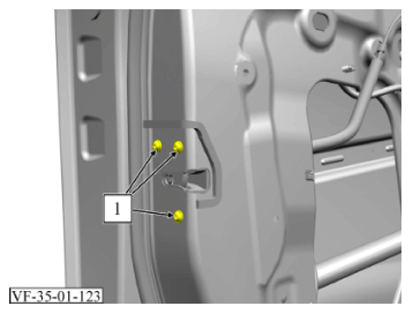

7. Remove 3 bolts (1).

   Torque: 12 Nm

   Installation note: Tighten bolts (1) evenly.

   Courtesy of VINFAST, LLC

8. Remove the front side door latch (1) out of the door cavity.

   Courtesy of VINFAST, LLC

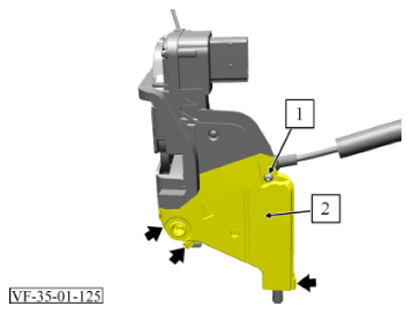

9. Remove screw (1).

   Torque: 1 Nm

10. Release latches (arrows) and open the lid (2).

    Courtesy of VINFAST, LLC

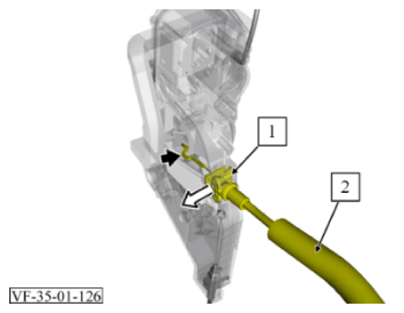

11. Unclip (1) and remove the front side door inside handle cable (2) in the direction of the arrow.

    Courtesy of VINFAST, LLC

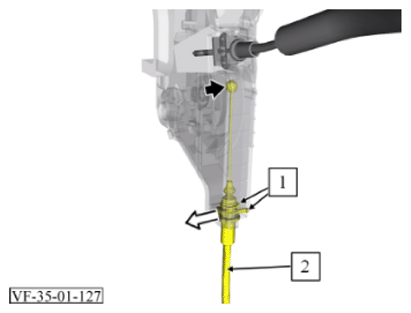

12. Unclip (1) and remove the front side door outside handle cable (2) in the direction of the arrow.

Replacement Procedure:

Courtesy of VINFAST, LLC

Applies only to driver's door:

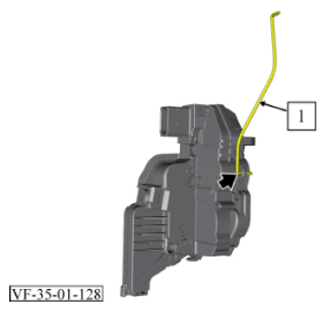

1. Remove connecting rod (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Applies only to driver's door:

   Install the Front Side Door Lock Cylinder. Refer to FRONT SIDE DOOR LOCK CYLINDER REMOVAL AND INSTALLATION/REPLACEMENT

3. Install front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
