Auto Pilot Emergency Collision Avoidance System Description And Function
>>
ADAS System Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

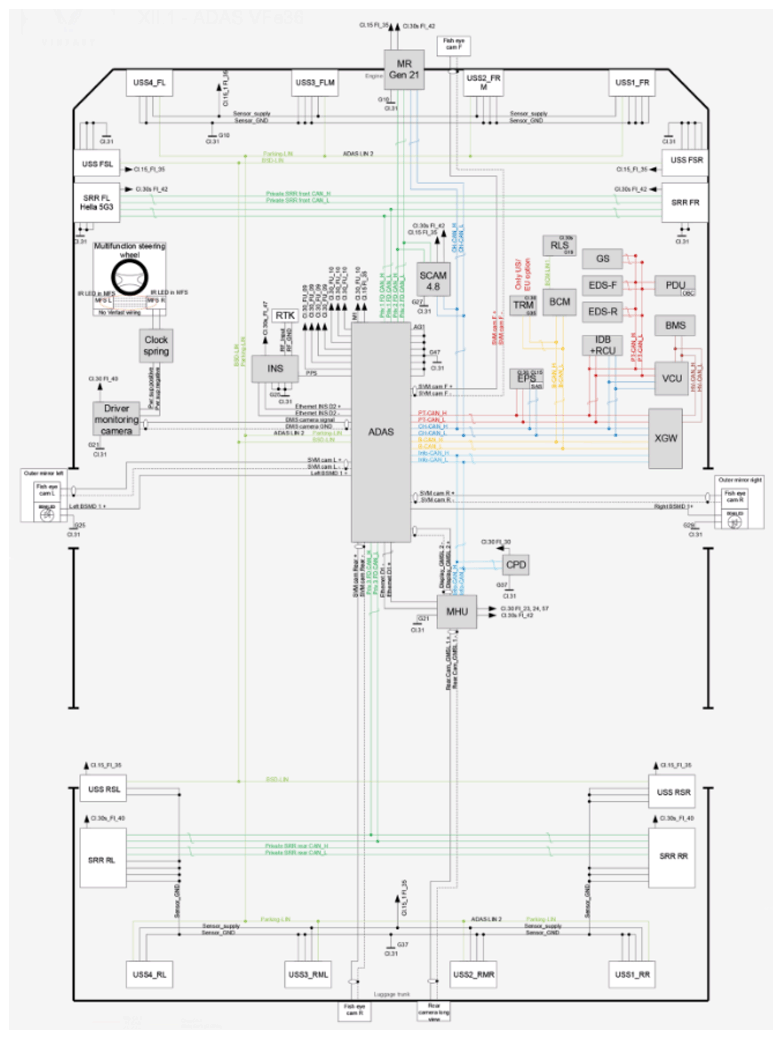

ADAS System Schematic
Courtesy of VINFAST, LLC
Courtesy of VINFAST, LLC
