Front Surround View Monitoring Camera Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove front decoration lamp. Refer to FRONT DECORATION LAMP REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

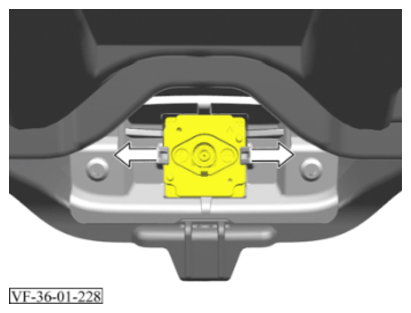

2. Carefully press the locking lugs in the direction of the arrows and remove the surrounding camera.

Replacement Procedure:

1. Calibrate the surround vision camera system. Refer to SURROUND VISION CAMERA SYSTEM CALIBRATION

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front decoration lamp. Refer to FRONT DECORATION LAMP REMOVAL AND INSTALLATION/REPLACEMENT
