Vehicle Tire Repair Kit Tool Box Installation

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove Load Floor Trim Panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

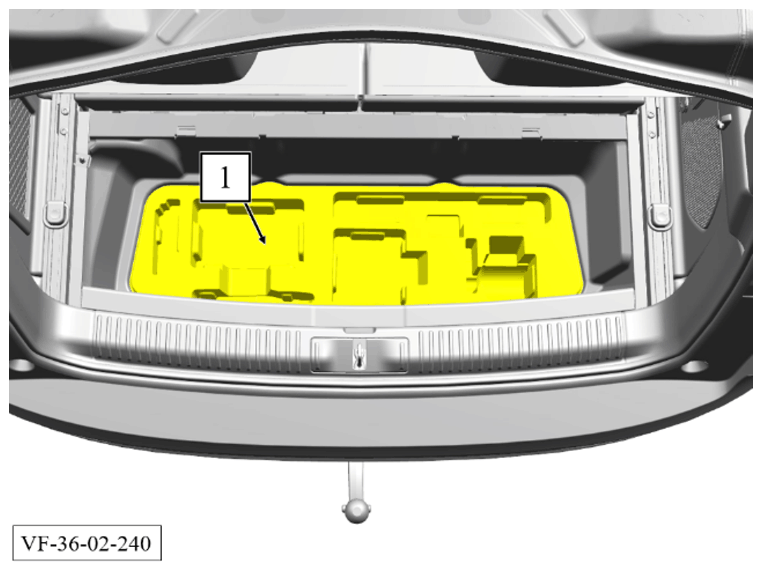

2. Install the vehicle toolbox (1).

   Courtesy of VINFAST, LLC

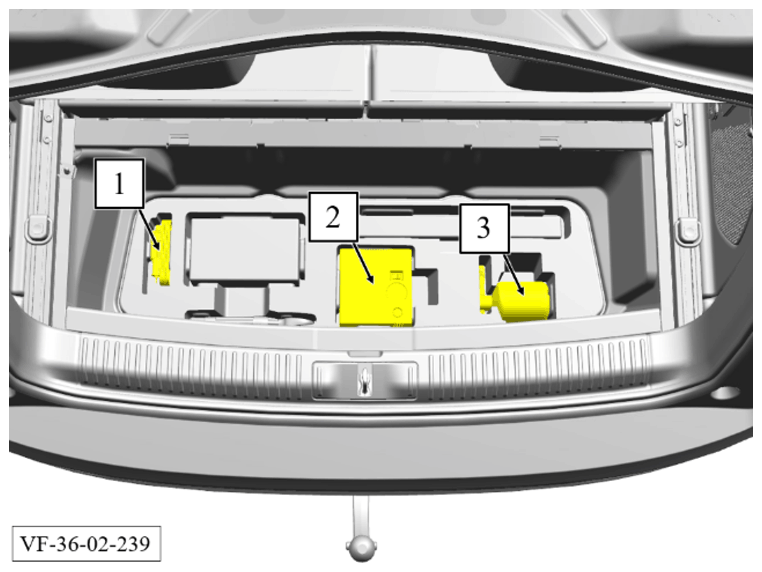

3. Install the tire repair kit, consisting of the extension cable (1), the compressor (2) and the tire sealant bottle (3).

Installation Procedure:

1. Install the load floor trim panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
