Engine Specifications and Clearances

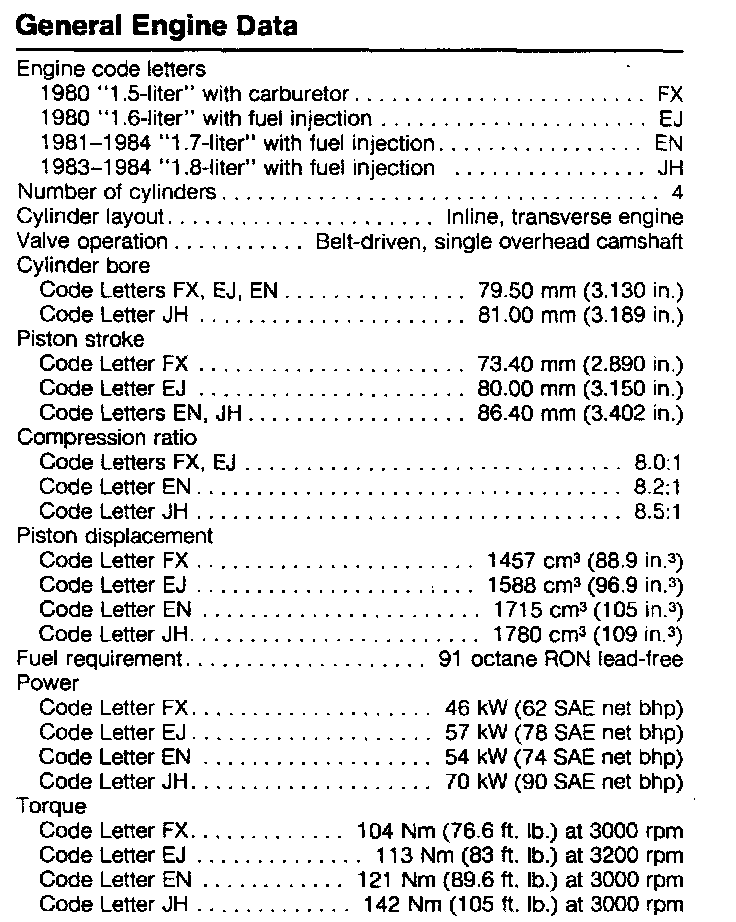

Engine Specifications:

Engine Specifications:

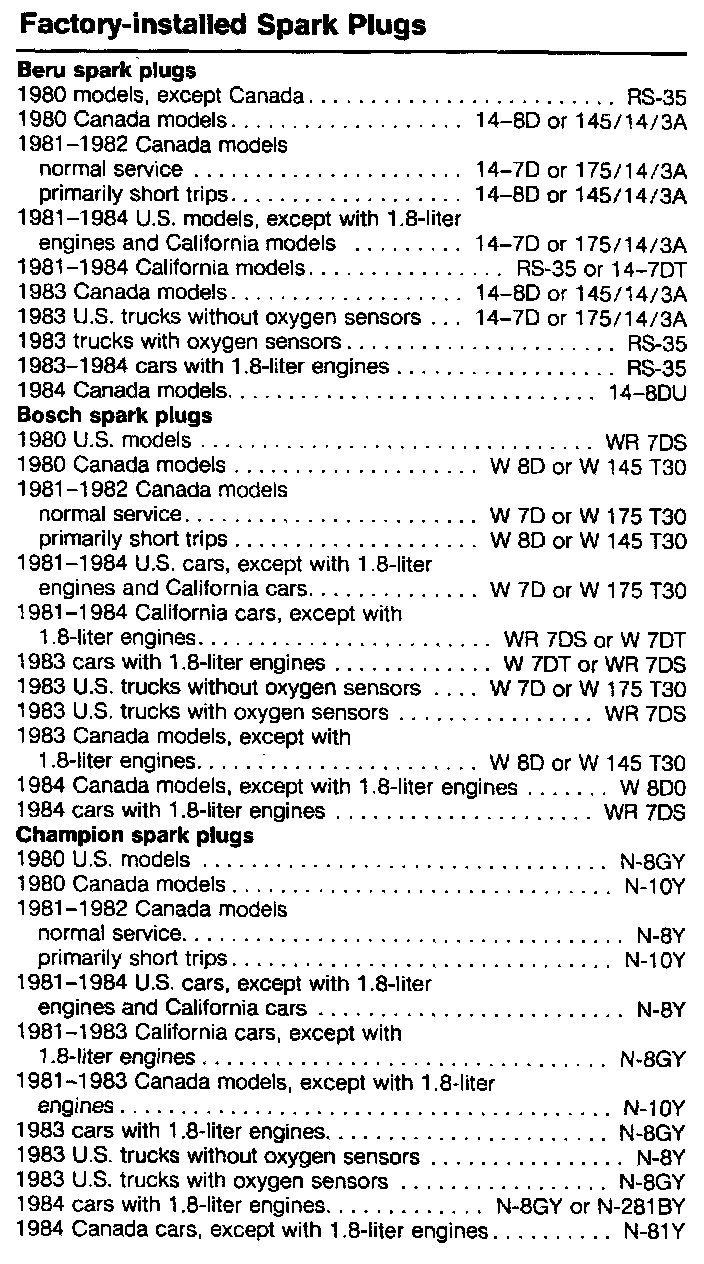

Sparkplug Specifications:

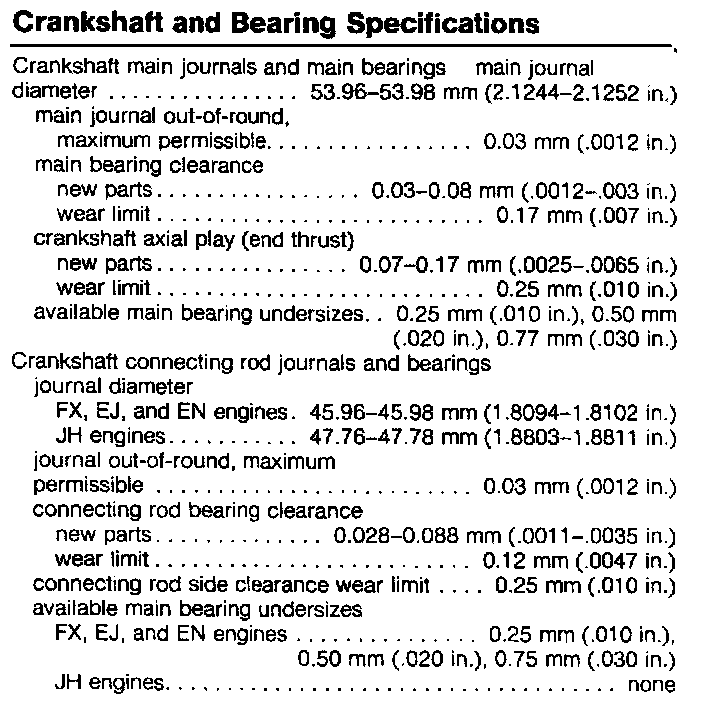

Crankshaft And Bearing Specifications:

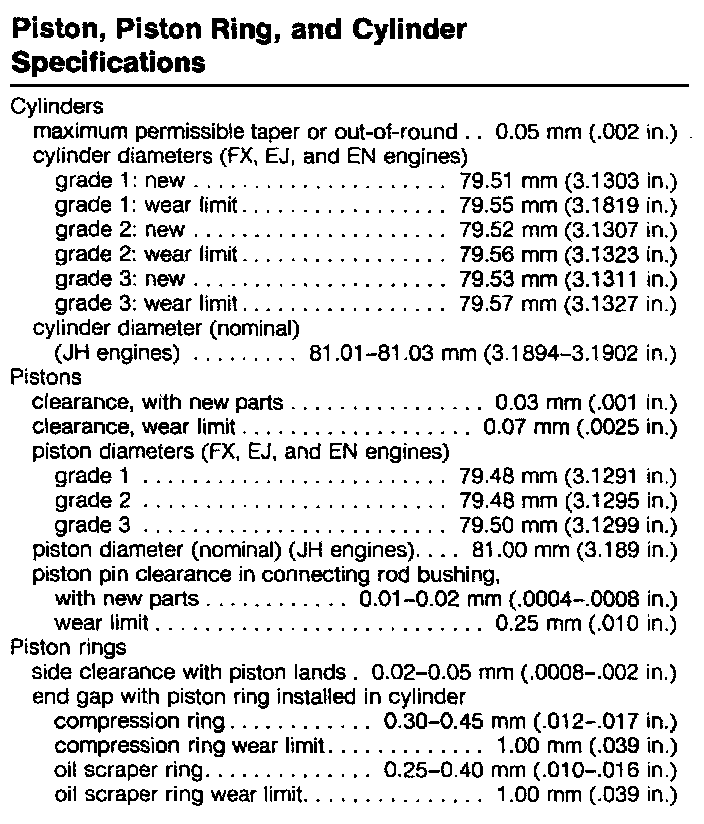

Piston And Cylinder Specifications:

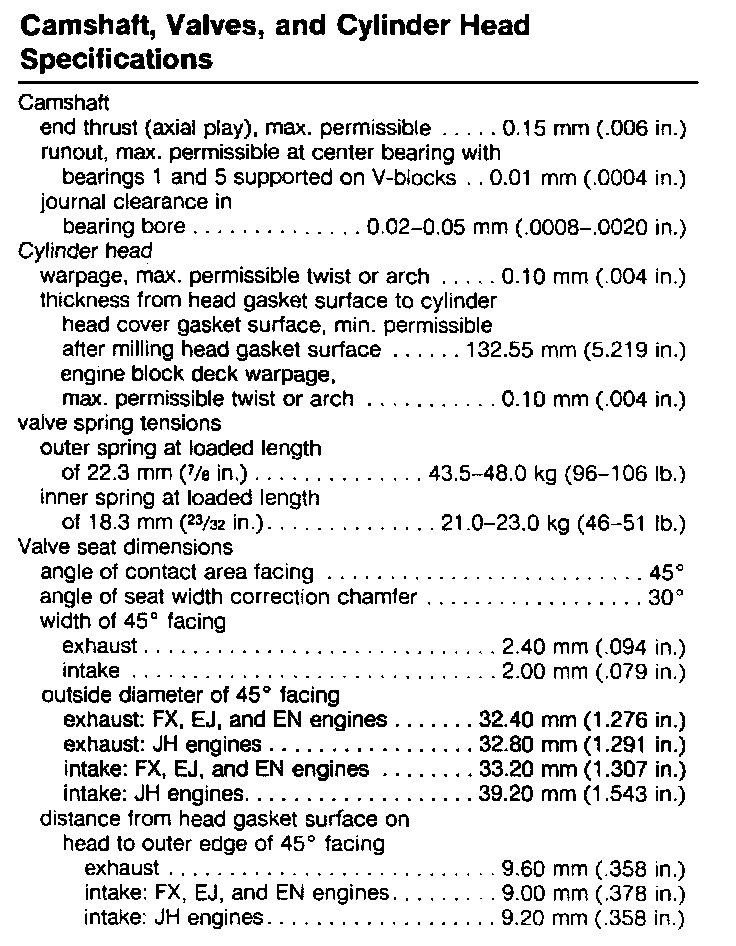

Camshaft, Valves And Cylinder Head Specifications:

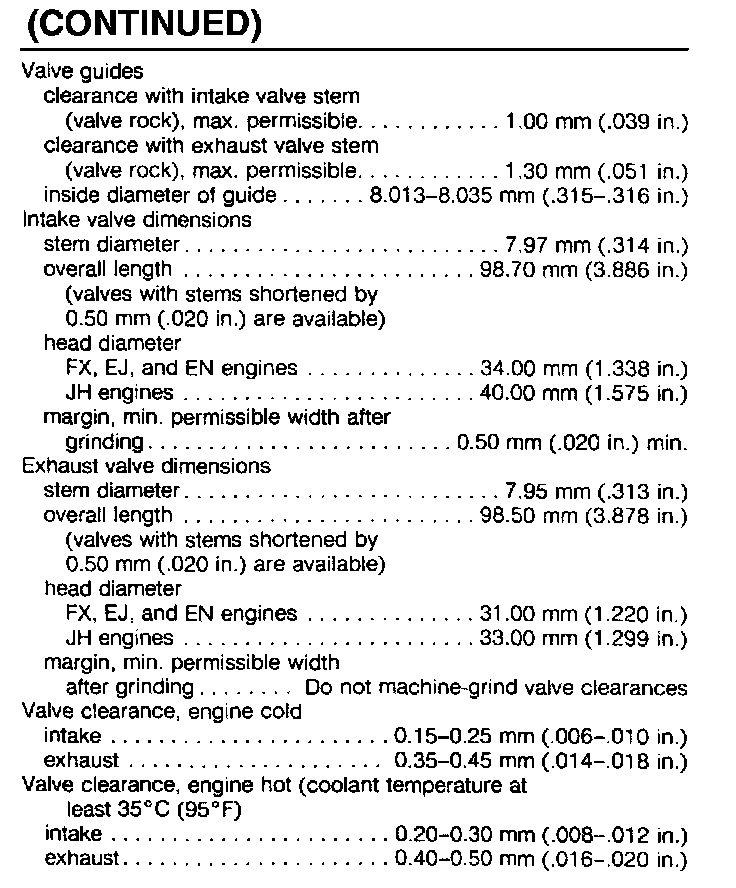

Continued:

Lubrication Specifications:

Cooling Specifications:

Drive Plate And Clutch Specifications:
