Alignment - Conversion Chart for Specifications
Group: 44Number: 91-05
Date: August 31, 1991
Subject:
Conversion Chart for Alignment Specifications
Model(s):
All models
Because of differences in various alignment machines, different types of measurement readings exist in the field.
As a rule, Toe-in and Camber are given in angular degrees. Some alignment machines display figures for the Toe-in in fractions of an inch or decimal inches or in millimeters. The equivalent angular degrees can easily be obtained from the tables.

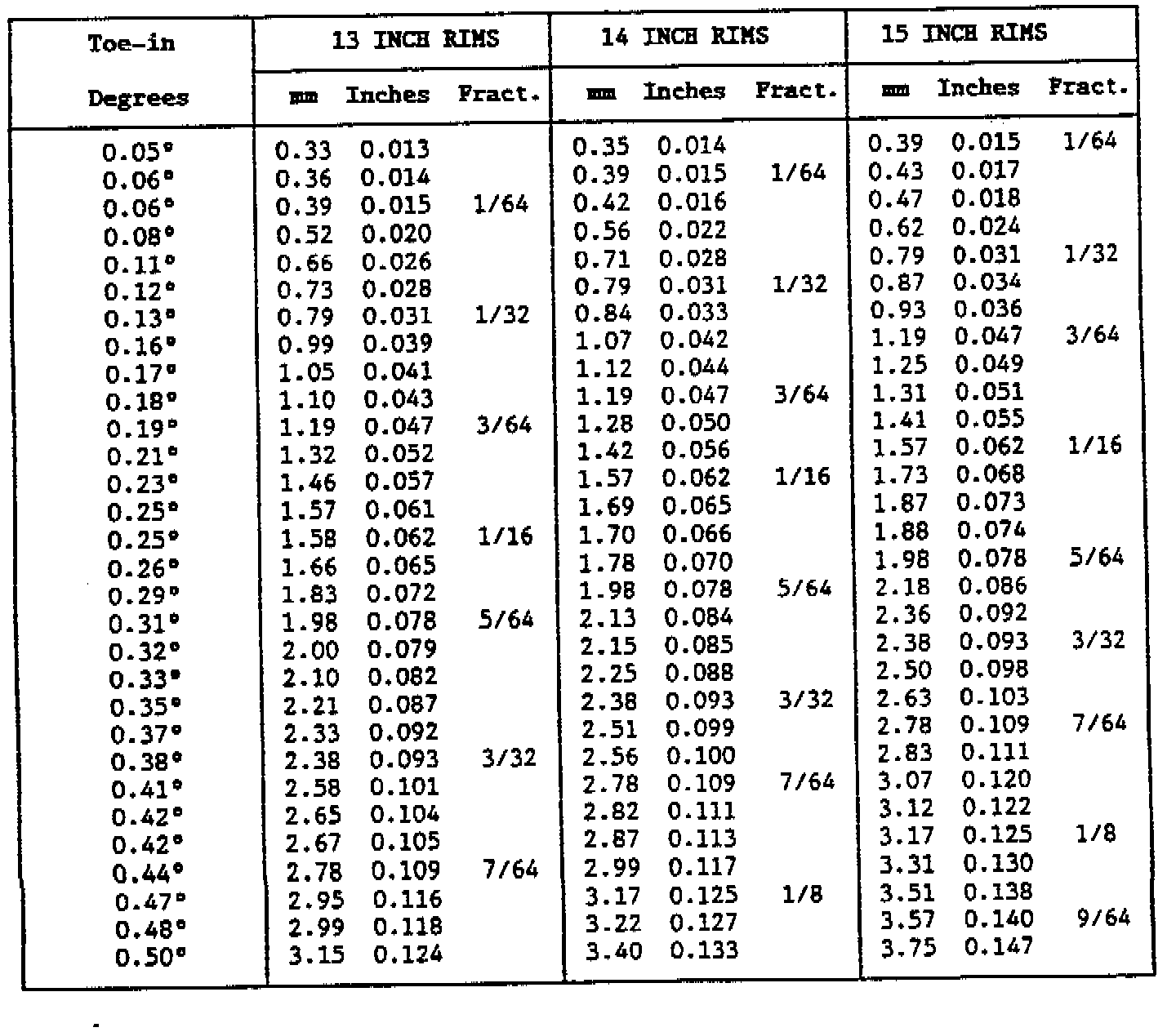

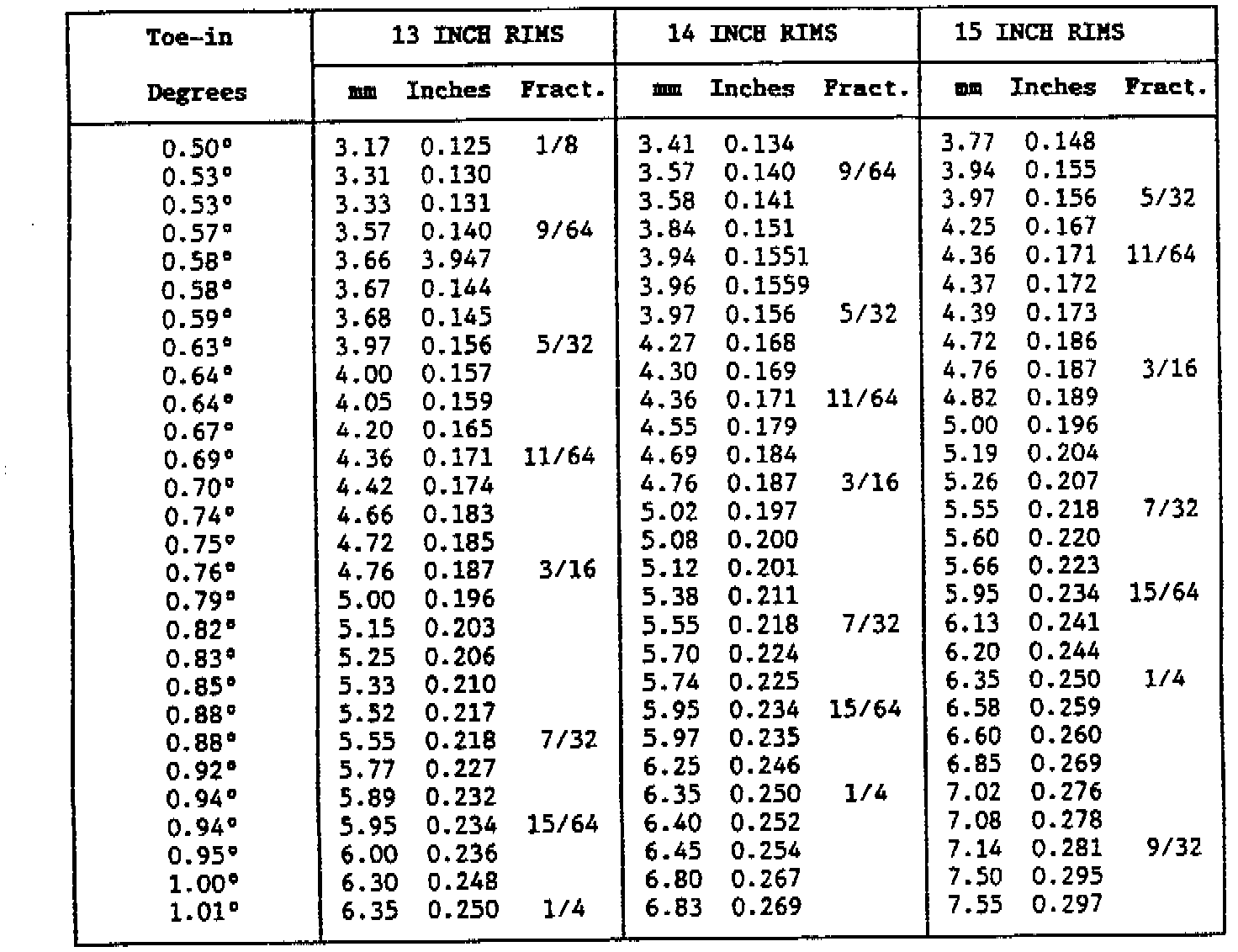

CONVERSION CHART FOR TOE-IN DIMENSIONS
Note
Toe-in degree values in the chart have been rounded off to the second decimal place
Additional Conversion Charts
To eliminate the confusion about converting specifications from degrees/minutes to degrees decimal and fractional inches to decimal inches and metric (mm) equivalents, use the conversion charts.
Decimal Degree to Minutes
Inches to Millimeters
