Timing Component Alignment Marks: Locations
Timing Component Alignment MarksDrive Belt Timing Marks - 8 Valve Engine:

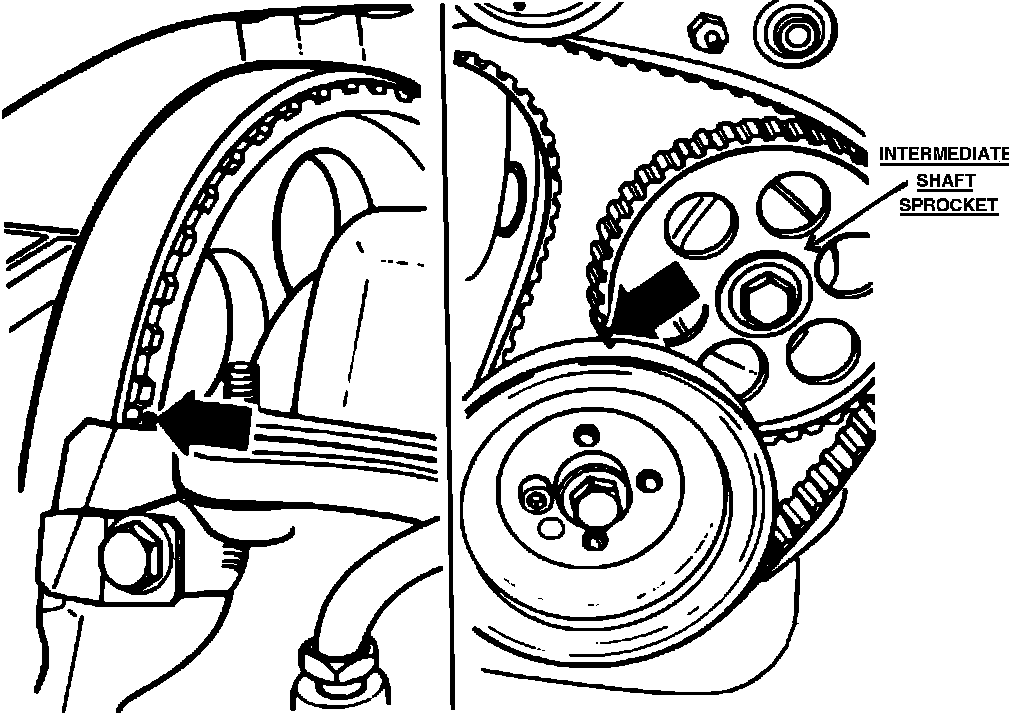

Align the mark (can be a dot or notch) on the intermediate shaft sprocket with the notch in the crank pulley. Align the mark (can be a dot or notch) on the "Back" of camshaft sprocket with the top edge of the valve cover gasket. Be sure all the timing marks are properly aligned.
For further information refer to Timing Belt : Service and Repair
Service and Repair
