Ignition Switch: Service and Repair

IGNITION SWITCH, REMOVING/INSTALLING

1. Remove steering lock housing. Service and Repair

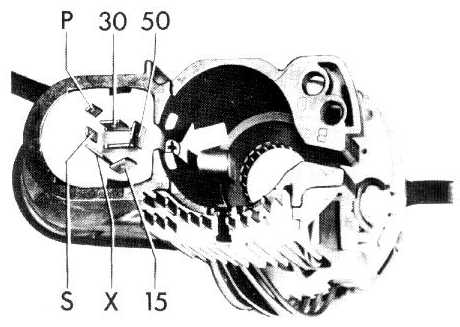

2. Remove screw (arrow) attaching ignition switch to lock housing assembly.
3. Remove ignition switch.
4. Reverse procedure to install.
5. Reset audio coded anti-theft system, if applicable.
