Electronic Spark Control Module: Locations

Ignition (Hall) Control Unit:

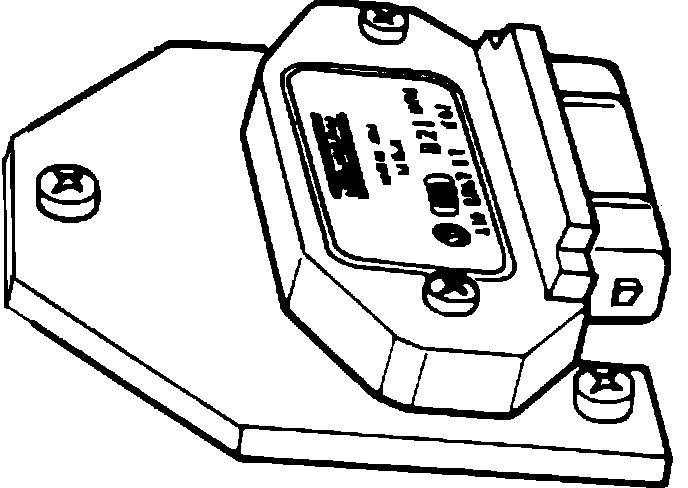

IGNITION (HALL) CONTROL UNIT
The control unit is located in the engine compartment, in the LH heater air intake cowl under the drip tray.
