Injector Resistance, Checking



Injector resistance, checking

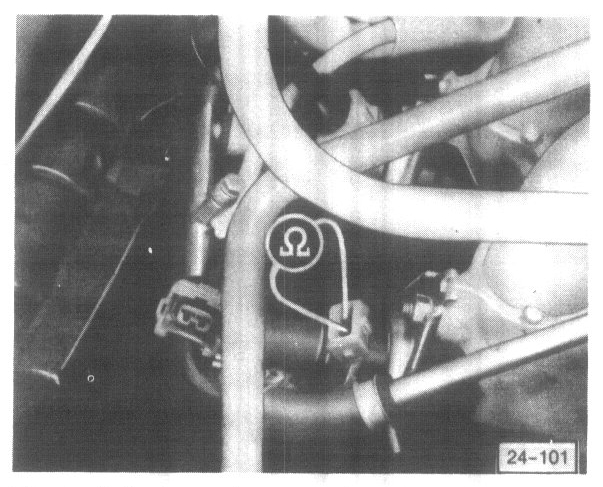

- Pull connector off injector and connect ohmmeter to injector.
Resistance should be 2-3 ohms

If NO, replace injector
