Injector Spray Pattern, Checking



Injector spray pattern, checking





- Remove injector but leave connected to fuel ring main

WARNING: Fire hazard. Do not smoke or have anything in area that can ignite fuel

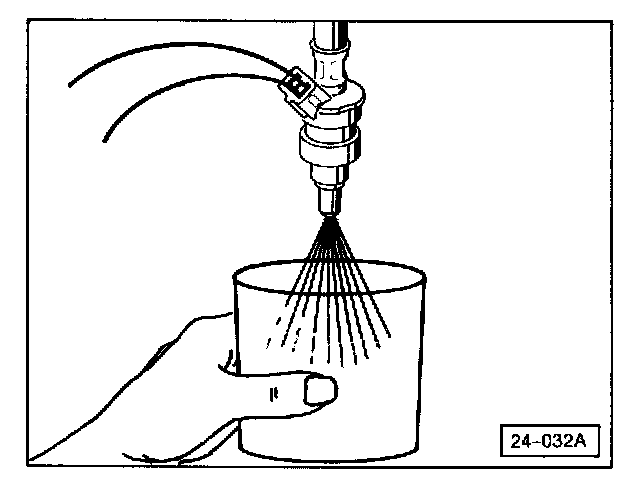

- Operate starter briefly spray pattern must be an even, cone-shaped spray
