System Component Layout

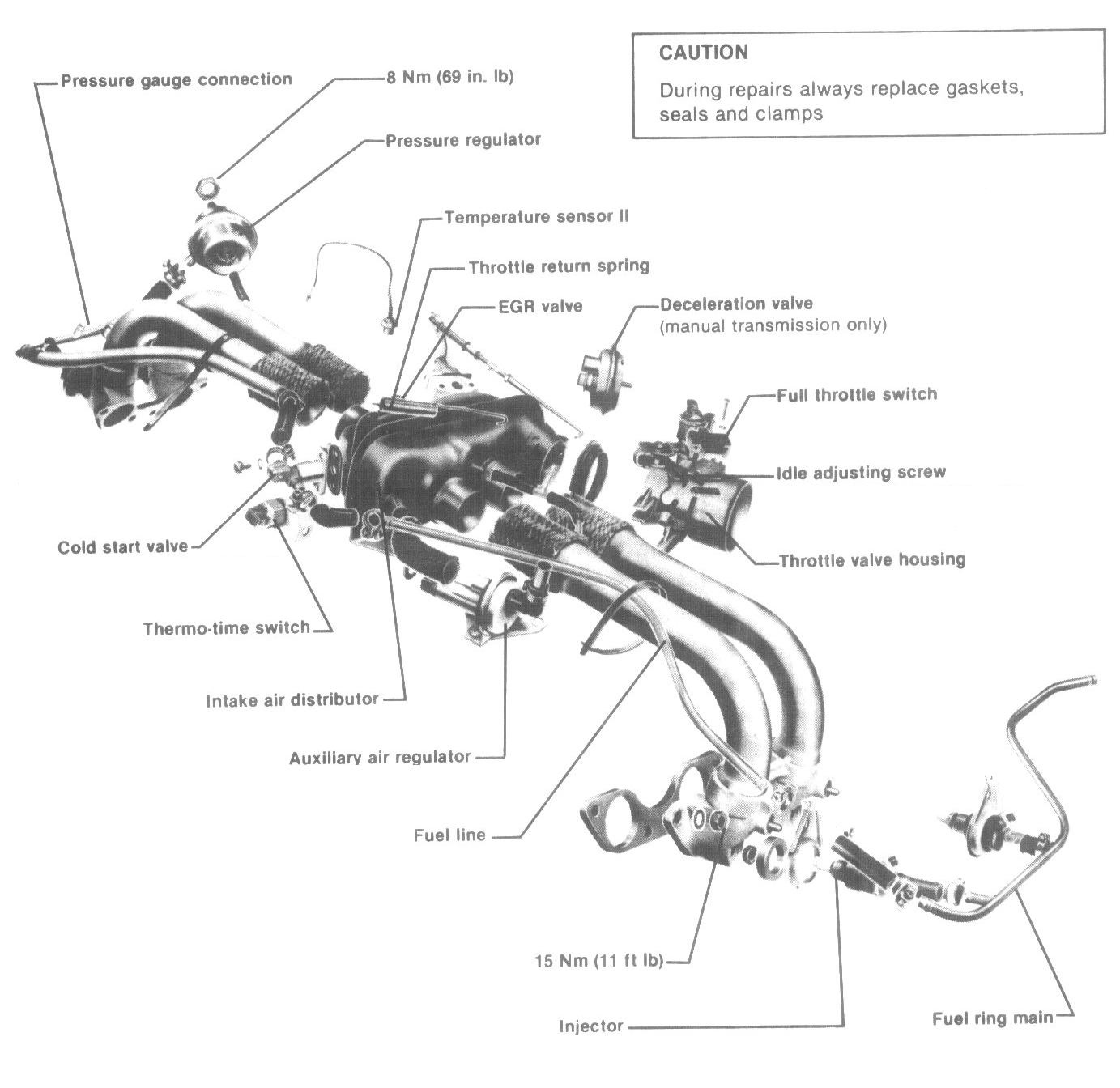

Engine Mounted Components:

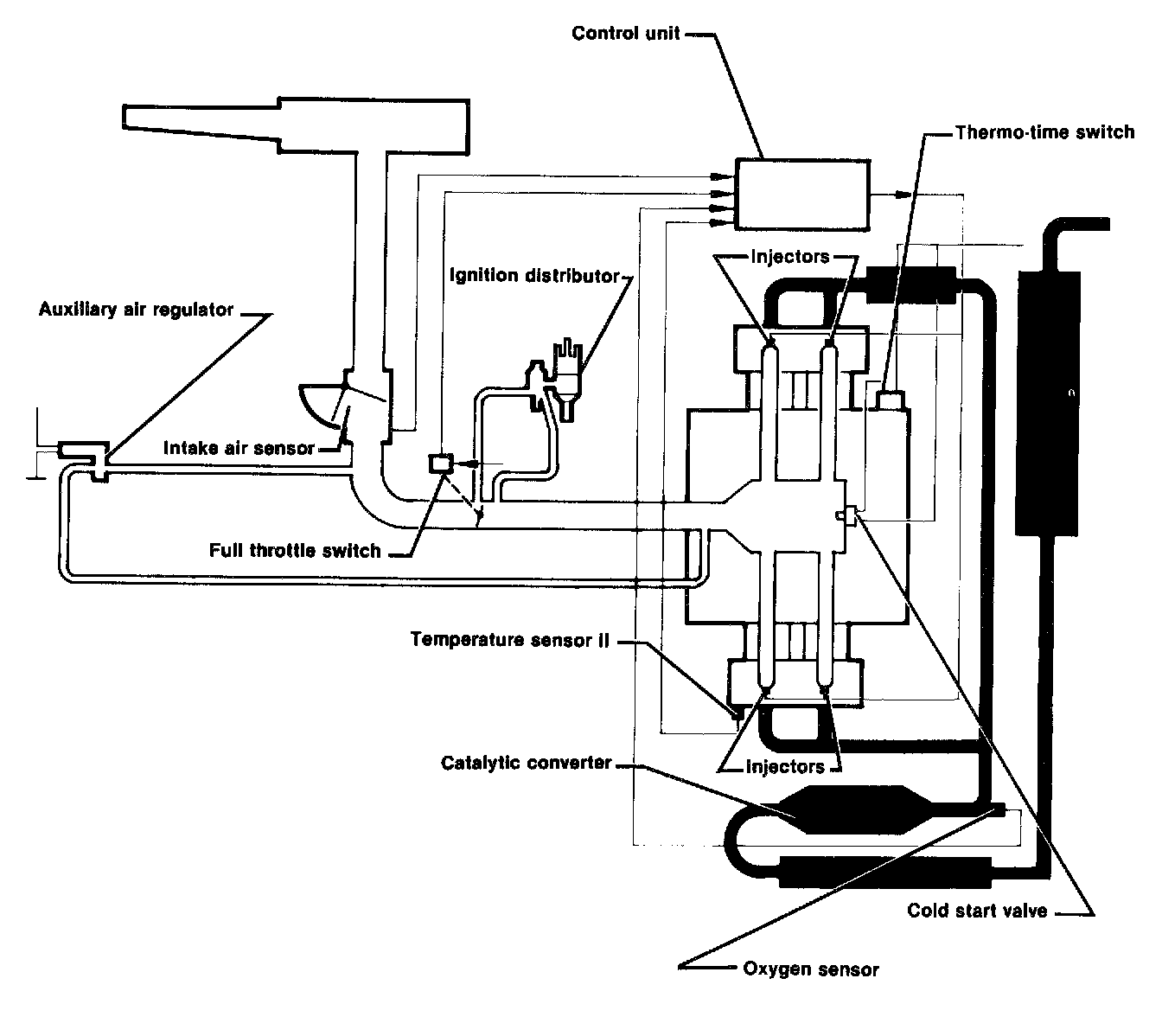

Canada And USA Except California:

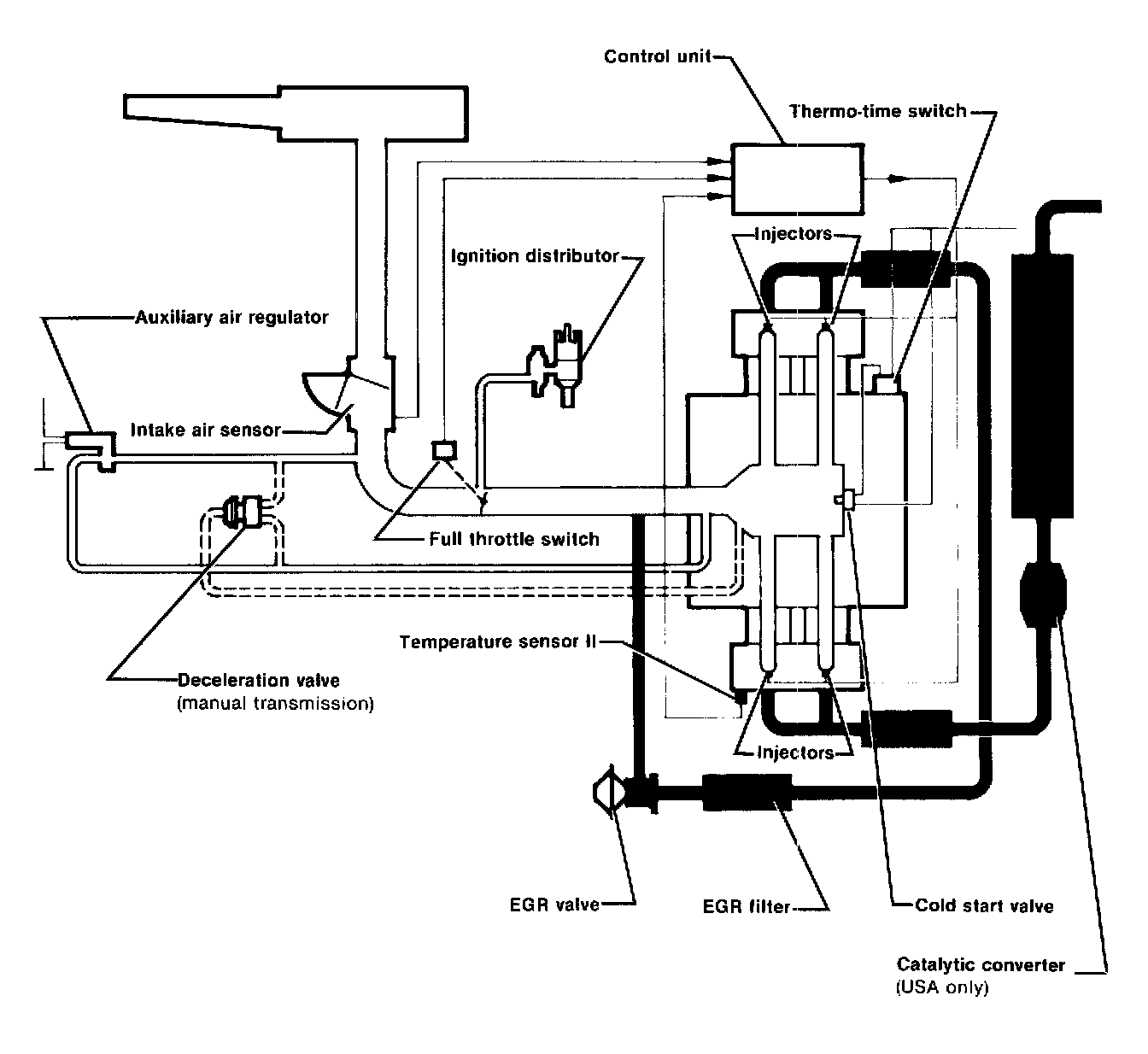

California Only:
