Quantum L5-2144cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Back View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Back View

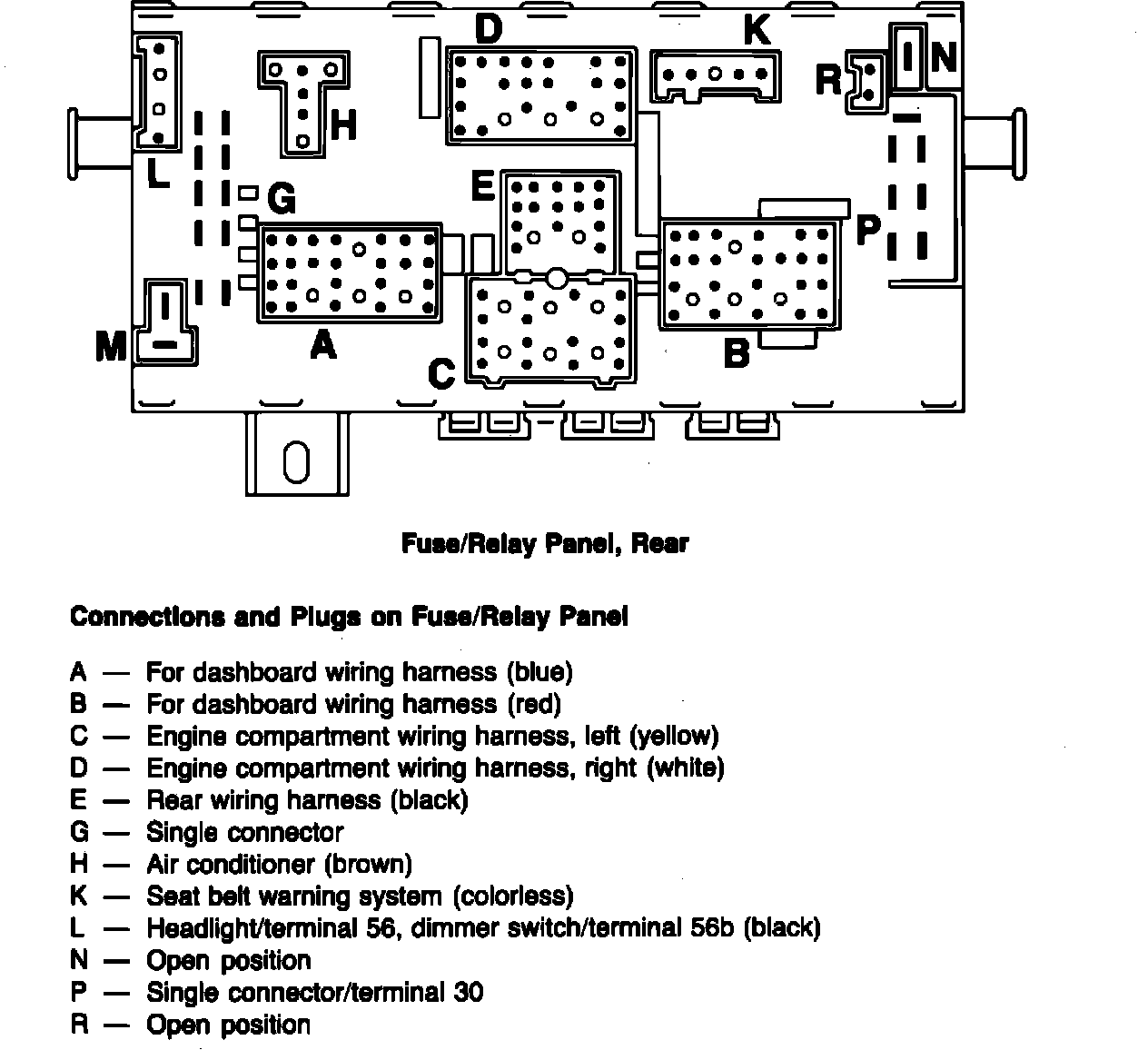

Fuse Panel Details (Rear):
