Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Unit | Under left side of dash. |
| Idle Stabilizer Control Unit | Left rear corner of engine compartment. |
| Ignition Control Unit | Left rear corner of engine compartment. |
| Oxygen Sensor Control Unit | Ahead of glove box. |

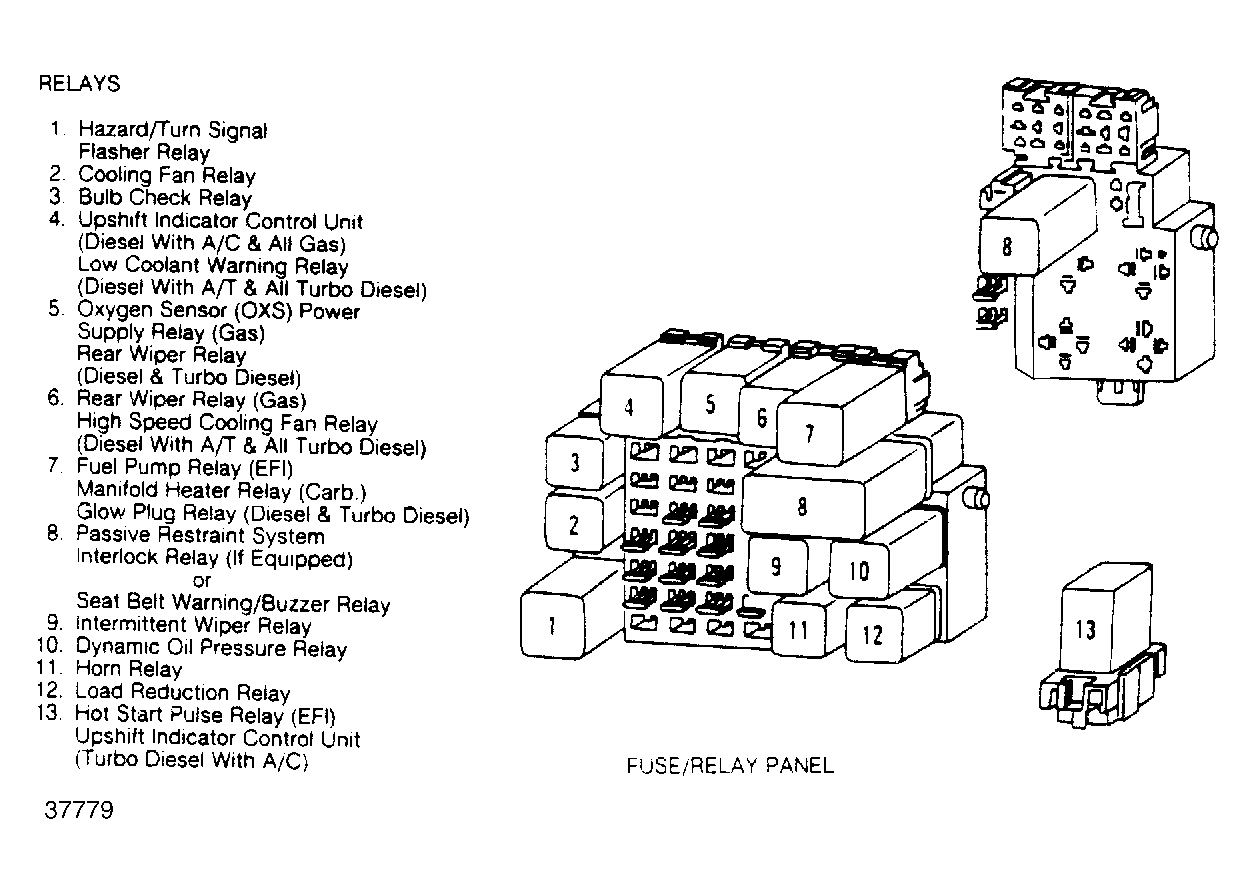

| Upshift Indicator Control Unit | On fuse/relay panel. See Figure . |
| Vacuum Control Unit | Attached to left upper strut tower. |
