Service Indicator & Warning Lights: Notes

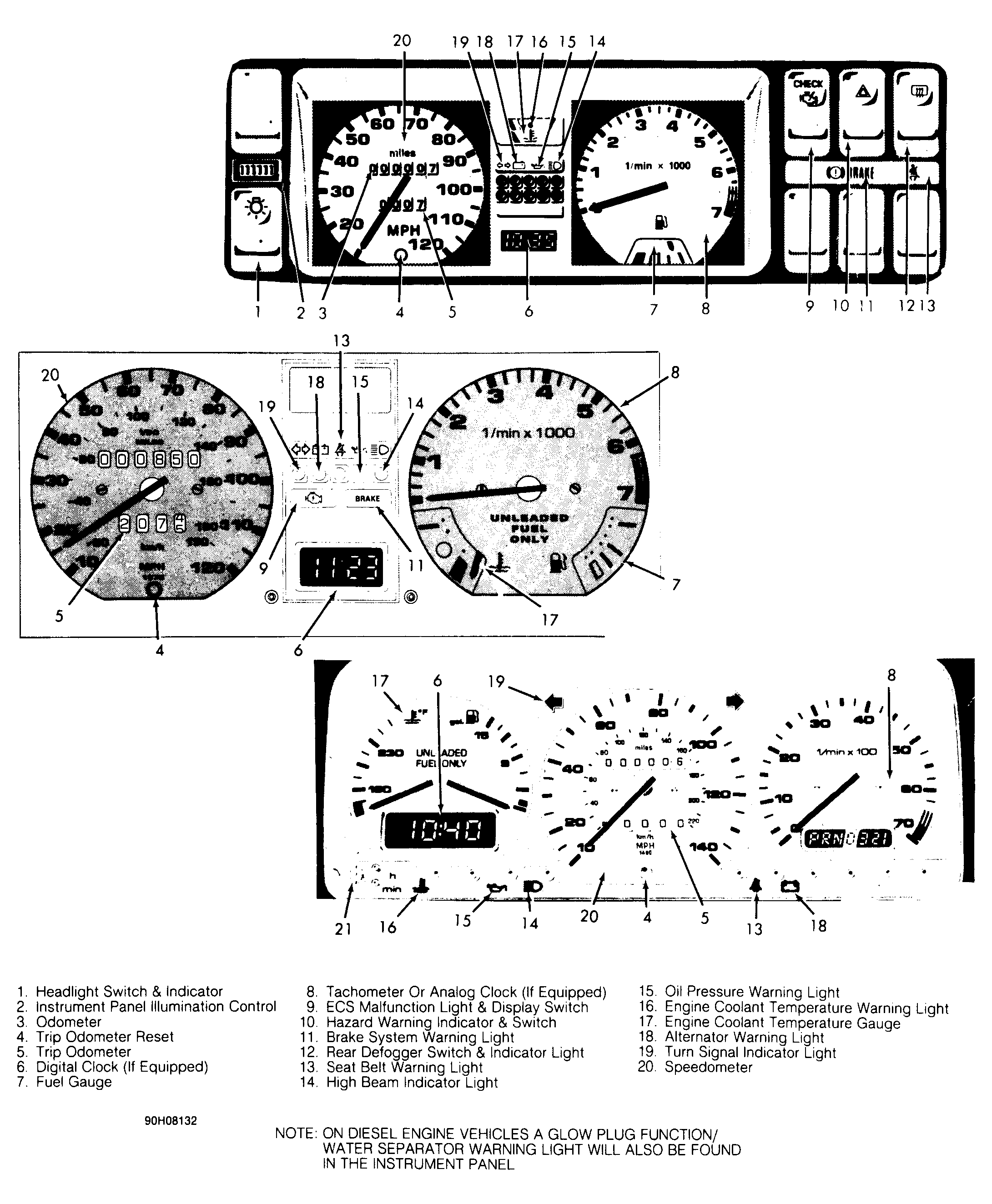

Fig 1: Dash Gauges & Warning Lights

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: The warning lights come on for a function test when the ignition is switched on. They should go out once the engine has started.
