Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Unit Under left side of dash.
Idle Stabilizer Control Unit (5-Cyl.) Left rear corner of engine compartment.
Ignition Control Unit Left rear corner of engine compartment.
Oil Pressure Control Unit Behind speedometer in instrument cluster.
Oxygen Sensor Control Unit In tray area at left rear of engine compartment.

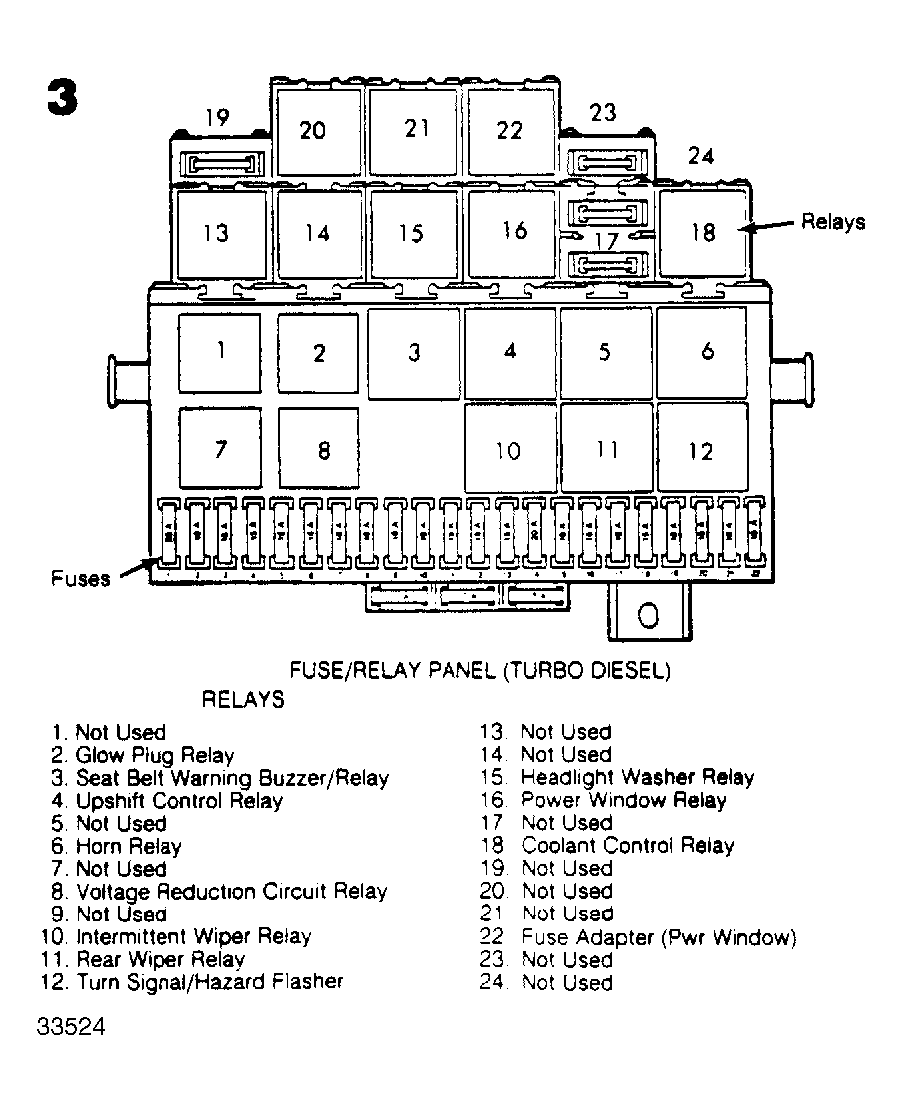

Upshift Indicator Control Unit Position 4 on fuse/relay panel. See Figure .
