Accelerator Cable

Make sure ball pin on pump lever is pointing upward and is centered in elongated hole of lever. Adjust cable with adjusting nuts until pump lever just contacts stop without strain on cable.

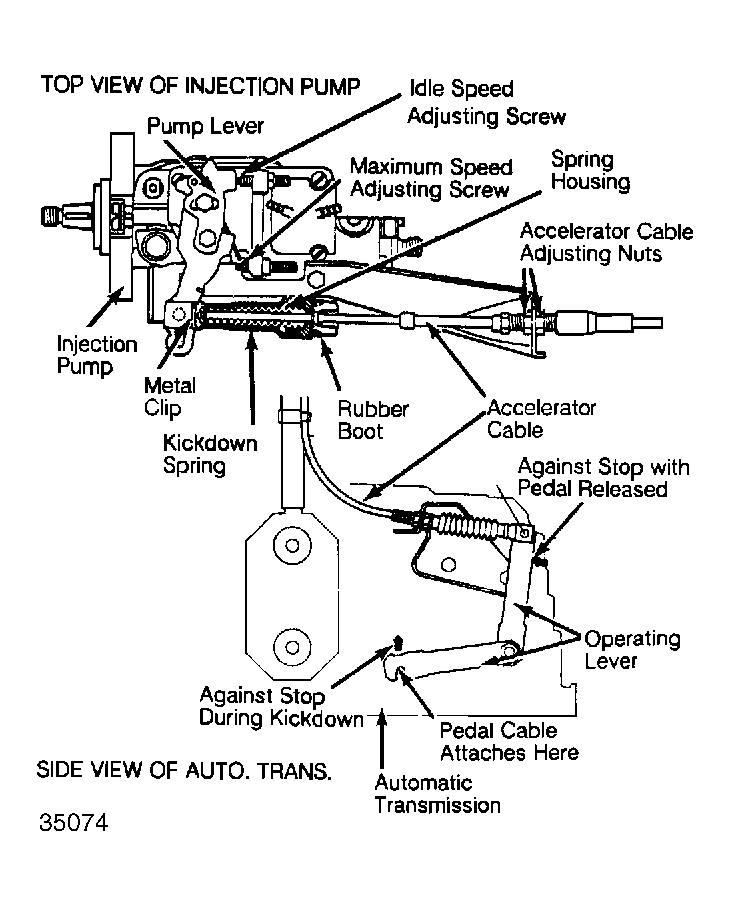

Fig 1: Accelerator Cable Adjusting Points Auto. Trans. model shown; Man. Trans. model has 1 cable.
G35074
