Intake Air Temperature Sensor, Checking

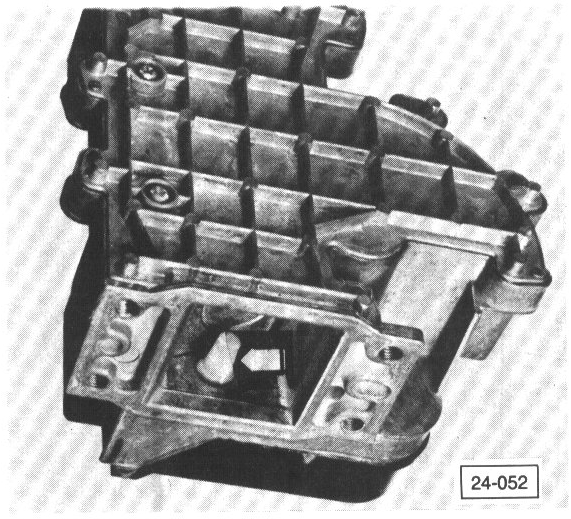

Temperature Sensor I is an integral part of the Intake Air Sensor Housing

Temperature Sensor I, checking





- Connect US 1119 multimeter to terminals 1 and 4
Multimeter reading should correspond to graph





Note: If specifications are not reached, replace intake air sensor and readjust idle speed/CO value
