Fuel Pump Volume Check

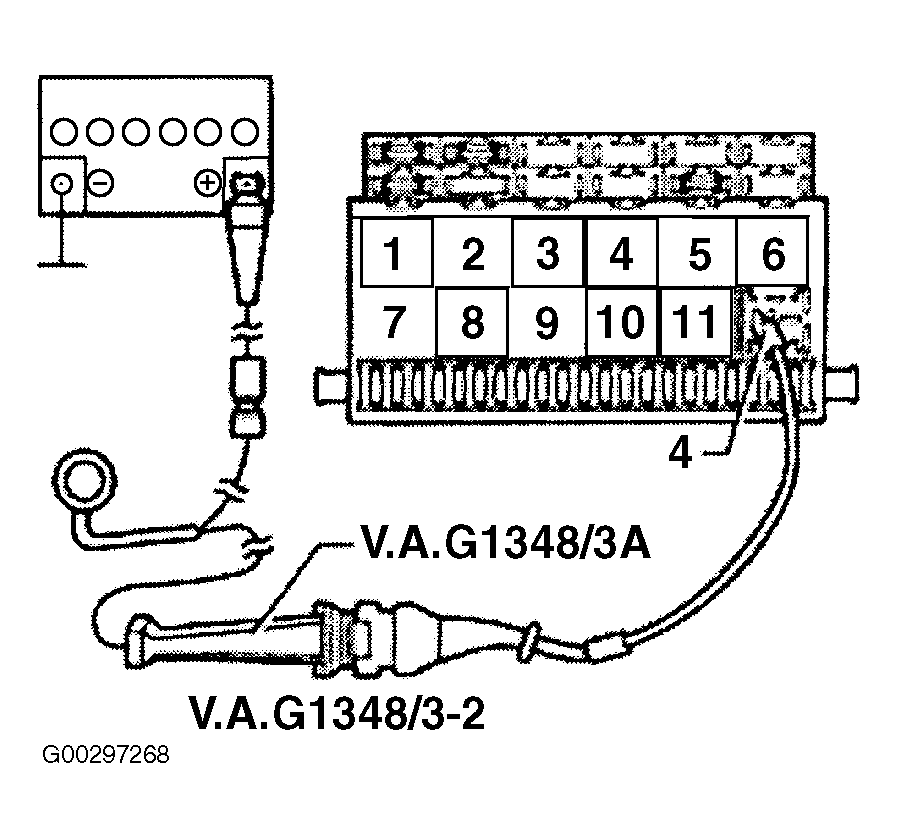

- Remove Fuel Pump (FP) relay from relay panel (position 12). See Fig 1
. Using a remote control or fused jumper wire connected between battery voltage and fuel pump relay socket cavity No. 4 activate fuel pump. At the same time, measure voltage and record fuel pump voltage when activating with remote control.

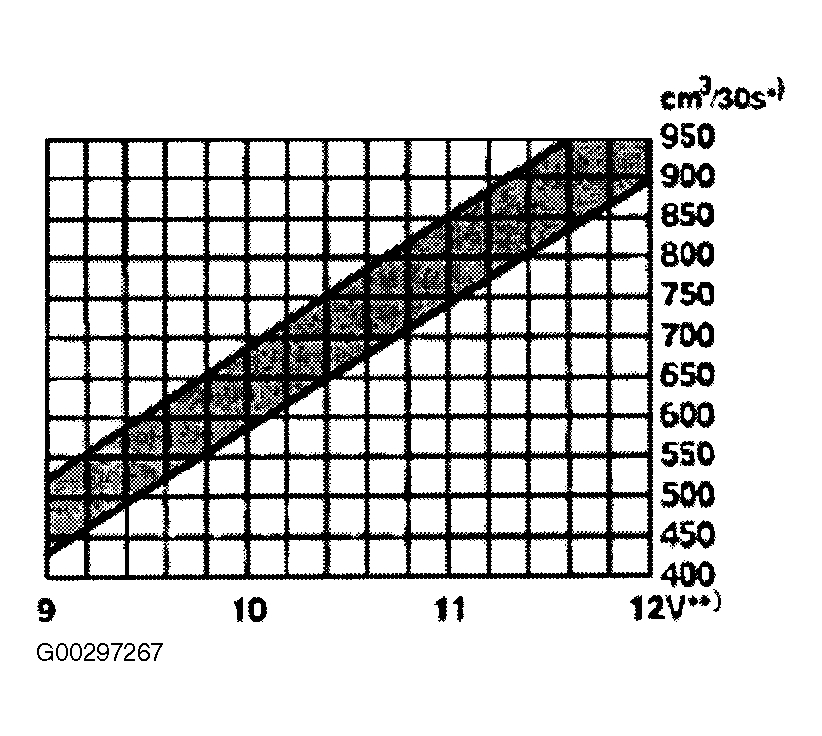

- Fuel volume is relative to voltage applied to fuel pump. Activate fuel pump for 30 seconds. Compare volume with values in illustration. See Fig 2
.
