Repair and Diagnosis: Transmission: Clutches: Identification

1992-2003 EuroVan is equipped with one of two manual transmissions. Use illustrations to identify transmission type. See Fig 1 and Fig 2 .

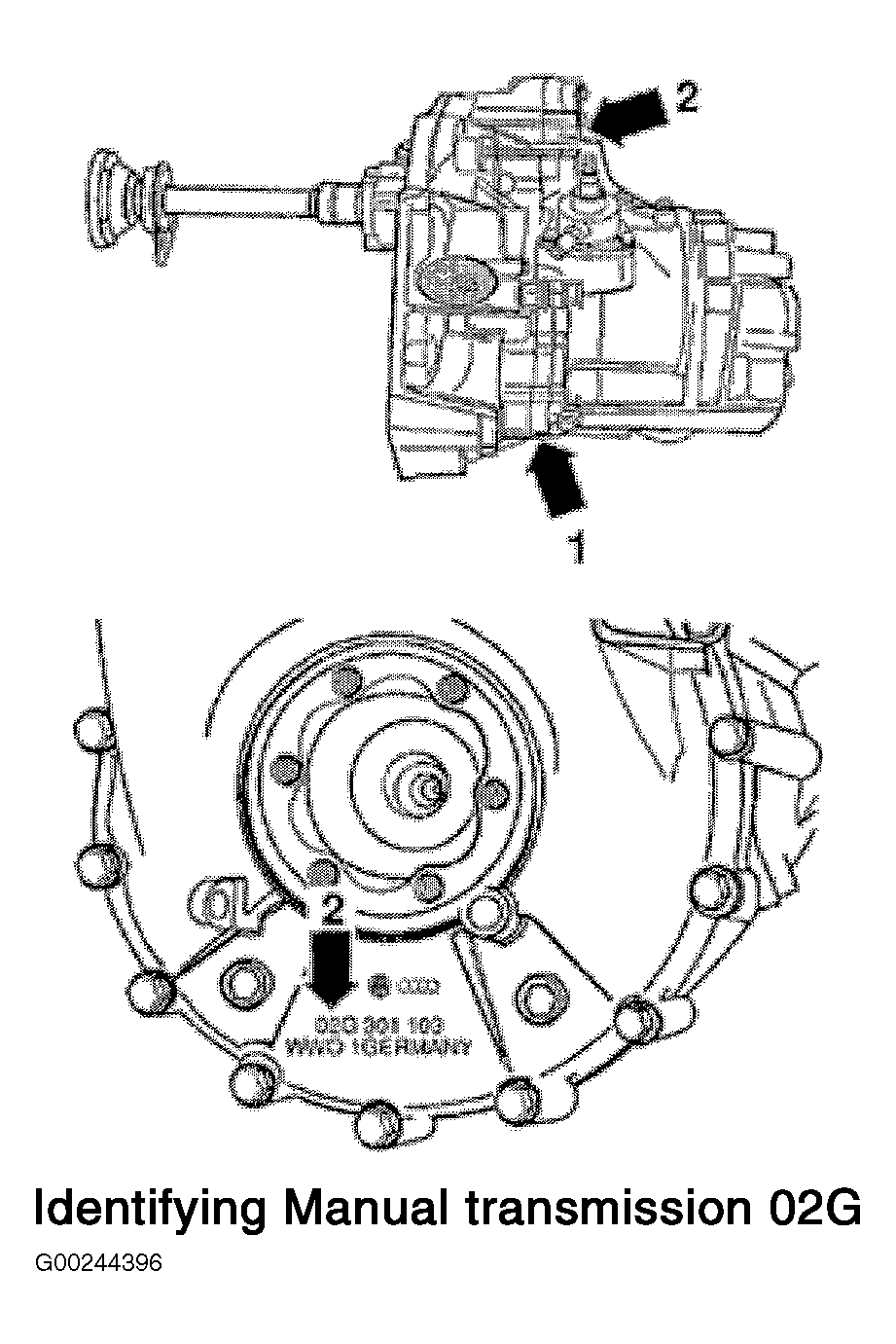

Fig 1: Identifying Manual Transmission 02G

Courtesy of VOLKSWAGEN UNITED STATES, INC.

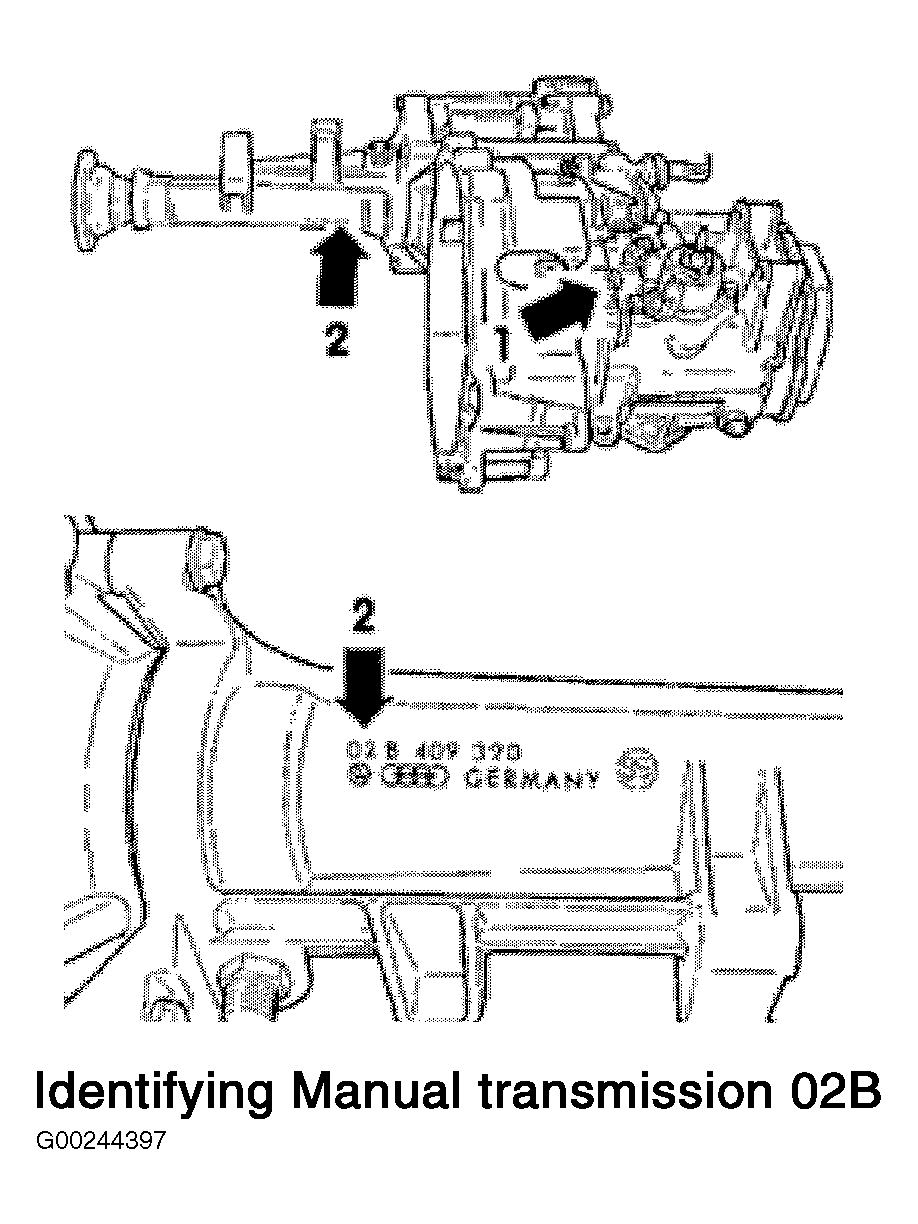

Fig 2: Identifying Manual Transmission 02B

Courtesy of VOLKSWAGEN UNITED STATES, INC.
