Locations Of Electrical/Electronic Components: Notes

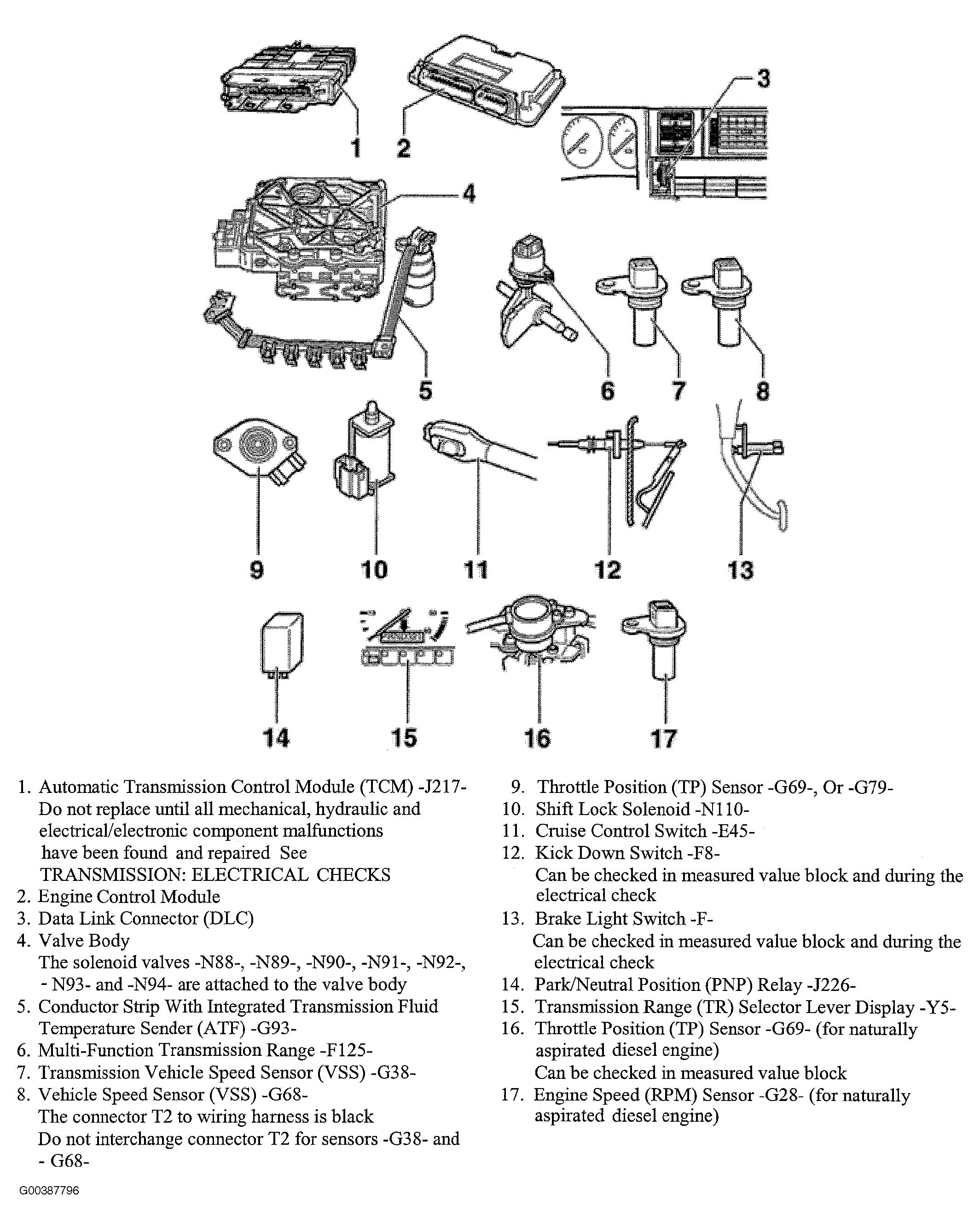

Fig 1: Locations Of Electrical/Electronic Components
G00387796Courtesy of VOLKSWAGEN UNITED STATES, INC.
