Overview Of Input Gear Components

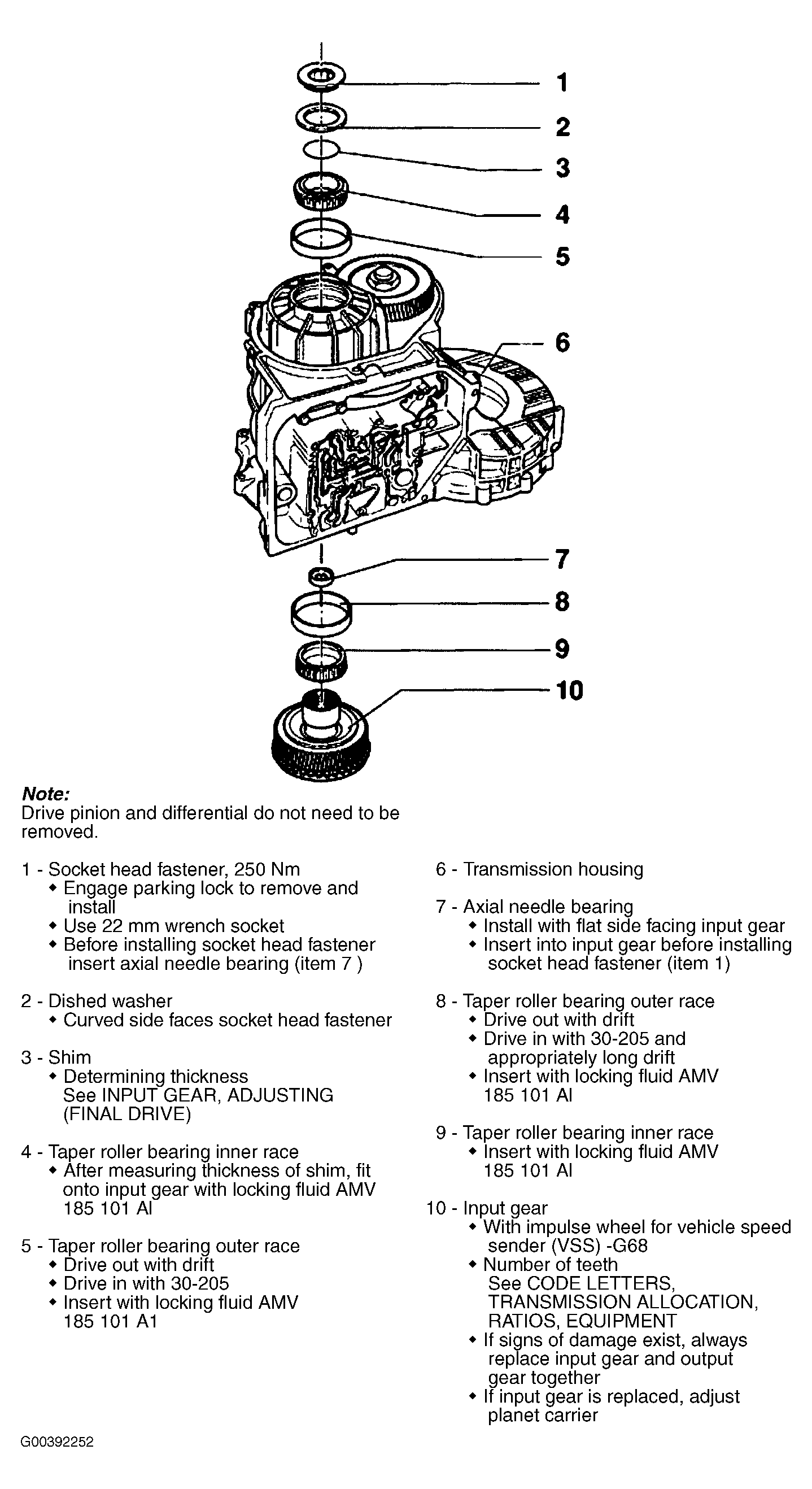

Fig 1: Overview Of Input Gear Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
