Removing And Installing Automatic Transmission Control Module (TCM) -J217-

Remove relay plate cover and unhook relay plate. See Fuse/Relay Panel, Removing And Installing  .

Switch ignition off, release multi-pin connector in direction of arrow and pull out of control module. See Fig 1 .

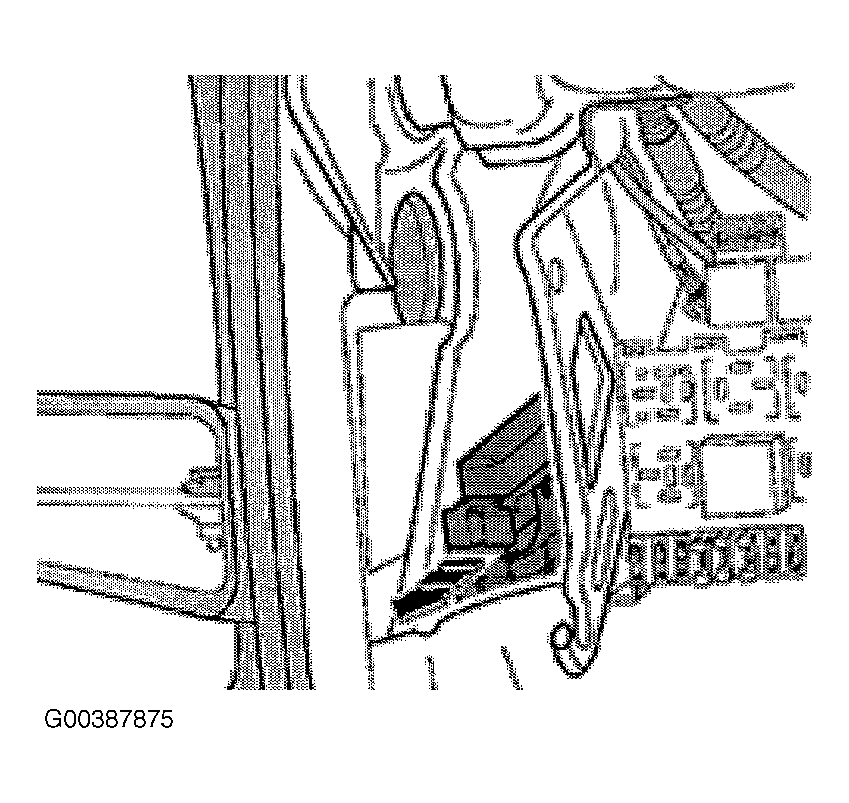

Fig 1: Removing Automatic Transmission Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove control module.

Installation is performed in the reverse order.
