| Cover Plate-To-Transaxle Bolt |
11 (15) |
| Drive Axle-To-Wheel Hub Bolt |
111 (150) |
| Flex Plate (Drive Plate)-To-Crankshaft Bolt |
| Step 1 |
44 (60) |
| Step 2 |
Turn Additional 90 Degrees |

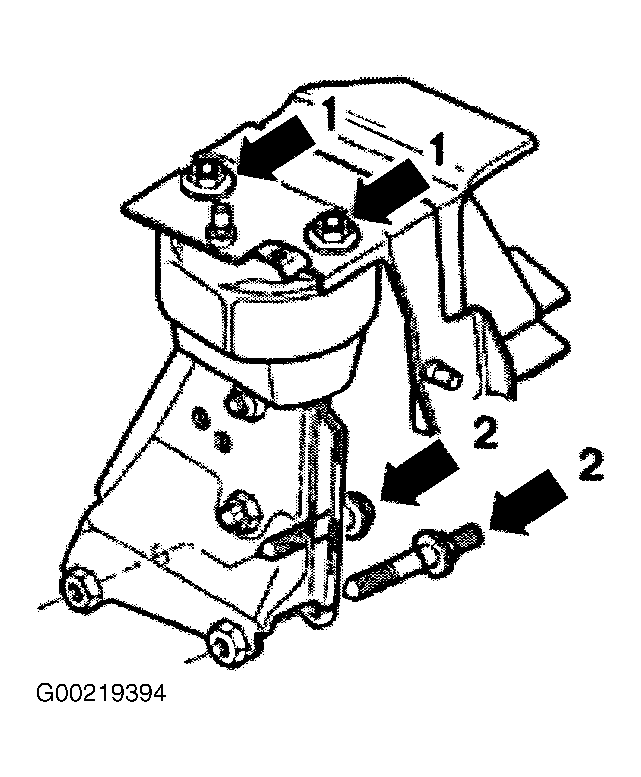

| Left Hand Transaxle Mount |
| Bolt |
37 (50) |
| Nut |
41 (55) |

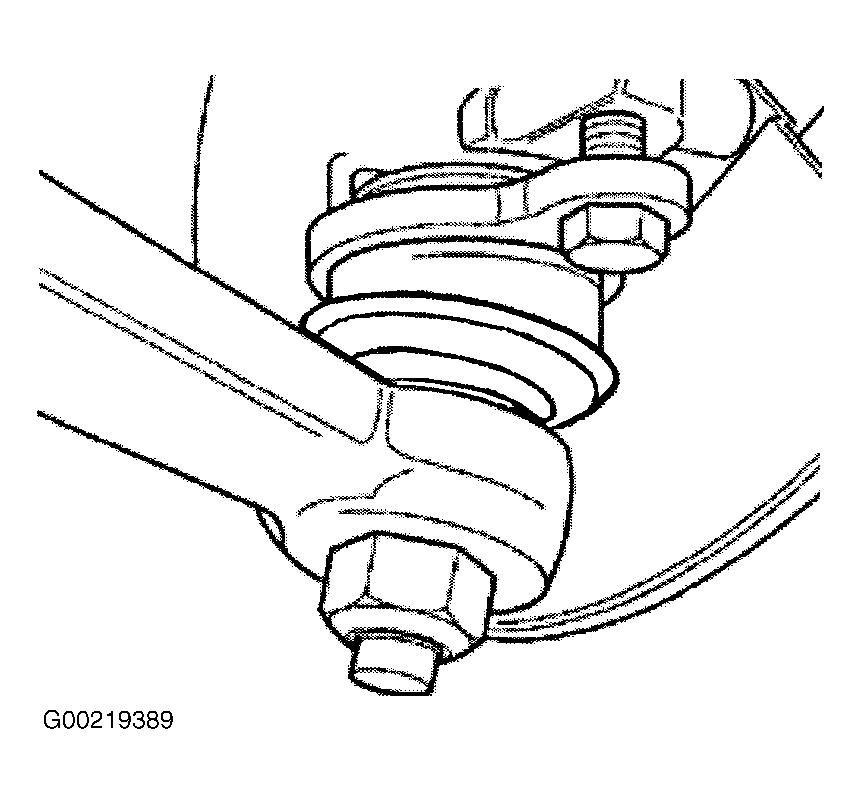

| Lower Control Arm-To-Wheel Bearing Housing Bolt |
66 (90) |
| Torque Converter-To-Drive Plate Nut |
44 (60) |

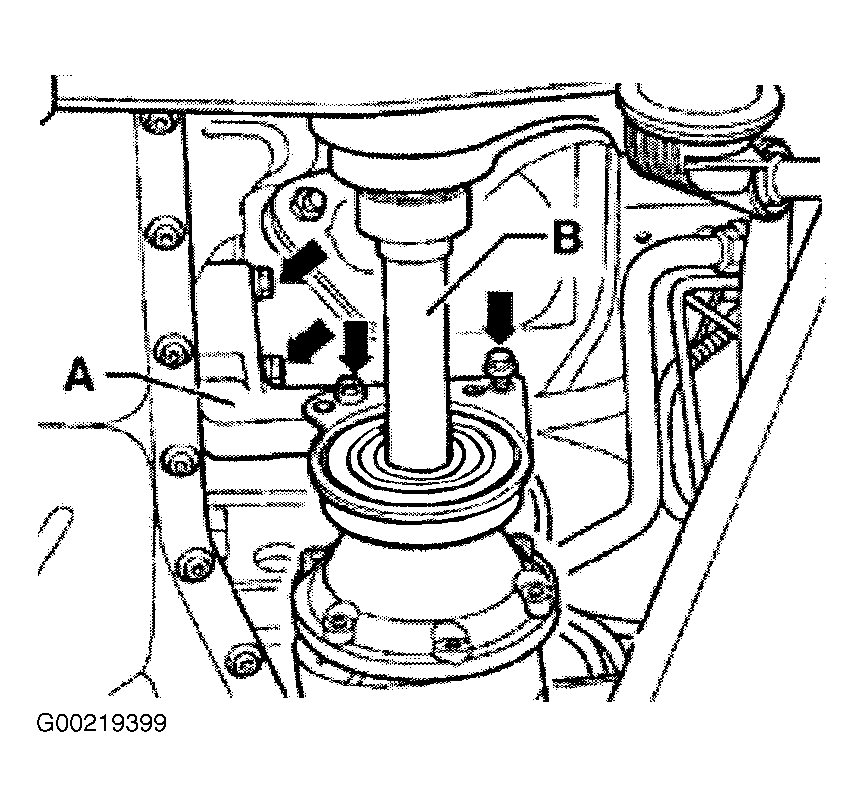

| Transaxle Carrier Flanged Shaft Bearing-To-Engine Bolt |
30 (40) |
| Transaxle Carrier Flanged Shaft Bearing-To-Flange Bolt |
18 (25) |
| Transaxle Mounting-To-Bearing Housing Bolt |
18 (25) |
| Transaxle Mounting-To-Engine Bolt |
30 (40) |
| Transaxle-To-Engine Bolt |
| M 8 Bolt |
17 (23) |
| M 10 Bolt |
44 (60) |
| M 12 Bolt |
59 (80) |
