Surface Variation







Permissible distortion
- Maximum: 0.1 mm

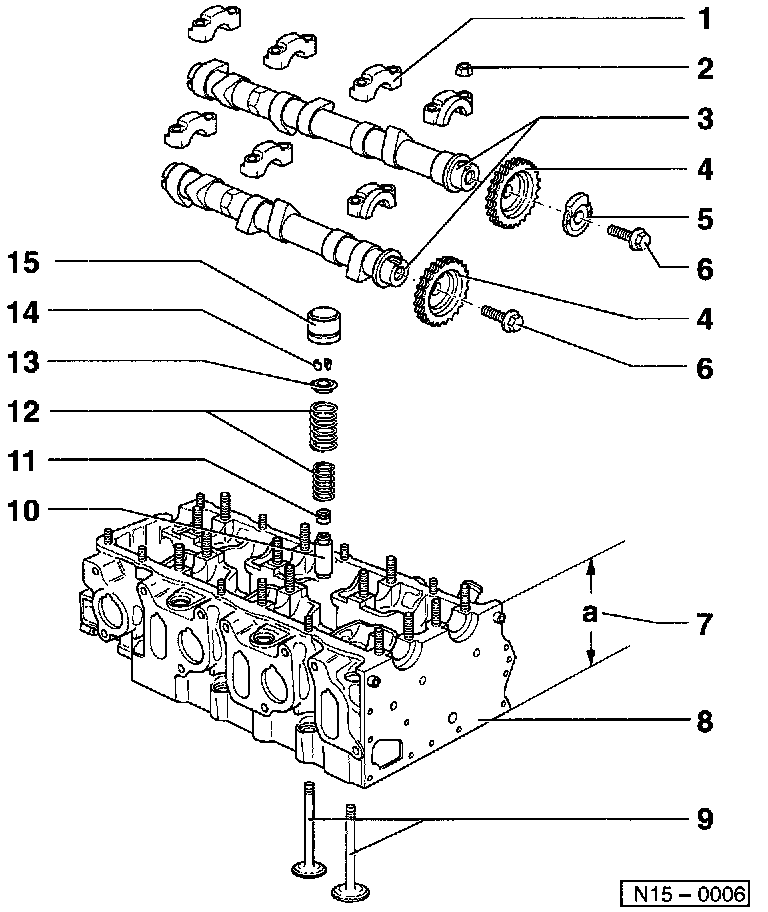

Cylinder head deck height (7)
- Minimum: a = 139.5 mm
