Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Auxiliary Fuse Holder Above fuse/relay panel.

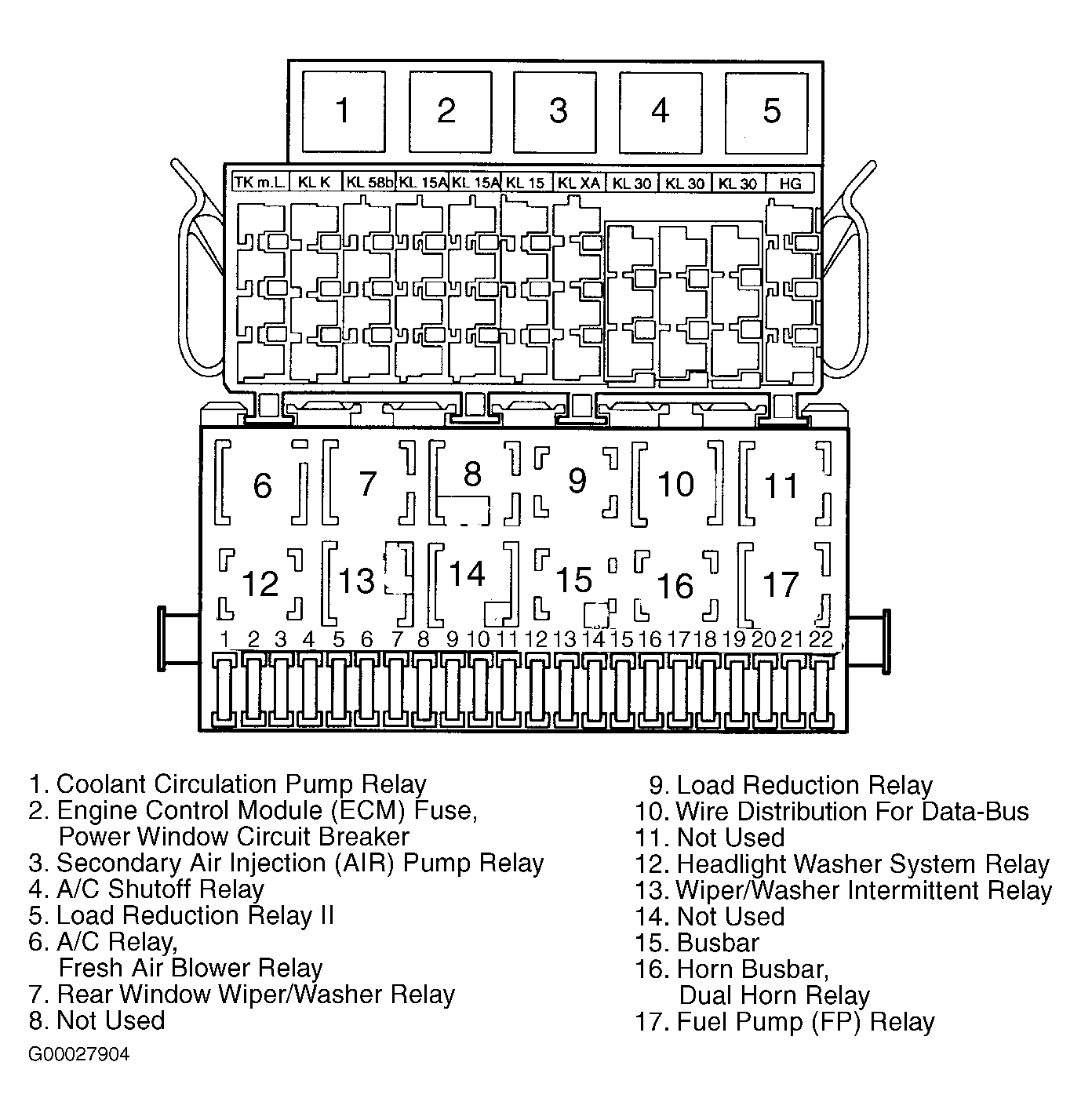

Engine Control Module (ECM) Fuse On fuse/relay panel. See Figure.
Fuse Holder A On battery.
Fuse Holder B Below fuse/relay panel.
Fuse/Relay Panel Behind left side of dash.
Power Window Circuit Breaker On fuse/relay panel. See Figure.
