Overview Of Final Drive Adjusting

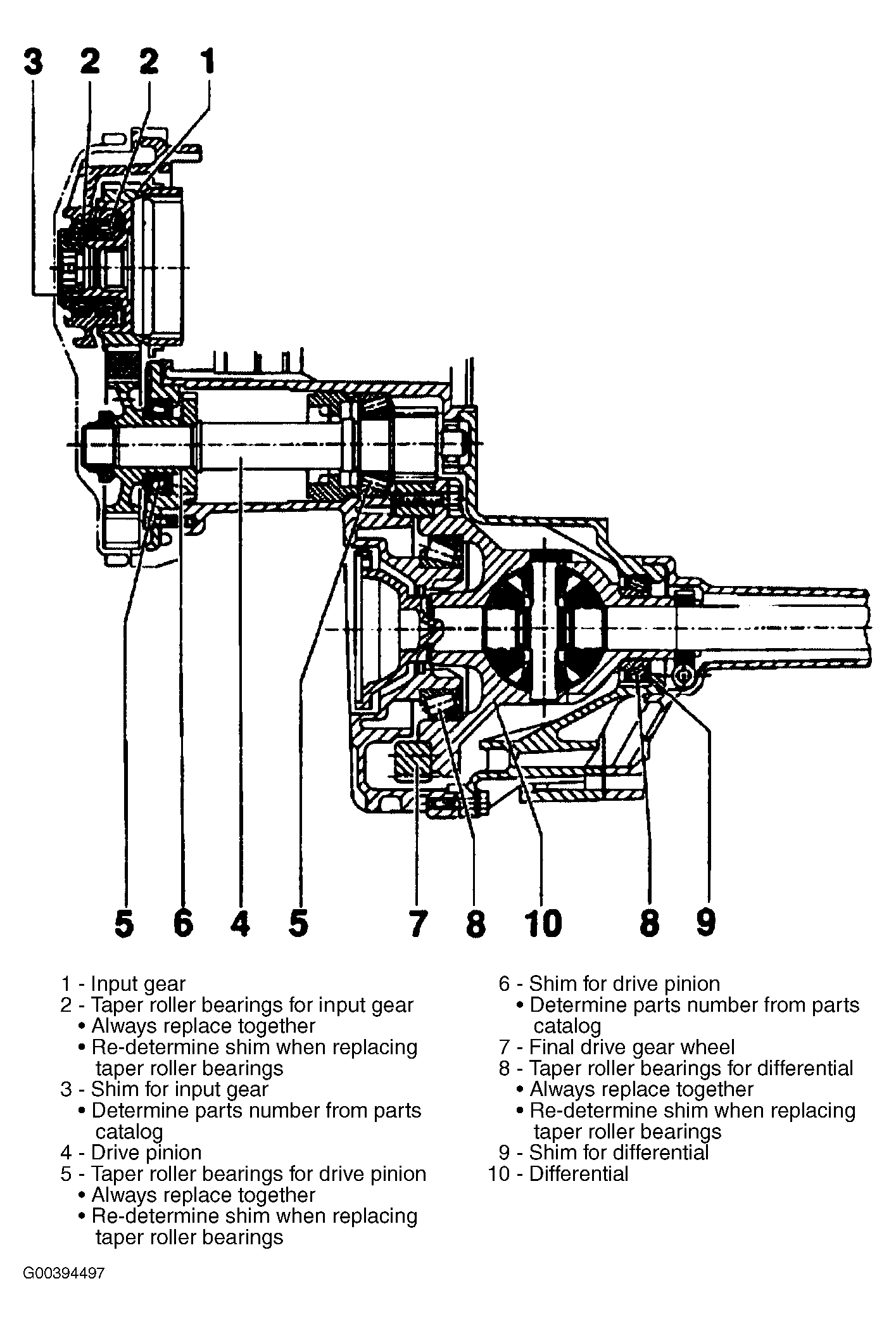

Fig 1: Overview Of Final Drive Adjusting
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
