Vacuum Diagrams: Introduction: CABRIO

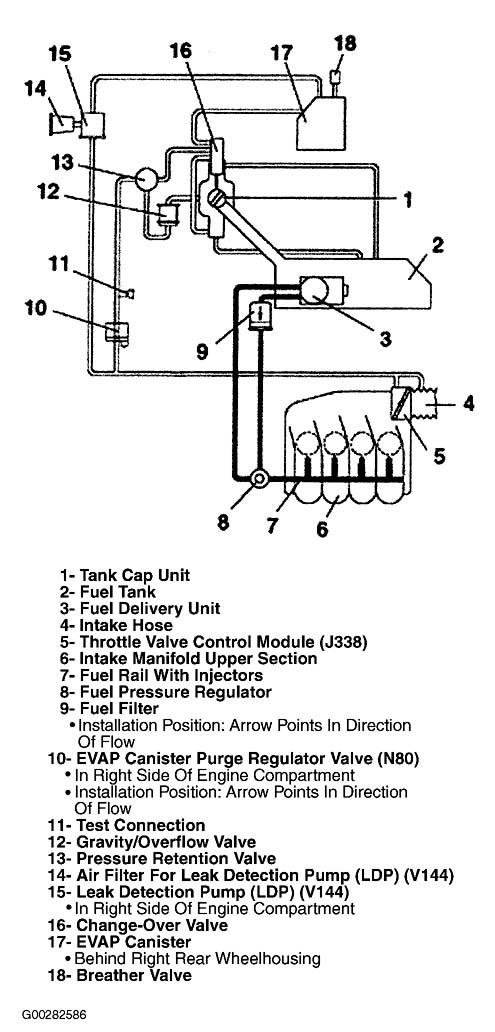

Fig 1: Vacuum Diagram EVAP System
G00282586Courtesy of VOLKSWAGEN UNITED STATES, INC.

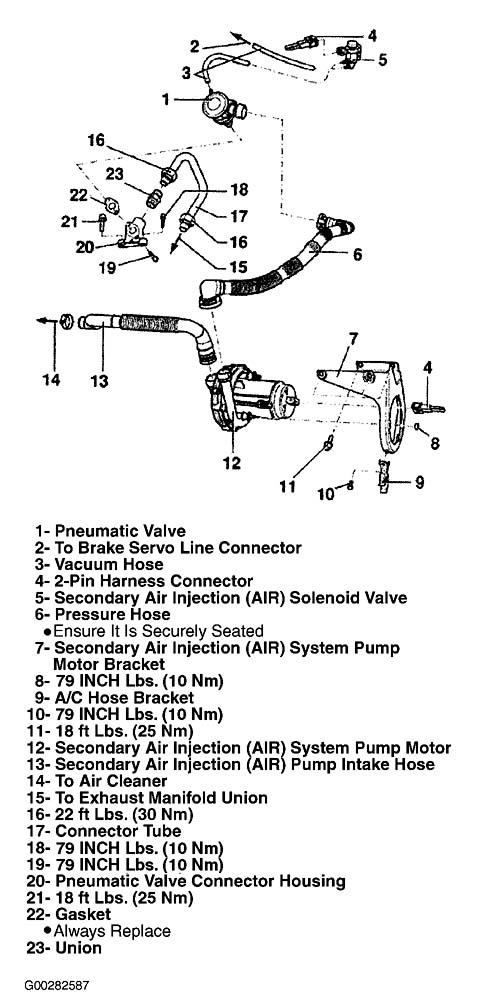

Fig 2: Vacuum Diagram Secondary Air Injection System
G00282587Courtesy of VOLKSWAGEN UNITED STATES, INC.
