Adjusting Window Guide
- Remove side trim and sealing film. See DOOR TRIM
.

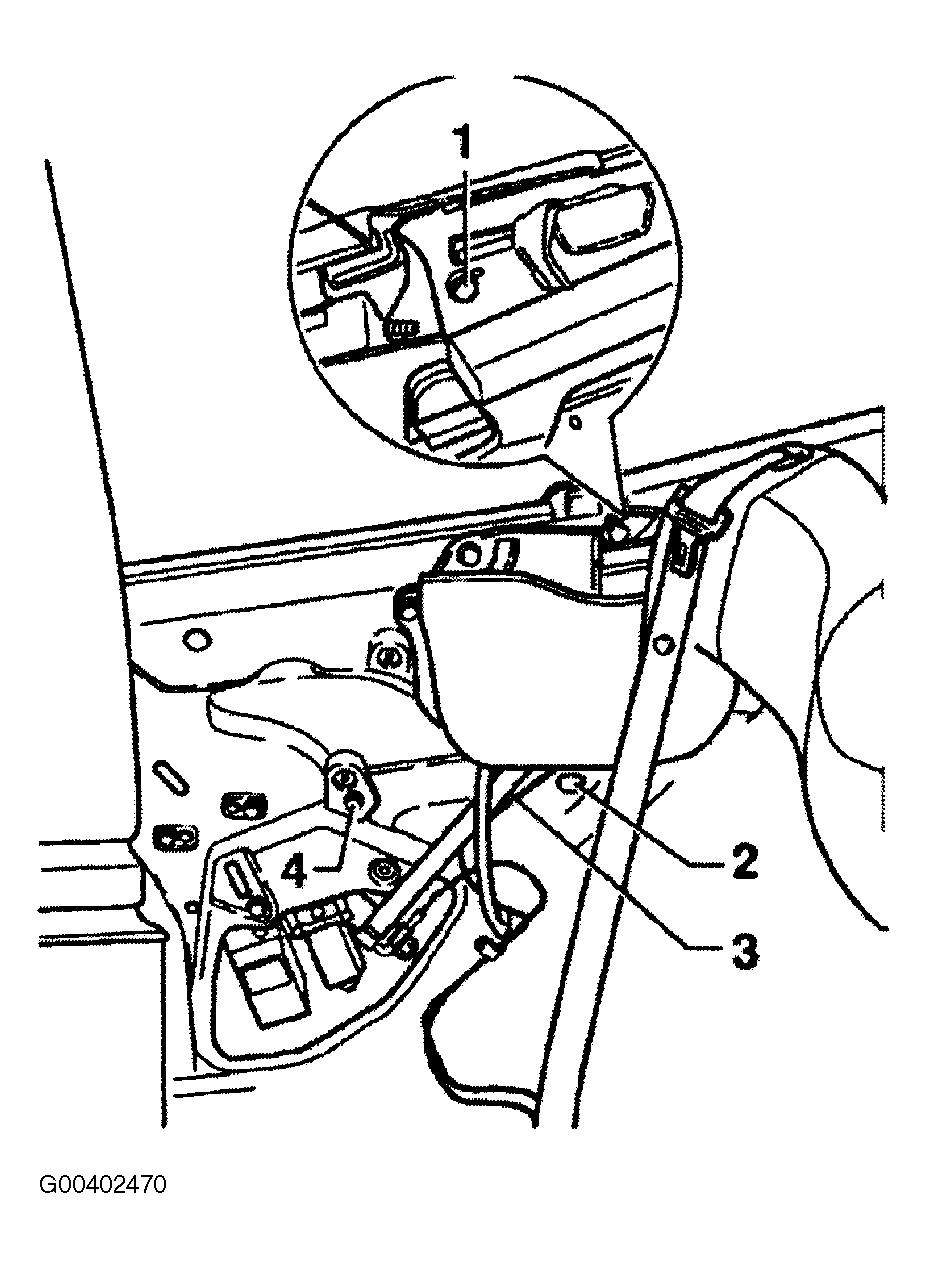

- Loosen window rear guide bolts (1 and 2). See Fig 1
.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Loosen bolts (3 and 4).
- Raise side window to approximately 50 mm (1.97 in.) below raised position (for better stabilization).
- Press side window into window guide (arrow B).
- Press window guide top lightly against window. Tighten bolt (1) to 89 INCH lbs. (10 N.m).
- Lower side window but not completely, press lower window guide lightly against window and tight bolt (2) to 89 INCH lbs. (10 N.m).
