Power Windows, Left & Right Front Checking
Test conditions:
- Battery voltage OK
- Circuit breaker S 43 OK
- Fuse S 14 on fuse/relay panel OK
- Power windows mechanically OK
NOTE:
- Use Connector Test Kit VW 1594 to make all necessary electrical connections.
- For terminal designation of 32-point connector in A-pillar left or right, see COMPONENT LOCATIONS .

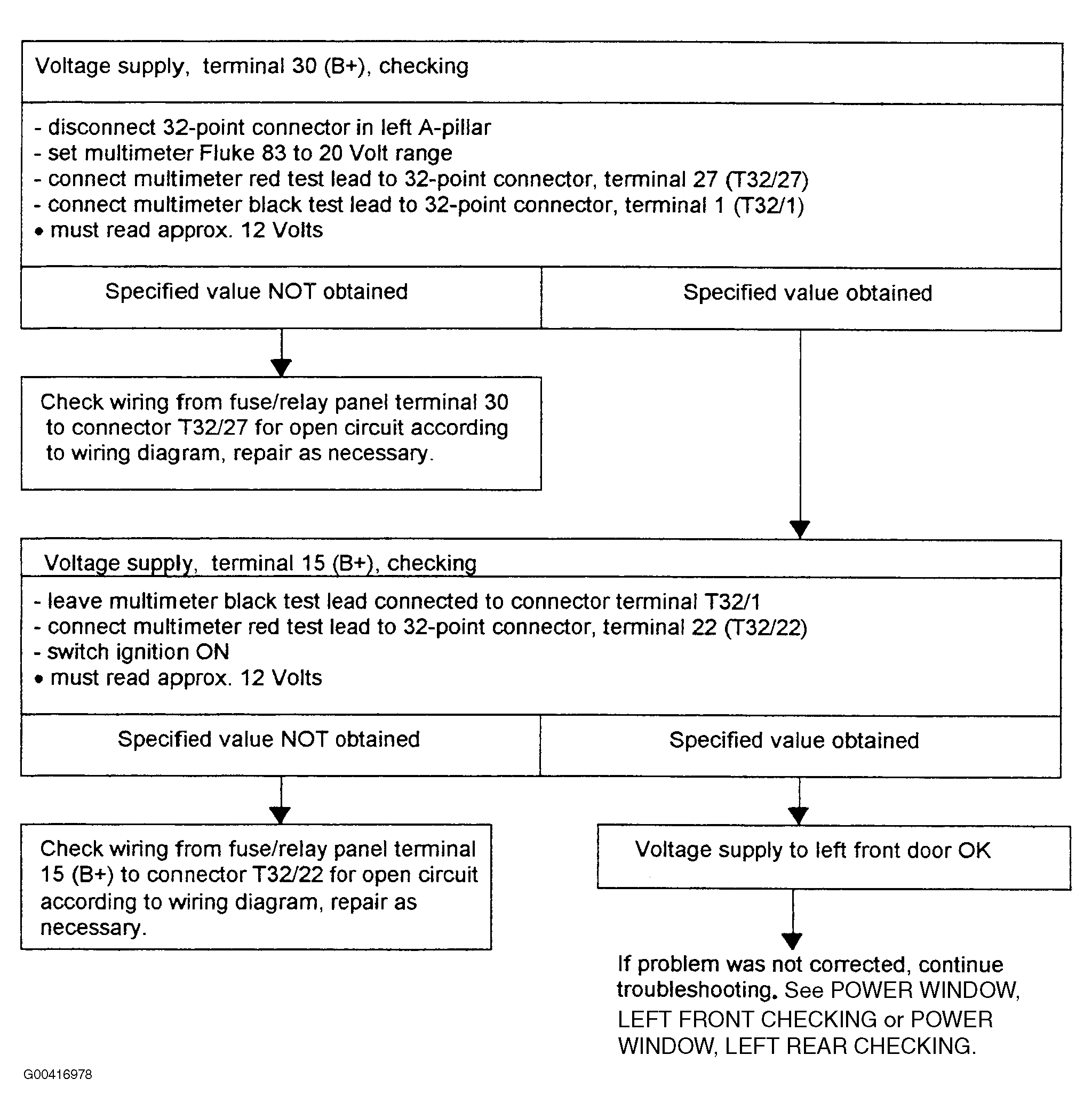

Troubleshooting preparations:
- Switch ignition OFF
- Disconnect 32-point connector in left A-pillar for left side, in right A-pillar for right side.
- Start troubleshooting on left side, continue on right side if necessary.
