Model Identification

Various suspensions options are available on EuroVan. Wheel alignment specifications for this vehicle depend on the group designation of vehicle. Group number along with running gear version installed in vehicle is indicated by the factory code on the vehicle data plate. Vehicle data plate is located on A-pillar next to central electric cover. See Fig 1 . On vehicles with knee padding, vehicle data plate is located under central electric cover.

Group numbers 1-8 exist at this time. Group number identify to which vehicle group a vehicle belongs. The word "CARAVELLE" on the vehicle data plate is an example. Another word can also be printed in this location, e.g. "KOM". Use illustration to aid in locating vehicle group number. See Fig 2 .

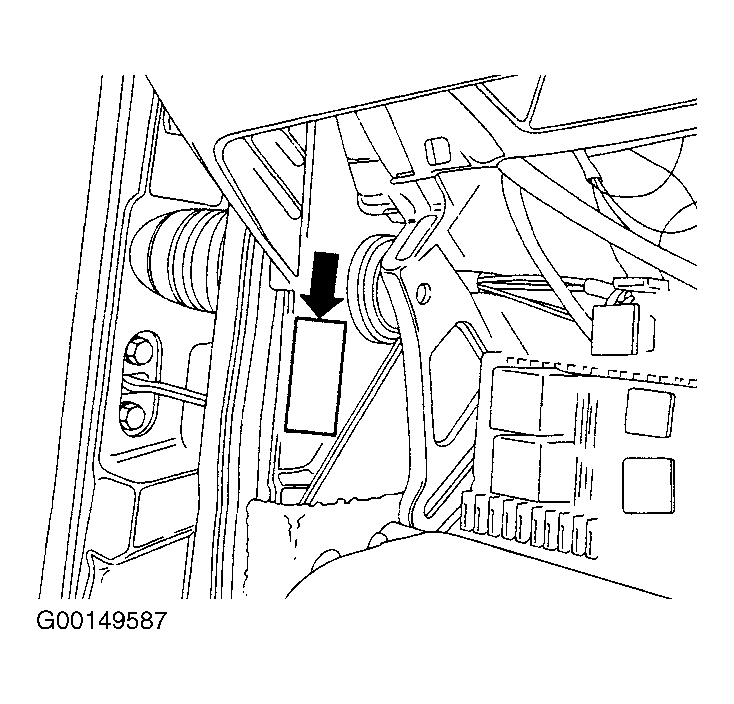

Fig 1: Locating Vehicle Data Plate

Courtesy of VOLKSWAGEN UNITED STATES, INC.

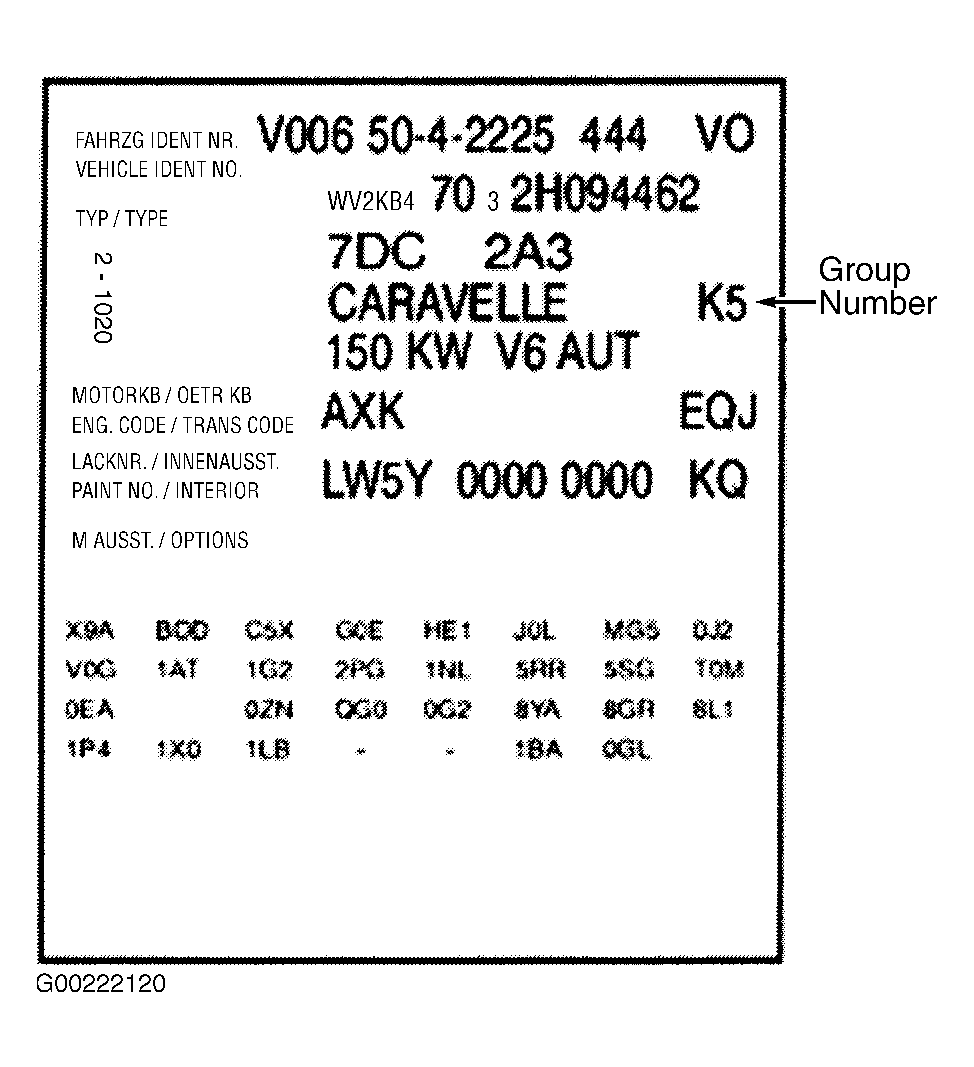

Fig 2: Identifying Vehicle Data Plate (EuroVan)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
