A/C Control Head With Climatronic Control Module Remove/Install

A/C Control Head -E87- With Climatronic Control Module -J255-, Removing And Installing


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition OK
- Disconnect battery Ground (GND) strap
- After reconnecting battery, recode and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual


A/C Control Head -E87-, Climatronic Control Module -J255-, Instrument Panel Interior Temperature Sensor -G56- with Interior Temperature Sensor Fan -V42- are integrated into a non serviceable unit.

Removing

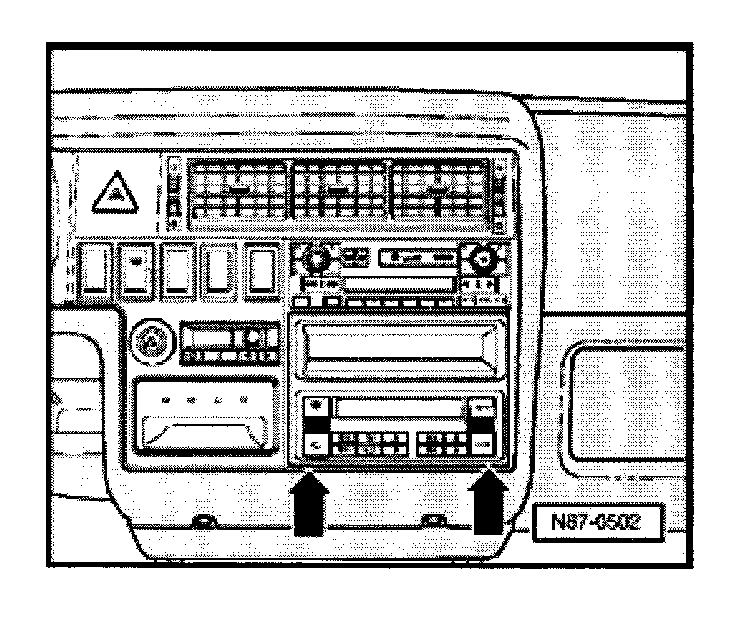

- Remove storage tray and carefully pry out control head trim at -arrows- with a screwdriver.

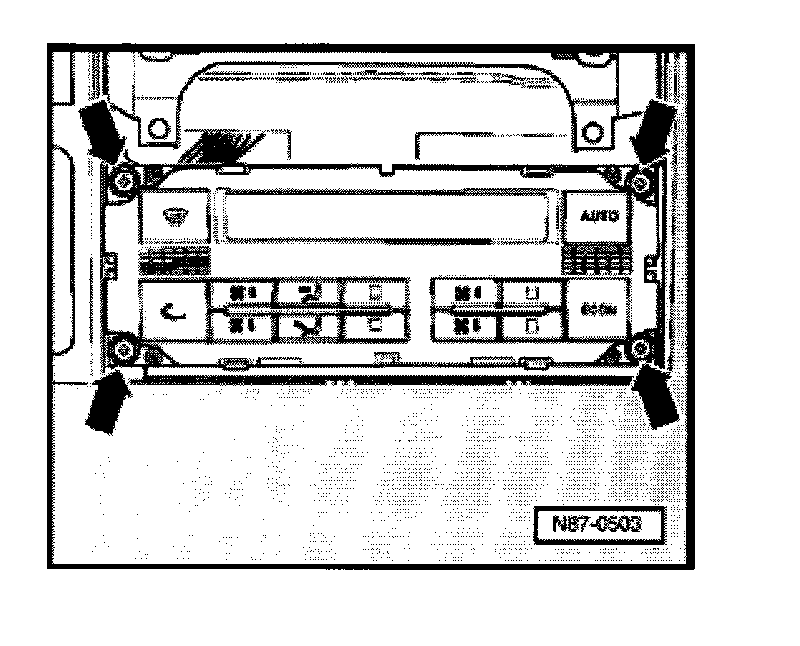

- Remove screws -arrows-.
- Pull out control head from instrument panel.
- Disconnect electrical connections.

Installing
- Installation is in reverse order of removal.
- After installation, code control head according to market and equipment variations.
