Engine Speed Sensor

Crankshaft, Removing And Installing

Sensor Wheel (For Engine RPM) Installing

Threaded Connection Torque

Sensor Wheel Bolt: 10 Nm
- + 1/4 turn (90 °)

Always replace Sensor Wheel Bolt

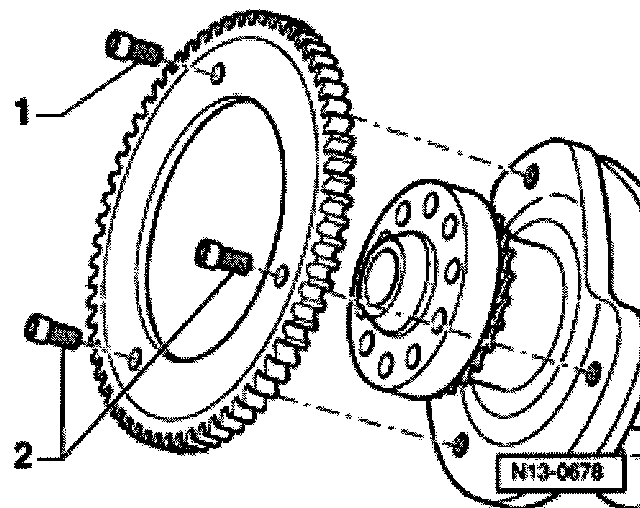

Tightening Order






1. First lightly tighten all new securing bolts by hand.

2. Tighten securing bolt -1- 10 Nm
- + 1/4 rotation (90 °).

3. Now tighten securing bolts -2- 10 Nm
- + 1/4 rotation (90 °).
