Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Camber Adjustment Bolt (a) (1) 44 (60)
Camber Adjustment Nut (b) (1) 81 (110)
Caster Adjustment Nut 118 (160)
Rear Toe Adjustment Nut 118 (160)
Wheel Bolts (2) 125 (170)

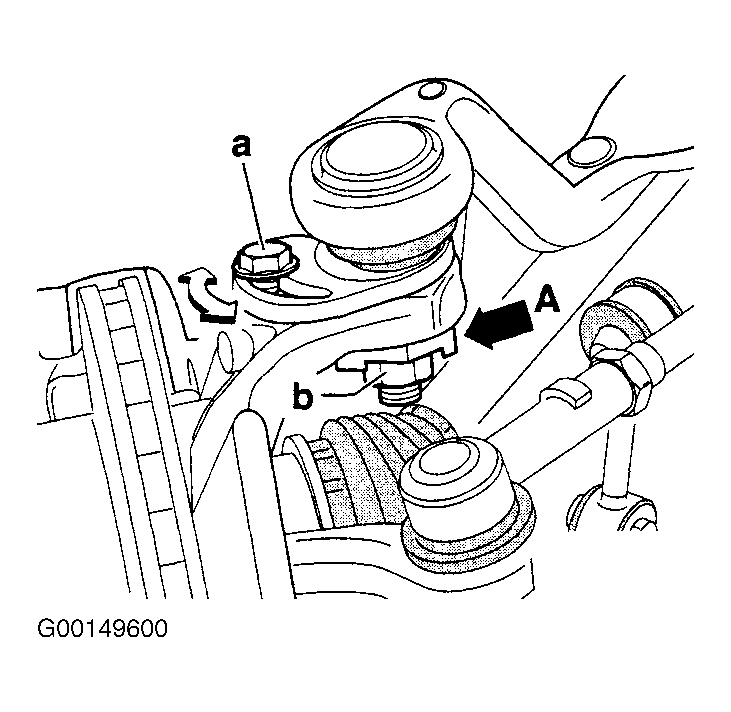

(1) See Figure to identify camber adjustment bolt and nut.
(2) Do NOT interchange 1997-00 wheel bolts with 2001-03 wheel bolts. They are different designs.
