Pinion Shaft, Adjusting: Adjusting

Place two shims (each 1.5 mm thick) -arrow- onto the drive pinion. See Fig 1 .

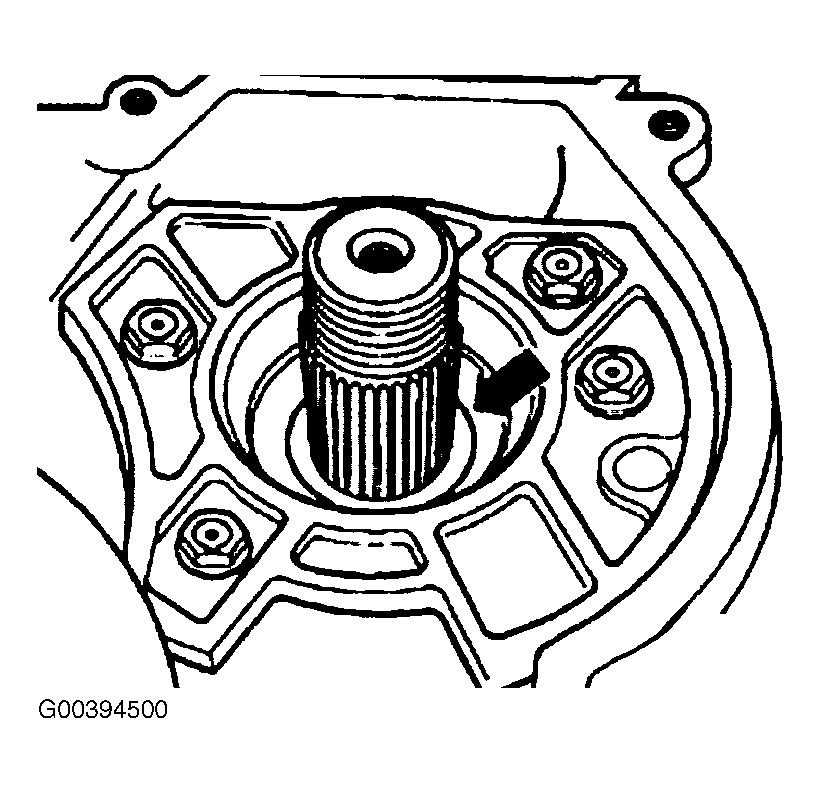

Fig 1: Locating Installation Position Of Drive Pinion Shims

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place output gear with taper roller bearing onto drive pinion and, with parking lock engaged, tighten hex nut (41 mm AF) to 300 Nm.

Insert dial gauge -A- and zero with a preload of 1 mm. Move drive pinion up and down. Read off play at dial gauge and note (example 0.97 mm). See Fig 2 .

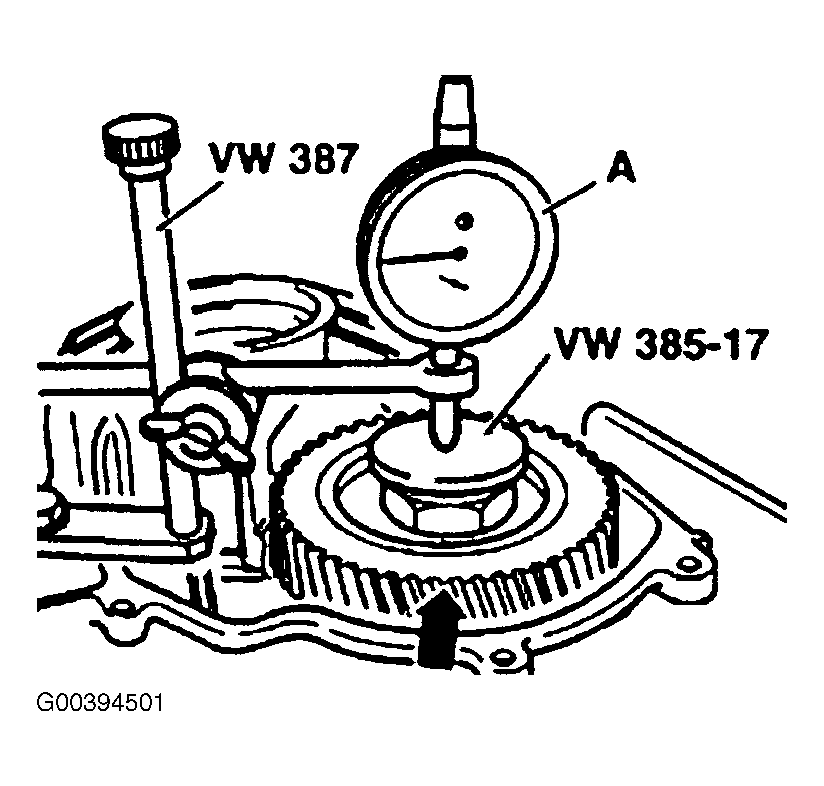

Fig 2: Installing Dial Gauge On Drive Pinion

Courtesy of VOLKSWAGEN UNITED STATES, INC.
